C-CAP

EPCOTS designs and manufactures a range of Marine TouchTable from 32’’ to 55’’ for all types of Marine Applications (navigation, VTS, radar…)

• Navy and Marine Applications
• Ground shelter - Army
• Imaging and Navigation
• Information and Command System
• Control and Communication
• Industrial Process

• High Quality TFT LCD (high contrast ratio and luminance)
• Dimensions:

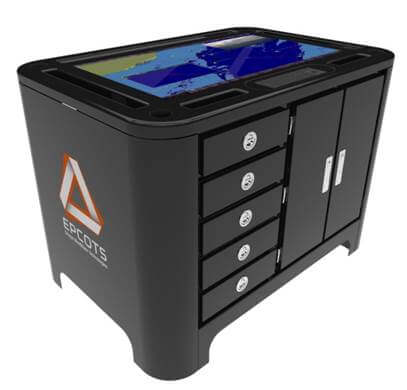

  1740x1190x960 mm (55")

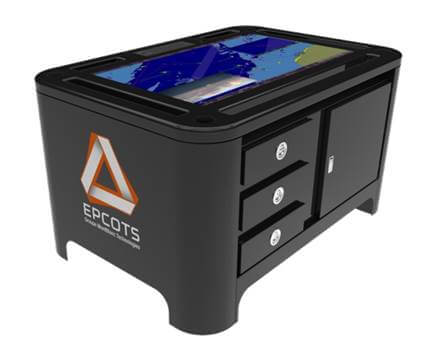

  1500x1060x960 mm (46")

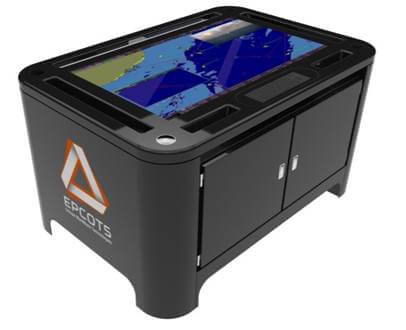

  1400x1000x960 mm (40")

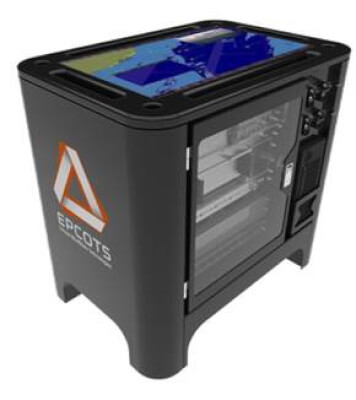

  988x682x960 mm (32")
• Resolution: 1920*1080 (HD), 4K (format : 16/9)
• Touch sensor: Infrared or Projected Capacitive (gloves use compliant), multitouch : up to 100 points
• Typical product availability: 8 to 10 years
• Luminance: up to 1000 cd/m² (Sunlight readability enhancement)
• Viewing angle: 178°/178°
• Dimming, ON/OFF, OSD access on weatherproof dimmable front panel keyboard (Dimming 0-100%, Blackout with automatic disabling of touch sensor)
• Protected against liquid spillage (IP65)
• Color customization, customer logo adding
• Integrated and configurable PC (CPU, GPU…), stockage on HDD, SSD or CF…
• I/O interface configurable: Ethernet, USB, Serial port…
• Power: 115 VAC 60 Hz or 220 VAC 50 Hz
