SR200-X2

Intel® QM170 Core i7-6820EQ NVIDIA GTX950M GPU MIL-STD Rugged HPEC GPGPU System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

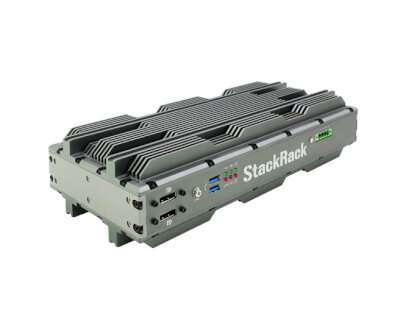

SR200-X2, EBX rugged system is a powerful system that is driven by Intel® 6th generation Skylake CPU and chipset soldering onboard, integrated with Nvidia GPU GTX950M that supports 2 independent DisplayPort. Processor i7-6820EQ plus Intel® QM170 chipset supports clock speed 2.8GHz, up to 3.5GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Apart from computing power, the system is able to survive in harsh environment from -40 to 60°C, and ruggedness for vibration and shock is proven to pass MIL-810G standard. With the combination of high CPU computing power and rich display inputs, SR200-X2 is a perfect portable solution for rugged consoles & workstations, transportation, defense control room to share instant and accurate information on huge screen for in-time solutions.

  • MIL-STD 810G Compliance
  • 6th Generation Intel® Core i7-6820EQ Skylake Processor
  • Up to 32GB DDR4 RAM
  • Onboard uSSD SATAIII up to 64 GB
  • NVIDIA GTX950M Independent Displays by 2 x DP
  • 2 x mPCIe expansion slot (One Co-Layout with mSATA)
  • 2 x Intel® Gigabit Ethernet
  • 4 x USB 3.0, 1 x COM port
  • 9V to 36V DC-in
  • Extended Temperature -40~+60°
