SD-36PR10GS

10G menežovatelný 36- portový ethernetový Switch/Router

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Specifikace Fotogalerie Ke stažení

Základní informace

SDK Systems 10G Managed Ethernet Switch/Router provides high density, high port count Layer 2 switching and Layer 3 routing with 10G uplinks. A total of 36 switchable ports, with 4 x 10G, 8 x 1G (SGMII) and 24 x 1G (Copper 10/100/1000Mbps) ports.
The device targets managed Layer 2 and Layer 3 equipment in SMB, SME, and industrial applications where high port count 1G switching with 10G aggregation/uplinks are required.

36 ports (4x 10GbE; 8x 1GbE [SGMI]; 24x 1GbE)
Extended Temperature Range -40°C to +85°C
Full IP67 water , dust proof, anti-corrosion housing
MIL-STD-810G compliance
Humidity: 5~95%, non-condensing
Vibration: 2.5G, 5Hz~500Hz / XYZ
Shock: 40G, 11ms duration, MIL-STD-810G
EMI: MIL-STD-461F for CE101, RE101
Wide input rage: +9V to +36V DC
136 x 50 x 150 mm ( W x H x D )

Specifikace

Ethernet Switch Engine	Vitesse VSC7448 Ethernet Switch Chipset
Ports	36 Total Switching Ports • 4x 10G (SFI) Ports • 8x 1G (SGMII) Ports • 24x 1G (Copper 10/100/1000Mbps) Ports
Memories	4Gb DDR3 SDRAM 128Mb Serial NOR Flash
Port Type	Gigabit ethernet (10/100/1000 Mbps)
Connectors	MIL-D38999
Layer 2 & Layer 3 Forwarding	IEEE802.1Q switch with 4K VLANs and 32K MAC table entries Push/pop up to 3VLAN tags on ingress and egress RSTP and MSTP support Fully non-blocking wire-speed switching performance for all frame sizes IPv4/IPv6 unicast and multicast Layer 2 switching with up to 32K groups and 1K port masks IPv4/IPv6 unicast and multicast Layer 3 forwarding (routing) with reverse path forwarding (RPF) support IGMPv2, IGMPv3, MLDv1, and MLDv2 support Link aggregation (IEEE 802.3ad) Independent and shared VLAN learning (IVL, SVL) Jumbo frame support
Quality of Service	Four megabytes of integrated shared packet memory Eight QoS classes with a pool of up to 32K queues TCAM-based classification with pat tern matching against Layer 2 through Layer 4 information Dual- rate policers selected by VCAP IS2, eight single- rate priority policers per port, and four single-rate port policers for each port Flexible 4K ingress QoS mappings and 8K egress QoS mappings for VLAN tags and DSCP values Up to 4K egress VLAN tag operations Audio/ video bridging (AVB) with support for time-synchronized, low- latency and video streaming services Priority-based f low control (PFC) (IEEE 802.1Qbb)
Security	Vitesse Content Aware Processor (VCAP™) packet filtering engine using ACLs for ingress and egress packet inspection Storm controllers for flooded broadcast, flooded multicast, and flooded unicast traffic Per-port, per-address registration for copying/redirecting/discarding 32 VCAP single-rate policers
Maximum Bandwidth	80Gbps
Layer 2 Switching Parameters	Packet Buffer: 32Mb MAC Table Size: 32k Layer 2 Multicast Port Masks: 1k Super VCAP blocks: 8 VCAP CLM entries: 4k VCAP LPM entries: 4k/1k (IPv4/IPv6) VCAP IS2 entries: 4k/1k (IPv4/IPv6)
Layer 3 Switching Parameters	Router Legs: 128 IP unicast routes/hosts: 4k/1k (IPv4/IPv6) Next -hop/ ARP table entries: 2k IP multicast groups: 2k/512 Multicast router leg masks: 1k ECMPs: 16
Management Access	Web Interface CLI via RS-232 Software API SMNP
Input Voltage	Wide input rage: +9V to +36V DC with Reverse Polarity Protection
Power Consumption	25W
Dimensions	136 x 50 x 150 mm ( W x H x D )
Weight	5kg
IP Level	Full IP67
Operating temperature	-40°C ~ 85°C
Humidity	5~95%, non-condensing
Vibration	2.5G, 5Hz~500Hz / XYZ
Shock	40G, 11ms duration, MIL-STD-810G
EMI	MIL-STD-461F for CE101, RE101

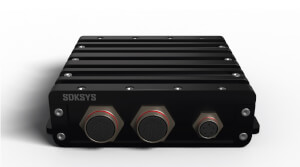

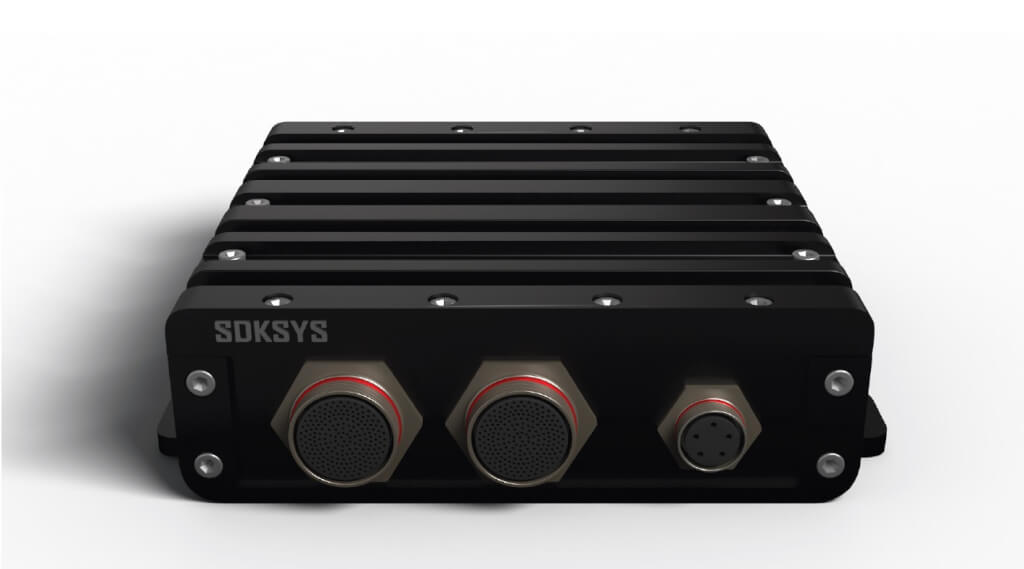

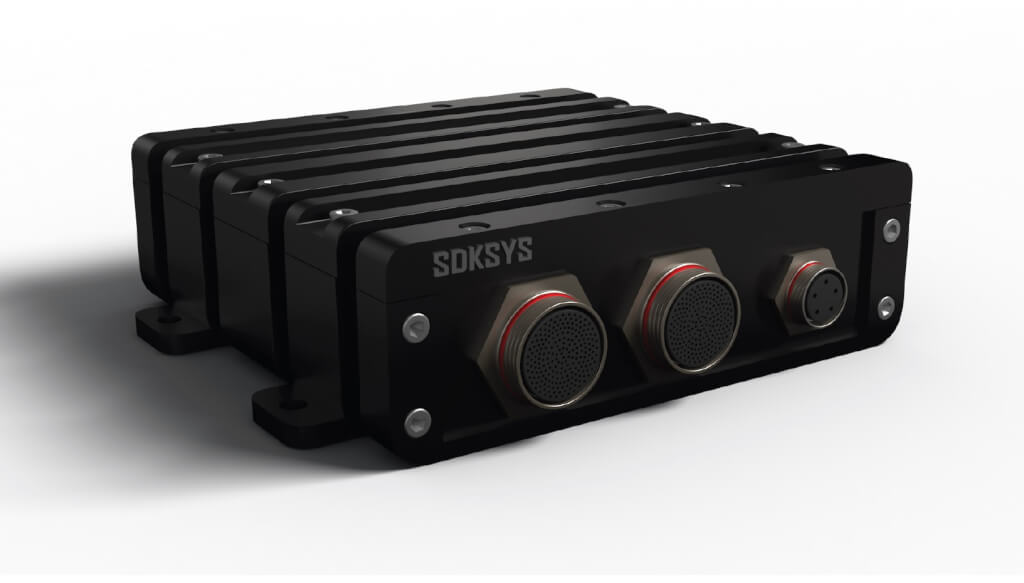

Fotogalerie

Ke stažení

SDK Embedded Systems SD-36PR10GS datasheet.pdf
