Military Rugged 1.5U NAS server s kapacitou až 32TB

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

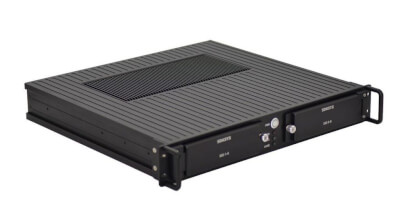

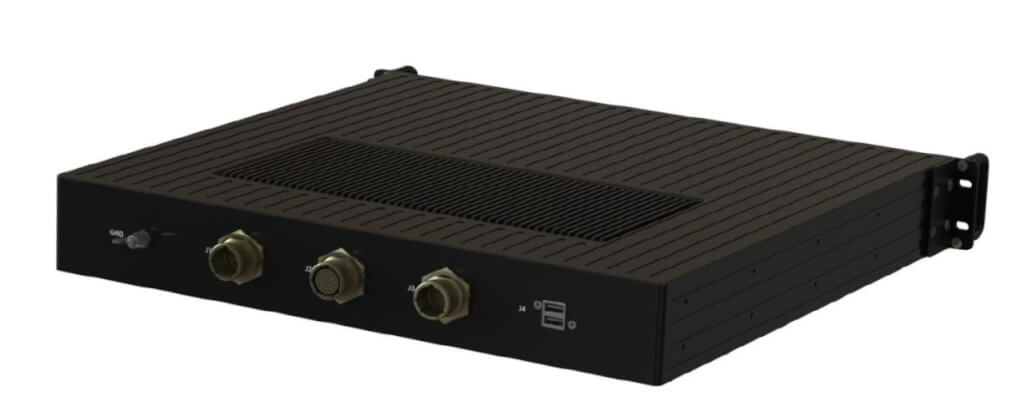

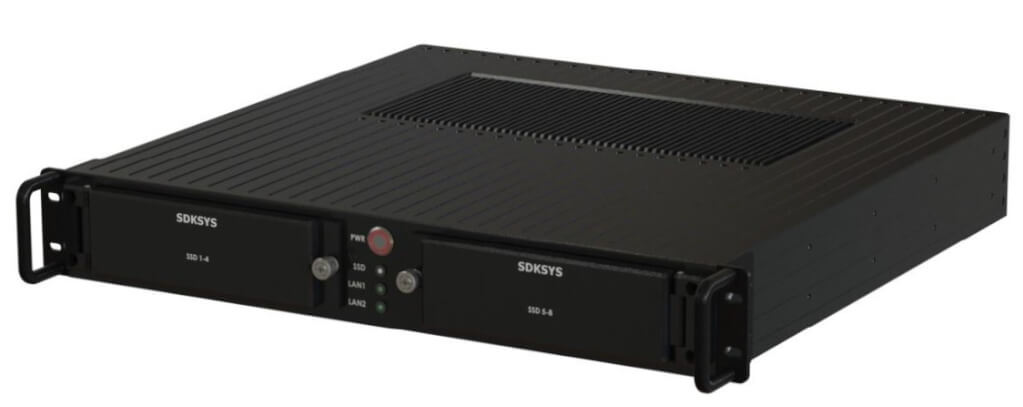

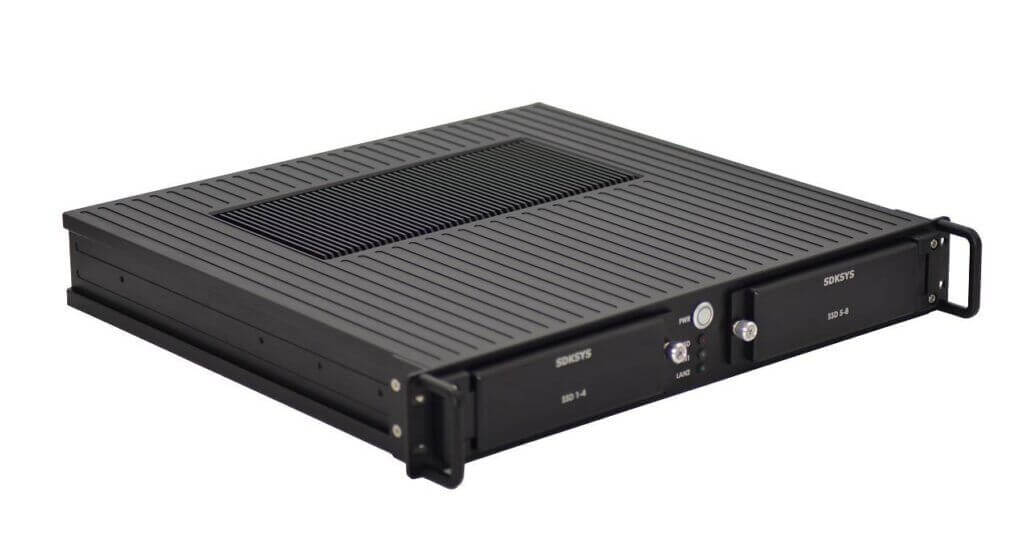

The NP-W9RS-1U is a reliable high capacity Network Attached Storage (NAS) for Rolling Stock and for any application that requires a rugged data storage. The NP-W9RS-1U Rugged Network Attached Storage (NAS) platform  offers flexible data storage and is capable of handling a high number of simultaneous connections without compromizing system performance. Comes with wide operating temperature range, an IP65 ingress protection and a very sturdy enclosure with a MIL circular connectors, making it suitable for harsh environments.

  • Intel® 9th Gen Six Core Xeon®E-2276ME CPU
  • MIL-STD-810G Environmental compliance
  • MIL-STD-461G EMC compliance
  • Full IP65 water dust proof, anti-corrosion housing
  • Up to 8x removable 2.5” SSD with RAID 0,1,5,10
  • Support up to 32TB Storage Capacity
  • Optional: Up to 8x simultaneous connections
  • Pre-installed TrueNAS


OS TrueNAS Core pre-installed
(Support Windows/Linux)
CPU 9th Gen Intel® Xeon® E-2276ME 2.80 GHz
Chipset SoC Integrated
Memory DDR4-2666MHz, up to 32GB
Storage 8 x 2.5” Removable SSD
128GB NVMe for OS
RAID RAID 0,1,5,10 support
I/O 2 x USB 3.0, 2x USB2.0
2 x RS232/ RS422/485
D38999 Connectors:
2 x GbE LAN
1 x HDMI Port
1 x DVI Port (Optional)
Optional Digital I/O (4-in/4-out); TPM 2.0
I/O for Power Input 1 x DC 18~36V Input
MIL-STD-704F, MIL-STD-1275 Compliance
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 80°C
Operating Humidity 5% to 95% (Non Condensing)
IP Level Full - IP65
Reliability MIL-STD-810G Compliance
EMI MIL-STD-461G Compliance
Dimensions 482.6 x 67.8 x 420mm ( W x H x D )
Weight 7.0 kg basic configurartion
