NISE 3140P2/ 3140P2E

Intel® Core™ 2 Duo Fanless System with 2 x Expansion Slots


Základní informace

  • Support Intel® Core™ 2 Duo / Celeron® processor
  • Intel® GM45 chipsets
  • Dual Intel® 82574L Gigabit Ethernet ports
  • Dual VGA or VGA/DVI Independent Display
  • 3 x RS232 and 1 x RS232/422/485 with Auto Direction Control
  • One external locked CF socket
  • On-board DC to DC power design to support 16V to 30V DC power input
  • Support ATX power mode and PXE / WOL / LAN Teaming


Main Board NISB 3140 Support Intel® Core™ 2 Duo Processor P8400 (3M Cache, 2.26 GHz, 1066 MHz FSB) Support Intel® Celeron® Processor 575 (1M Cache, 2.00 GHz, 667 MHz FSB)Support Intel® Celeron® Processor 575 (1M Cache, 2.00 GHz, 667 MHz FSB)
Main Memory 2 x 240-pin DIMM, up to 4GB DDR3 800/1066 MHz SDRAM, unbuffered and non-ECC
Chipset Intel® GM45 Graphics and Memory Controller Hub Featuring the Mobile Intel® Graphics Media Accelerator 4500MHD Intel® 82801IBM I/O Controller Hub

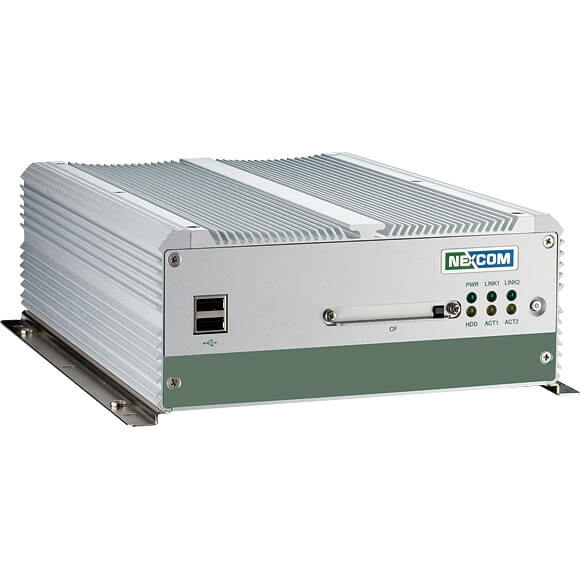

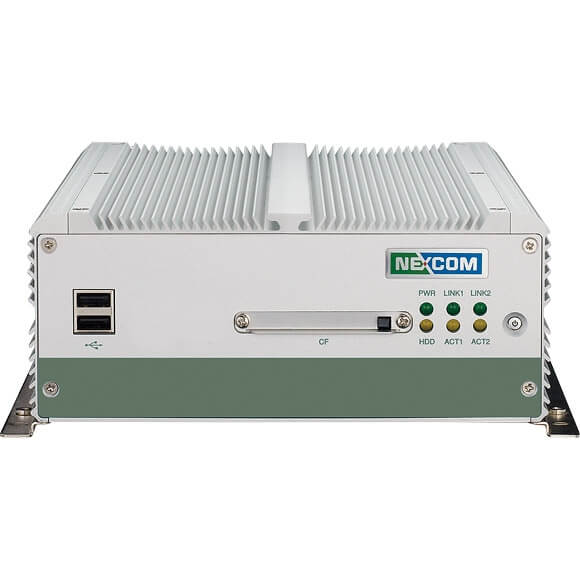

I/O Interface-Front ATX power on/off switch HDD Access/Power status LEDs 1 x Front Access CF Card Socket 2 x USB2.0 ports

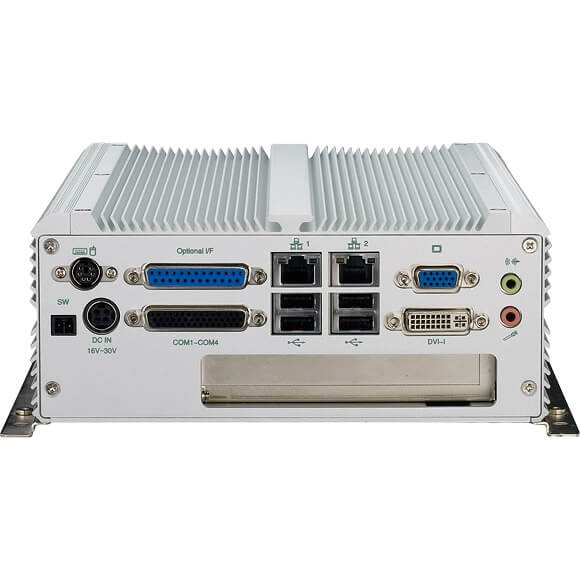

I/O Interface-Rear 2-pin Remote Power on/off switch 16 ~ 30V DC input 1 x PS/2 for Keyboard/Mouse 1 x DB25 Parallel Port (Optional GPIO or LVDS interface) 1 x DB44 Serial Port for 4x RS232 (COM2: RS232/422/485 with Auto Flow Control) 2 x GbE LAN ports 4 x USB2.0 ports 1 x DB15 VGA port 1 x DVI-I Port (DVI-D + VGA) 1 x Speaker-out and Mic-in
Device 1 x 2.5" SATA HDD drive bay One external locked CF card socket Optional power adapter
Expansion Two PCI expansion (NISE3140P2 only) One PCI and one PCIe x1 expansion (NISE3140P2E only) Add-on card length support: Max. 169mm x 1 and 240mm x 1 (with 2.5” HDD installed); Max. 240mm x 2 (without 2.5” HDD installed)
Power Requirements ATX power mode On-board DC to DC power support from 16V to 30V DC
Dimensions 195mm (W) x 268 mm (D) x 101mm (H) (7.7" x 10.5" x 3.98")
Construction Aluminum Chassis with fanless design
Environment Operating temperature: Ambient with air flow: -5°C ~ - 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 10% to 93% (Non-Condensing)
Certifications CE approval FCC Class B
