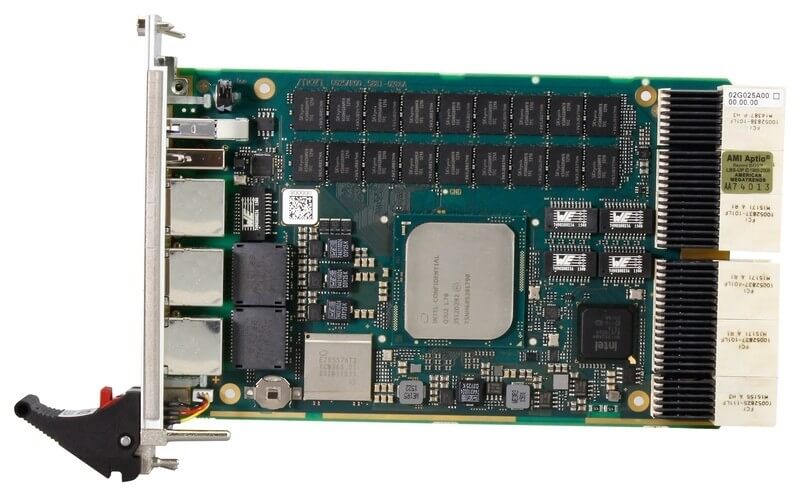

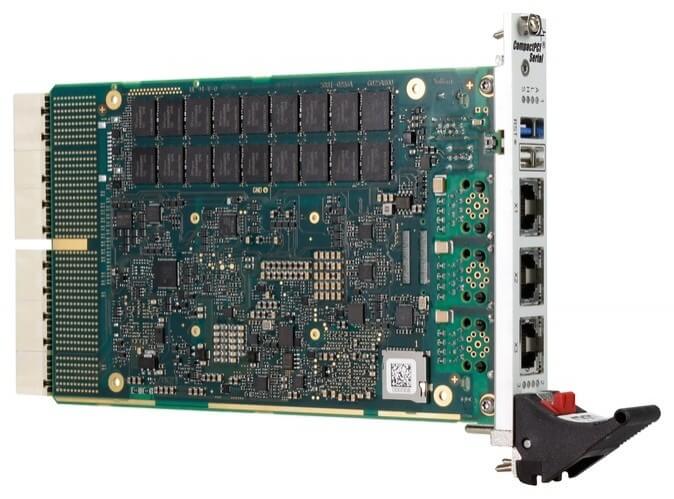

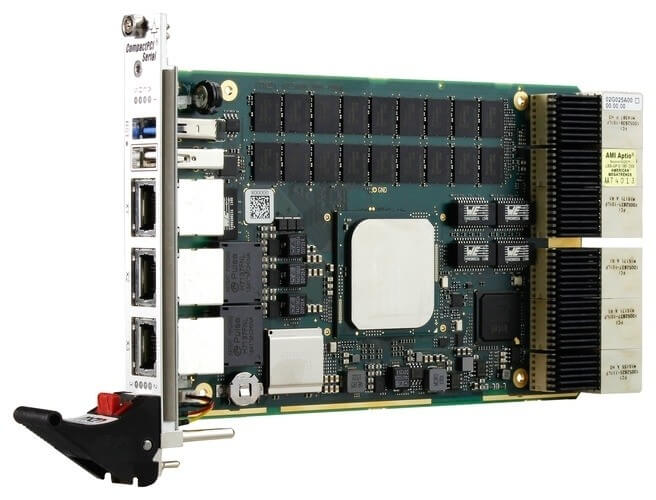

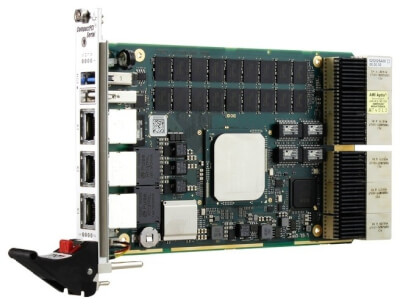

G25A - 3U Compact PCI Serial Intel Xeon D CPU Board

G25A je 4HP/3U CPCI Serial procesorová karta s procesorem Intel Xeon D-1500, podporující 10 Gigabit Ethernet, USB 3.0, SATA, PCI Express a Gigabit Ethernet přes zadní I/O rozhraní. The G25A is a 4HP/3U CPCI Serial CPU card with an Intel Xeon D-1500 pro

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel Xeon D-1500 (Broadwell DE)
  • Up to 16 cores
  • Up to 32 GB DDR4 DRAM soldered, ECC
  • 2 10 Gb Ethernet, 1 Gb Ethernet, 1 USB 3.0, 1 RS232 for configuration
  • 4 HP system master and peripheral slot
  • PICMG CPCI-S.0 CompactPCI Serial
  • microSD card slot
  • Standard rear I/O: 28 PCIe lanes, 2 USB 3.0, 6 SATA, 4 Gb Ethernet
  • Built-in Intel VT hardware virtualization
  • Trusted Platform Module (TPM)

Blokové schéma

Specifikace

CPU
  • The following CPU types are available:
    • Intel Xeon D-1539, 8 Cores
    • Intel Xeon D-1577, 16 Cores
    • Intel Pentium D-1519, Quad Core
  • Intel Virtualization Technology (Intel VT)
    • VT-d
    • VT-x
  • Intel Turbo Boost Technology
  • Intel Hyper-Threading Technology
Security
Trusted platform module (TPM 2.0)
Memory
  • System Memory
    • Soldered DDR4, ECC support
    • 8 GB
    • 16 GB
    • 32 GB
  • Boot Flash
    • 16 MB
Mass Storage
The following mass storage device can be assembled:
  • microSD card
Front Interfaces
  • USB
    • One Series A connector, USB 3.0
    • One configuration port implemented as a USB 2.0 device interface
  • Ethernet
    • Two RJ45 connectors, 10GBASE-T, or
    • Two 8-pin M12 connectors, X-coded, 10GBASE-T
    • One RJ45 connector, 1000BASE-T, or
    • One 8-pin M12 connector, X-coded, 1000BASE-T
    • Two link and activity LEDs per Ethernet channel
  • Front-panel LED for board status
  • Hot-plug LED
  • Reset button
Rear Interfaces
  • SATA
    • Six channels, SATA Revision 3.x, RAID level 0/1/5/10 support
  • USB
    • Two channels, USB 3.0
  • Ethernet
    • Four channels, 1000BASE-T
  • PCI Express
    • Four x1 links, PCIe 2.x
    • Two x4 links, PCIe 3.x
    • Two x8 links, PCIe 3.x
Supervision and Control
  • Board controller
  • Watchdog timer
  • Temperature measurement
  • Real-time clock with supercapacitor or battery backup
Backplane Standard
  • Compliance with CompactPCI Serial PICMG CPCI-S.0 Specification
  • System or peripheral slot
Electrical Specifications
  • Supply voltages
    • +12V (9.5..15.5V), 6 A nominal, 8 A maximum (depending on CPU and board configuration)
    • +5V (-5%/+5%) standby voltage optional
Mechanical Specifications
  • Dimensions
    • 3U, 4 HP, or
    • 3U, 8 HP
  • Weight: tbd (model tbd)
Environmental Specifications
  • Temperature range (operation)
    • EN 50155 class T1, T2, T3 or TX
    • Airflow 2.5 m/s
    • Depends on system configuration (CPU, hard disk, heat sink...)
  • Temperature range (storage): -40°C to +85°C
  • Cooling concept
    • Air-cooled
    • Conduction-cooled in MEN CCA frame
  • Humidity: EN 60068-2-30, EN 50155
  • Altitude: -300 m to +2000 m
  • Shock: EN 50155 cat 1 class b
  • Vibration: EN 50155 cat 1 class b
Reliability
MTBF: tbd h @ 40°C according to IEC/TR 62380 (RDF2000) (model tbd)
Safety
  • Flammability
    • UL 94V-0
  • Electrical Safety
    • EN 62368-1 (former EN 60950-1)
EMC
  • EN 55022 class B, EN 50121-3-2 (radiated and conducted emission)
  • EN 55024, EN 50121-3-2 (immunity)
Software Support
  • Windows
  • Linux
BIOS
AMI Aptio
