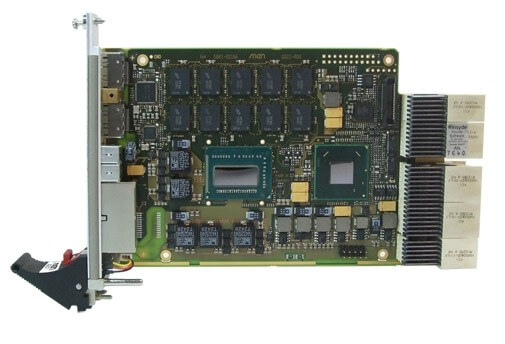

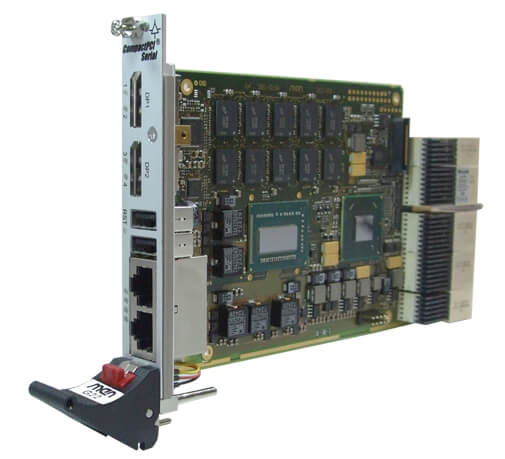

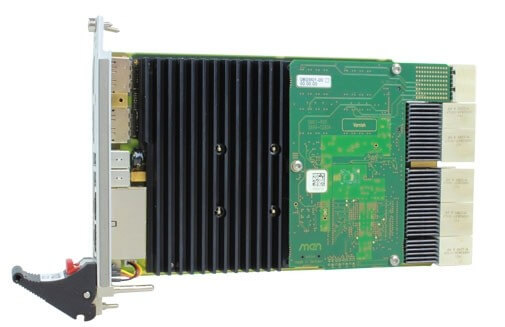

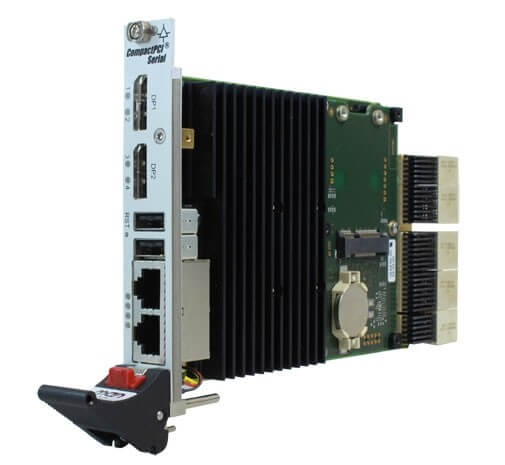

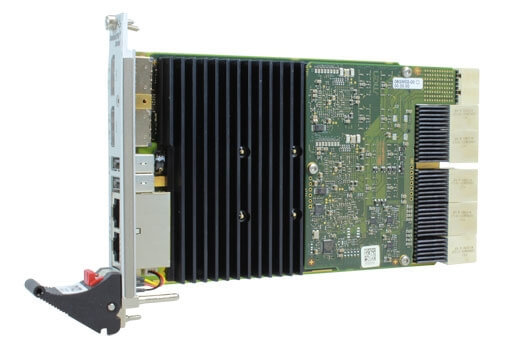

G22 - Intel Core i7 CPU Board

3U CompactPCI Serial The G22 is a 4HP/3U CPCI Serial CPU card with a 3rd generation Intel Core i7 processor, supporting USB, SATA, PCI Express and Gigabit Ethernet rear I/O interfaces.

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

Poptat řešení

Základní informace Specifikace Volitelné Blokové schéma Fotogalerie Ke stažení

Základní informace

Main Features

Intel Core i7, 3rd generation
Quad-core 64-bit processor
4 HP system master and peripheral slot
PICMG CPCI-S.0 CompactPCI Serial
4 or 8 GB DDR3 DRAM soldered, ECC
mSATA and microSD card slots
Standard front I/O: 2 DisplayPorts, 2 Gb Ethernet, 2USB 2.0
Standard rear I/O: 7 PCIe, 4 USB 2.0, 4 USB 3.0, 5 SATA, DisplayPort/HDMI
Rear I/O via mezzanine board: up to 8 Gigabit Ethernet
Intel Turbo Boost, Hyper-Threading, AMT 8.0
Open CL support

Specifikace

CPU

Intel Core i7-3615QE
- 2.3 GHz processor core frequency
- 3.3 GHz maximum turbo frequency
- 1066 MHz system bus frequency
Chipset
- QM77 Platform Controller Hub (PCH)

Board Management Controller

Power supervision and watchdog
Temperature measurement
2 board status LEDs
2 user LEDs
Reset button

Memory

6 MB last level cache integrated in i7 processor
Up to 8 GB SDRAM system memory
- Soldered
- DDR3 with ECC support
- Up to 1066 MHz memory bus frequency
64 Mbits boot Flash
Serial EEPROM 2 KB for factory settings
mSATA disk slot
- Connected via one SATA port from the PCH
Serial GPIO (SGPIO)
- One interface via CPCI-S.0 rear connector
- Compliant with SFF 8485 specification
One microSD card slot
- Via USB

Mass Storage

Serial ATA (SATA)

Five channels via rear I/O (six if the link to the mSATA disk is not required, can be switched in BIOS)
Four ports with transfer rates up to 3 Gbit/s (SATA Revision 2.x)
Two ports with transfer rates up to 6 Gbit/s (SATA Revision 3.x)
RAID level 0/1/5/10 support
Hot-plug together with G501

Graphics

Integrated in QM77 chipset
- Maximum resolution: up to 2560x1600
Two DisplayPort connectors at front panel
- Optionally two DVI/HDMI ports via external adapter
One DisplayPort at CPCI-S.0 rear connector
- Optionally SDVO or DVI/HDMI port

I/O

USB 2.0
- Two USB 2.0 host ports via Series A connector at front panel
- Up to eight USB 2.0 host ports via CPCI-S.0 rear connector (depending on the number of used USB 3.0 ports)
- Two USB 2.0 host ports for connection of the rear I/O card
- EHCI implementation
- Data rates up to 480 Mbit/s
USB 3.0
- Four USB 3.0 host ports via CPCI-S.0 rear connector
- Data rate up to 5 Gbit/s
Ethernet
- Two 10/100/1000Base-T Ethernet channels at the front
- RJ45 connectors at front panel
- Ethernet controllers are connected by two x1 PCIe links
- Two onboard LEDs to signal LAN link, activity status and connection speed

Front Connections

Two DisplayPort
Two USB 2.0 (Series A)
Two Ethernet (RJ45)

Rear I/O

5 SATA (6 switchable in BIOS)
1 DisplayPort
4 USB 2.0
4 USB 3.0
5 PCI Express x1 links
2 PEG x8 links
SGPIO

PCI Express

Two x8 PCI Express graphics links via CPCI-S.0 rear connector
- Data rate 985 MB/s (8 Gbit/s per lane)
Five x1 PCIe links via CPCI-S.0 rear connector
- Data rate 500 MB/s (5 Gbit/s per lane)
Two x1 PCIe links to connect local 1000Base-T Ethernet controllers
- Data rate 250 MB/s (2.5 Gbit/s per lane)
One x1 PCIe link via for connection of the rear I/O card
- Data rate 500 MB/s (5 Gbit/s per lane)

Miscellaneous

Real-time clock with supercapacitor backup, battery-buffered

CompactPCI Serial

Compliance with CompactPCI Serial PICMG CPCI-S.0 Specification
System or peripheral slot

Electrical Specifications

Supply voltage/power consumption:

+12V (9..16V), 4 A nominal, 5.8 A maximum
+5V (-5%/+5%) standby voltage optional

Mechanical Specifications

Dimensions: conforming to CompactPCI Serial specification for 3U boards
Front panel: 4HP with ejector
Weight:
- 208 g (w/o heat sink)
- 398 g (with heat sink and mSATA adapter)

Environmental Specifications

Temperature range (operation):
- Depends on system configuration (CPU, hard disk, heat sink...)
- Maximum: +85°C
- Minimum: -40°C (all processors)
- Airflow: min. 1.5 m/s, typical power dissipation tbd, with Windows XP operating system, 1 Gb Ethernet, without CPU clock reduction
Temperature range (storage): -40..+85°C
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to + 3,000 m
Shock: 50 m/s², 30 ms
Vibration (function): 1 m/s², 5 Hz - 150 Hz
Vibration (lifetime): 7.9 m/s², 5 Hz - 150 Hz
Conformal coating on request

MTBF

455,629 h @ 40°C according to IEC/TR 62380 (RDF 2000)

Safety

Flammability
- PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
Electrical Safety
- Insulation measurement test according to EN 50155 (12.2.9.1)
- Voltage withstand test according to EN 50155 (12.2.9.2)
- Information technology equipment test according to EN 60950

EMC Conformity

EN 55022 (radio disturbance)
IEC 61000-4-2 (ESD)
IEC 61000-4-3 (electromagnetic field immunity)
IEC 61000-4-4 (burst)
IEC 61000-4-5 (surge)
IEC 61000-4-6 (conducted disturbances)

BIOS

InsydeH2O UEFI Framework

Intel Active Management Technology

Out of Band (OOB) Access
- Power off Access
- Independent of OS status
- Power status control
- Keyboard-Video-Mouse (KVM) Viewer (VNC-compatible)
- IDE-Redirect
- Serial-over-LAN
Manageability Engine in Chipset
Network Filters in Chipset
Dedicated Flash Storage Area
