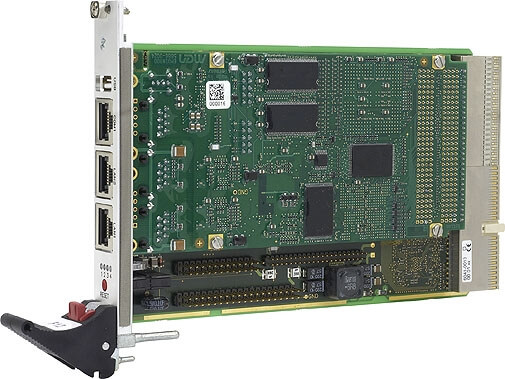

F12N - PowerPC MPC5200B CPU Board (EOL)

3U CompactPCI Equipped with the MPC5200B PowerPC, the F12N single-board computer is a versatile 3U Eurocard CompactPCI board that operates at up to 400 MHz and 700 MIPS.

Základní informace Specifikace Volitelné Blokové schéma Fotogalerie Ke stažení

Základní informace




Main Features

  • 32-bit/33-MHz cPCI system slot, 4 HP
  • MPC5200B / 384 MHz
  • FPGA 18,752 LEs (approx. 225,000 gates)
  • Up to 256 MB onboard DDR SDRAM
  • Up to 8 MB boot Flash, NAND Flash
  • 2 MB SRAM, 16 MB graphics memory
  • Dual Fast Ethernet, COM, USB (front)
  • Dual CAN bus controller
  • FPGA for user-defined I/O functions
  • MENMON BIOS for PowerPC cards
  • -40 to +85C with qualified components

Produkt se již nevyrábí (EOL) -  pro jeho náhradu nás neváhejte kontaktovat


Specifikace

CPU
PowerPC
  • MPC5200B
  • Up to 400MHz
Memory
  • 2x16KB L1 data and instruction cache integrated in MPC5200
  • Up to 256MB SDRAM system memory
    • Soldered
    • DDR
    • 64MHz memory bus frequency
  • Up to 1GB soldered NAND Flash (and more), FPGA-controlled
  • 16MB additional SDRAM, FPGA-controlled, e.g. for video data and NAND Flash firmware
  • Up to 8MB boot Flash
  • 2MB GoldCap-backed SRAM, or: 128KB non-volatile FRAM
  • Serial EEPROM 8kbits for factory settings
Mass Storage
  • Parallel IDE (PATA)
    • One IDE port via 44-pin onboard connector
    • FPGA-controlled
    • PIO mode 0 support
  • Up to 1GB soldered ATA NAND Flash (and more), FPGA-controlled
I/O
  • USB
    • One USB 1.1 port
    • Series A connector at front panel
    • OHCI implementation
    • Data rates up to 12Mbit/s
  • Ethernet
    • Two 10/100Base-T Ethernet channels
    • One channel FPGA-controlled
    • Two RJ45 or one D-Sub connector at front panel
  • One RS232 UART (COM1)
    • RJ45 or D-Sub connector at front panel
    • Data rates up to 115.2kbit/s
    • 512-byte transmit/receive buffer
    • Handshake lines: CTS, RTS
  • One UART (COM10)
    • Accessible via I/O connector
    • Physical interface at front panel using SA-Adapter via 10-pin ribbon cable on I/O connector
    • RS232..RS485, isolated or not: for free use in system (e. g. cable to front)
    • Data rates up to 115.2kbit/s
    • 16-byte transmit/receive buffer
    • Handshake lines: CTS, RTS; DCD, DSR, DTR; RI
  • CAN bus
    • Two CAN bus channels
    • 2.0 A/B CAN protocol
    • Data rates up to 1 Mbit/s
    • Connection via onboard connectors
    • External transceivers using SA-Adapters
  • GPIO
    • 36 GPIO lines
    • FPGA-controlled
    • Connection via onboard I/O connector
  • Further I/O depending on FPGA configuration
Front Connections (Standard)
  • One USB 1.1 (Series A)
  • Two Ethernet (RJ45)
  • One RS232 UART (RJ45)
FPGA
Miscellaneous
  • Real-time clock with GoldCap backup
  • Power supervision and watchdog
  • Reset button, GPIO-controlled
  • Three user LEDs, GPIO-controlled; 1 FPGA power status LED
CompactPCI Bus
  • Compliance with CompactPCI Core Specification PICMG 2.0 R3.0
  • System slot
  • 32-bit/32-MHz PCI-to-PCI bridge
  • V(I/O): +3.3V or +5V (Universal Board)
Electrical Specifications
  • Supply voltage/power consumption, CompactPCI standard version:
    • +5V (-3%/+5%), 10mA max.
    • +3.3V (-3%/+5%), 1A typ.
  • Supply voltage/power consumption, stand-alone version:
    • +5V (-3%/+5%), 800mA typ.
    • Uses 5V only
  • MTBF: 277,234h @ 40°C according to IEC/TR 62380 (RDF 2000)
Mechanical Specifications
  • Dimensions: conforming to CompactPCI specification for 3U boards
  • Weight: 250g
Environmental Specifications
  • Temperature range (operation):
    • -40..+85°C (qualified components)
    • Airflow: min. 10m³/h
  • Temperature range (storage): -40..+85°C
  • Relative humidity (operation): max. 95% non-condensing
  • Relative humidity (storage): max. 95% non-condensing
  • Altitude: -300m to + 3,000m
  • Shock: 15g/11ms
  • Bump: 10g/16ms
  • Vibration (sinusoidal): 2g/10..150Hz
  • Conformal coating on request
Safety
PCB manufactured with a flammability rating of 94V-0 by UL recognized manufacturers
EMC
Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst)
BIOS
MENMON
Software Support

Volitelné

CPU
MPC5200B, 384 MHz
Memory
  • System RAM
    • 32 MB, 64 MB, 128 MB or 256 MB
  • NAND Flash
    • 0 MB up to maximum available
  • Boot Flash
    • 2 MB, 4 MB or 8 MB
  • Additional SDRAM
    • 0 MB or 16 MB
  • SRAM
    • 0 MB or 2 MB
  • 128 KB non-volatile FRAM instead of SRAM
I/O
  • Up to 8 additional I/O functions through SA-Adapters
    • Mostly implemented in onboard FPGA
    • RS232, RS422/485, binary I/O, keyboard/mouse, CAN...
    • One-piece 3U front panels for different SA-Adapter combinations
  • Front connections
    • D-Sub connectors for Ethernet and COM/USB
  • Second Ethernet channel at front through FPGA
Busless
Also available as busless version (with external 5V supply)
Cooling Concept
Also available with conduction cooling in MEN CCA frame
Some of these options may only be available for large volumes.
Please ask our sales staff for more information.

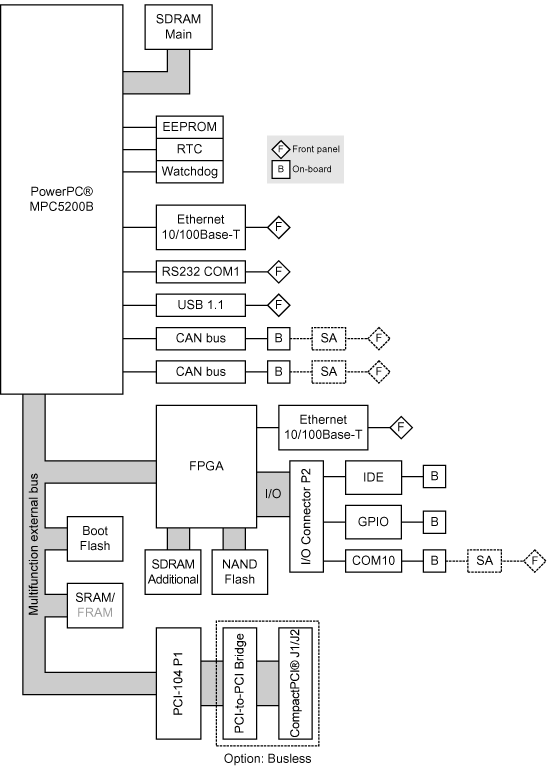

Blokové schéma
