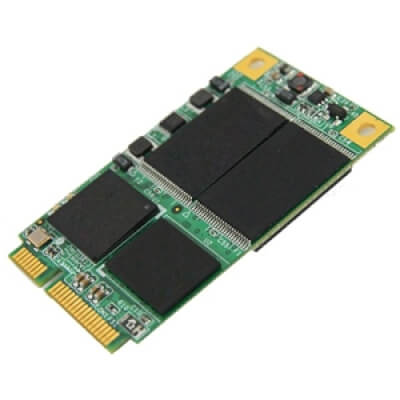

EverGreen mSATA
Innodisk’s EverGreen mSATA is designed in a standard mini PCIe form factor with a SATA interface. This unique combination provides fast data transfer rate performance for files up to 128KB and allows for effective integration in small form factor applicat
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Features:
•S.M.A.R.T / iSMART disk health monitoring tool
•Excellent data transfer speed
•MLC-based flash with L2 Architecture
•10 times longer lifespan than traditional MLC solution
Benefits:
The Innodisk EverGreen mSATA provides manufacturers with a cost-effective MLC NAND flash replacement solution for hard disk drives (HDDs).
•Enables personal computer design to be smaller and more compact
•Reduces operation system boot time
•Consumes less power than an HDD
•Can be configured as a boot device or data storage device
Specifikace
| Model Name | EverGreen mSATA |
| Interface | SATA II 3.0Gb/s |
| Type | Standard |
| Flash Type | MLC |
| Pin Definition | mSATA |
| Capacity | 8GB~128GB |
| Max. Channels | 8 |
| Sequential R/W (MB/sec, max.) | 140/70 |
| Max. Power consumption | 1.82W (3.3V x 550mA) |
| Thermal Sensor | N |
| External DRAM Buffer | Y |
| H/W Write Protect | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Conformal Coating | N |
| Dimension (WxLxH/mm) | 29.8 x 50.8 x 3.5 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; |
| Extended Grade: -20°C ~ +85°C |
