GVD-126

10.4" XGA extreme display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

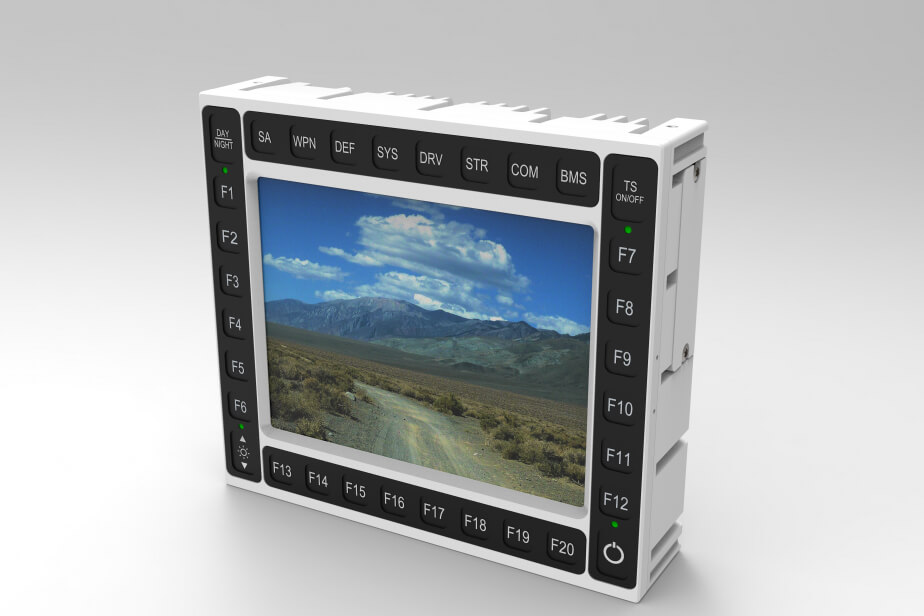

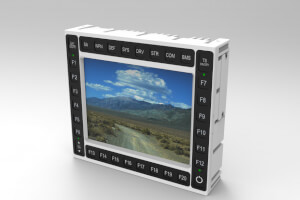

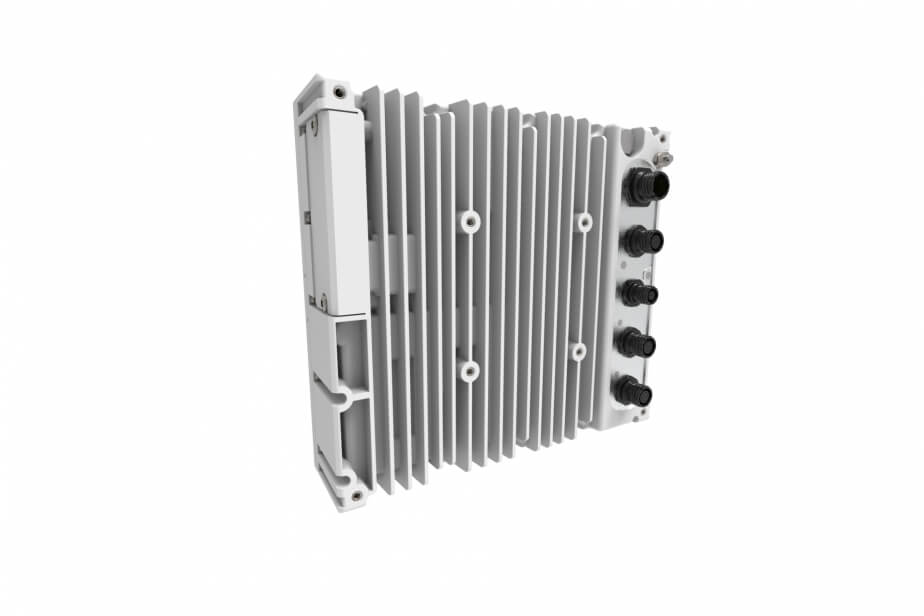

The GVD-126 is a 10.4" XGA extreme display

  • Low weight yet extremely rugged design
  • Mission-critical operations for vehicle applications

The GVD-126 GVA video display combines a rugged 10-inch touchscreen with real-time video imaging to provide a high performance visualization display in a compact footprint. The
GVD-126 display is compliant with the Generic Vehicular Architecture (GVA) and optimized for SWaP-C and modular open architecture, making this display ideal for vehicle-mounted C4ISR applications.

The GVD-126 display delivers the latest proven technologies, such as a rugged analog-resistive, low-reflection touchscreen, and real-time video stream decoding for tactical network architectures. These features are packaged to perform while operating in harsh environments.

The GVD-126 unit connects to a variety of network stream, analog video, and data sources to deliver enhanced situational awareness. For a smart-display configuration with an open-architecture CPU, ScioTeq also offers the SmartView SV-126 display.
The SV-126 smart display includes expansion slots based on open industry standards. This modularity allows customized IO configurations and dedicated hardware controllers.

Specifikace

Panel size 10.4" diagonal, 4:3 Aspect ratio
Resolution 1024 x 768 (XGA)
Color depth 6 bits/color
8 bits/color with patented dithering algorithm
Contrast ratio 900:1 (dark environment)
Dimming ratio > 200:1 typical
Brightness Day mode: 686 cd/m² / 200 fL min.
Night mode: 3.43 cd/m² / 1.0 fL max., dimmable to black
Signal Inputs 1xDVI-D Single Link, 1x Analog RGB (3,4 or 5 wires)
Max Resolution 1920 x 1200 (WUXGA) @ 60 Hz
3x Analog video (CVBS) inputs and 3x loop through outputs, MIL connector
1x CAN 2.0B (Accessible for project specific, please contact ScioTeq)
General Purposes Input Output
Command and Control USB, RS232/422 for touch screen, function keys, and remote control
1x 10/100 Ethernet maintenance port for configuration management and remote control

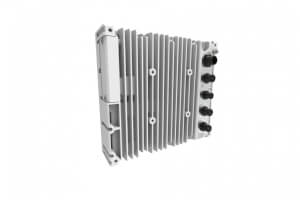

Connectors MIL-DTL-38999/3
Vibration Random vibration (tracked-vehicle profile) - MIL-STD-810G
Shock 40 g, 23 ms (6 shocks/axis)
Operational temperature -46° to +65° C (+71° C with limitations)
Storage temperature -51° to +71° C
Humidity 95 percent, 60° C
Altitude 40,000 feet operating, 50,000 feet non-operating
Salt fog 48 hours, 5-percent concentration
Sand and dust blowing sand/dust
EMI / EMC MIL-STD-461F
Ground Army
Ingress protection 1 meter immersion for 30 minutes
Standard inputs/outputs Def Stan 23-09 compliant connectors
1 x VIVOE Gigabit Ethernet port
1 x DVI-D 1.0 video port
1 x USB 2.0 touchscreen port
1 x USB 2.0 remote-control port
1 x maintenance Ethernet port
8 x Multiplexed GPIO digital discrete inputs
3 x digital GPIO discrete outputs
Optional inputs/outputs 3x video inputs RS-170, PAL/NTSC

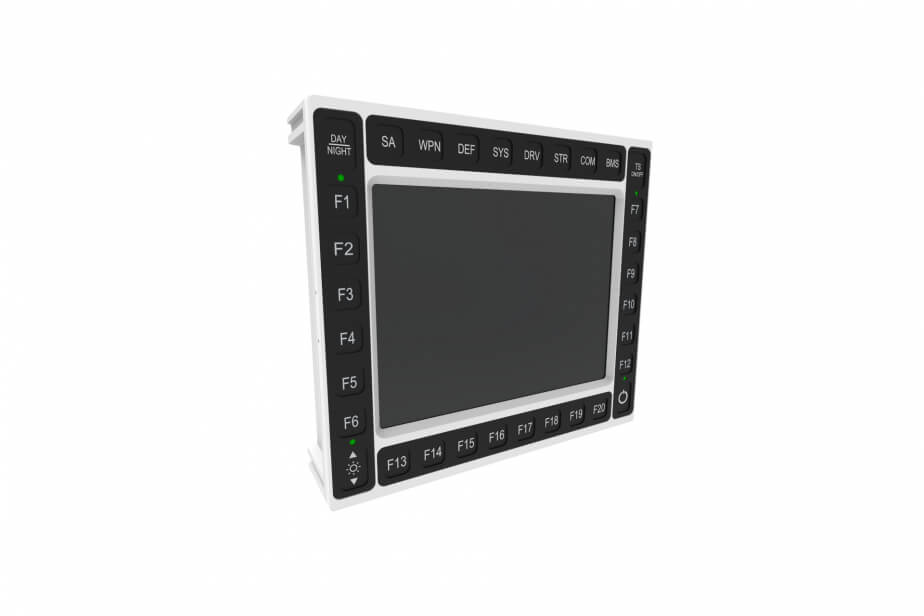

HMI Def Stan 23-09 compliant bezel
4 control keys and 28 function keys
Rugged AR high-resolution touchscreen
Power supply MIL-STD-1275E compliant
Power consumption 50 W typical, 80 W max. (without heaters)
Dimensions 286 x 254 x 68 mm /11.25 x 10.0 x 2.66 inches (w x h x d)
Weight 5.9 kg / 13 lbs
