F1-20L

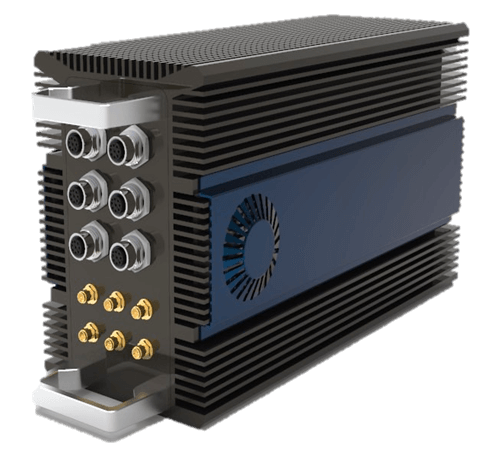

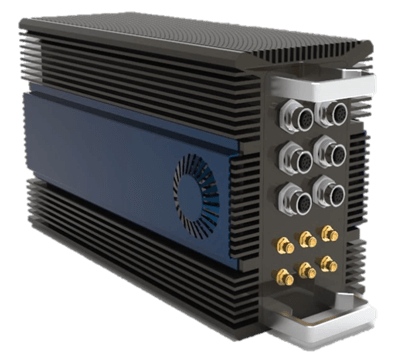

ATR Rugged MXM GPU Server with Intel XEON 2276ME, NVIDIA QUADRO RTX5000 GPU
Základní informace
- INTEL 9th Gen. XEON 2276ME (6 cores, 4.5GHz)
- High Memory Capacity DDR4-128GB
- NVIDIA MXM QUADRO RTX5000
- MIL-STD 810 Anti-Vibration, Shock
- IP65 Rating with M12 Connectors
- Extreme Temperature -40~+60 degree
- 18V~36V DC-DC 300W
- MIL-STD 810 500.6 Low Pressure Altitude
- Dimension : (WxHxD) 5"x 6.5"x 12" (127x163x300 mm)
Specifikace
| CPU | INTEL 9th Gen. XEON 2276ME (6 cores, 4.5GHz, 45W) |
| MEMORY TYPE | 4 x SO-DIMM DDR4 2666 MHz up to 128GB |
| GPU | NVIDIA MXM Quadro RTX5000 |
| STORAGE | 1 x NVMe (M.2), up to 2TB 1 x mSATA, up to 1TB |
| FRONT I/O | 2 x USB, Rugged M12 connector 2 x LAN, Rugged M12 connector 4 x BNC SDI 2 x BNC 5G Network 1 x DC-IN 18V~36V, Rugged M12 connector |
| POWER INPUT |
DC-IN 18V~36V, 300W |
| OPERATING TEMP. |
-40°C to +60°C |
| STORAGE TEMP. |
-40°C to +85°C |
| RELATIVE HUMIDITY |
Up to 95%RH @40°C, non-condensing |
| INGRESS PROTECTION |
Designed for compliance with IP65, MIL-STD-810G |
| DIMENSION (W X H X D) |
120 x 180 x 300 mm |
| OS | WIN10 ,WINDOWS SERVER2016, UBUNTU 18.04,UBUNTU20.04 |
