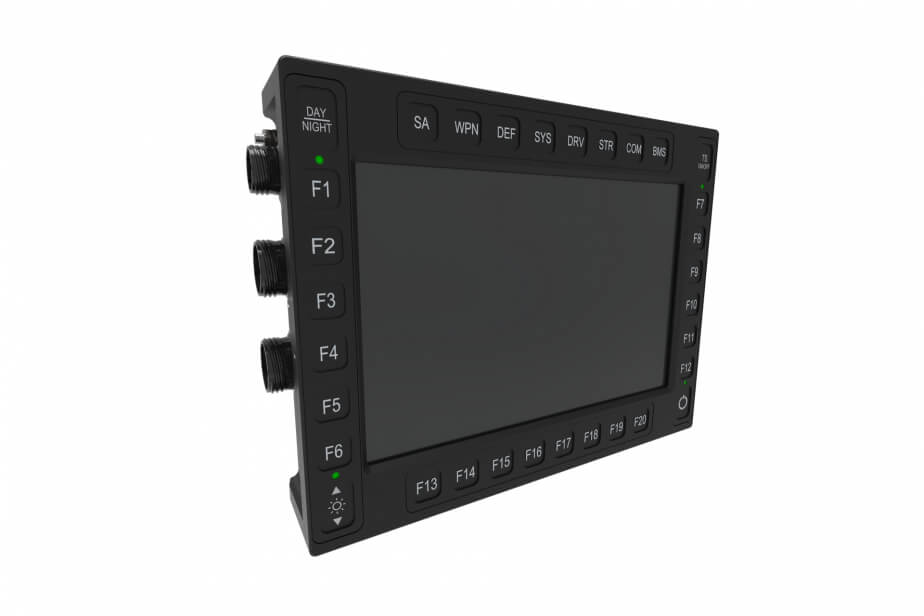

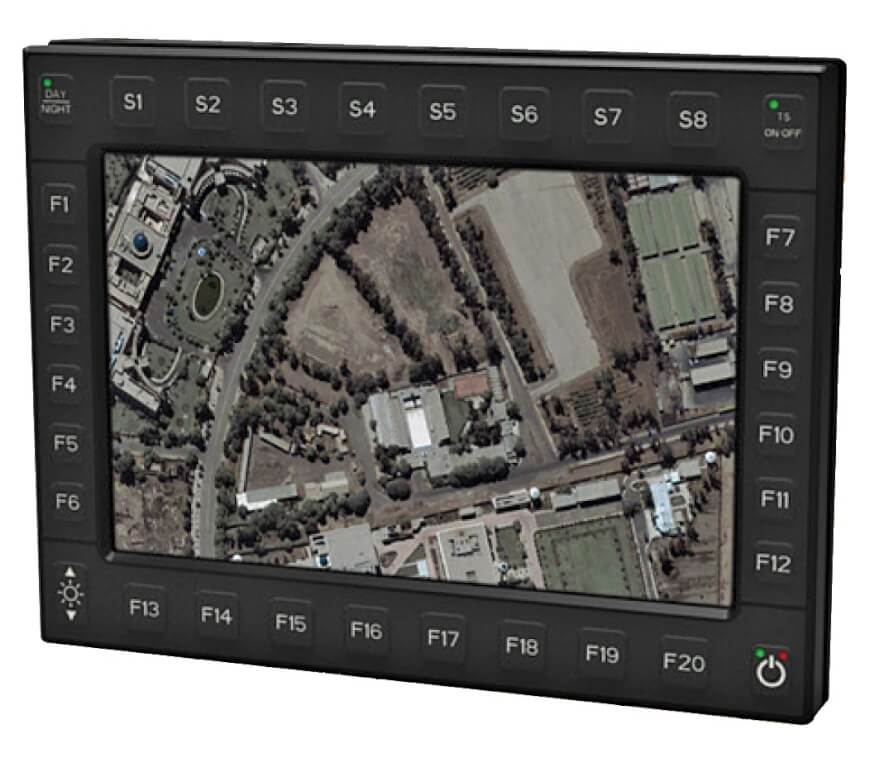

SV-231

12-inch high-bright smart display with touchscreen

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 12-inch WXGA (1280 x 800) color AMLCD, LED high-bright backlight
  • Fan-less, rugged design
  • Full MIL qualification
  • Impact-resistant, glass-on-glass, analog-resistive touchscreen
  • Optically-bonded, index-matched, high-contrast display
  • Sunlight readability
  • Intel® mobile multi-CoreTM CPUs
  • COM ExpressTM architecture that enables easy technology insertion to latest processors
  • Modular design with six expansion slots
  • Optional Codis video XMC board for hard real-time video
  • Field-removable storage with SATA 3.1 compliant (6 Gb/s) SSDs
  • Compact footprint for easy integration into vehicles

Powerful processing and open architecture in a compact package deliver high performance for C4ISR applications

The SV-231 smart display from ScioTeq combines a 12-inch high-bright touchscreen with the graphics and computing power of a rugged computer to provide a high-performance visualization processor in a compact footprint. Because of its design for SWaP-C and modular open architecture, this display is ideal for vehicle mounted C4ISR applications

Extreme Performance
Our SV-231 smart display offers the latest proven technologies, such as a rugged analog-resistive, low reflection touchscreen and the latest generation of Intel® Core™ processors. These features are packaged to deliver optimal performance while operating in harsh environments.

Modular Design
The SV-231 display includes six expansion slots based on open industry standards. This modularity allows customized IO configurations and dedicated hardware controllers to support multiple security domains.

Image Processing and Real-Time Performance
The SV-231 display connects to a variety of imaging and data sources to deliver enhanced situational awareness. The media-management software supplied with the display enables hardware-accelerated GPU-based image processing with low latency for stream decoding, scaling, and windowing. The display can be optionally equipped with the VXB video board for hard real-time video inputs directly to the screen.

Previouse names Barco SV-231 / Esterline CODIS SV-231

Specifikace

Panel type Active Matrix LCD
Panel active area 12.1 inch diagonal
Resolution 1280 x 800 (WXGA)
Color depth 6 bits/color
8 bits/color with patented dithering algorithm
Backlight LED
Contrast ratio 700:1 in dark room typical
Dimming ratio >200:1 typical
Brightness Day mode: 680 cd/m² / 200 fL min.
Night mode: 3.43 cd/m² / 1.0 fL max., dimmable to black
Signal Inputs 2x Intel PRO1000 Gigabit Ethernet ports
4 x USB 2.0
4 x serial lines (RS-232/RS-422/RS-485)
2 x CAN bus (ISO 11898, CAN 2.0 A/B, and J1939 compliant)
HD audio in/out/micro4x video inputs RS-170, PAL/NTSC
11 x GPIO + PTT
I/O isolated or buffered as applicable

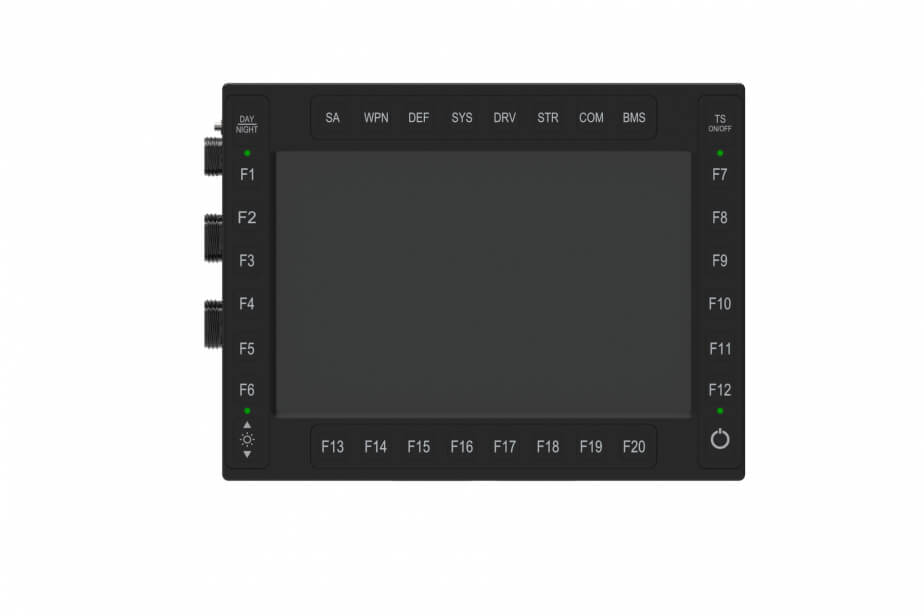

HMI 4 control keys
32 function keys
Rugged AR high-resolution touchscreen
Computing Intel® Quad Core™ I7-6822EQ, 4 x 2.0 GHz
RAM Up to 16 GB DDR3 SODIMM
Graphics card Integrated Intel® HD Graphics 530
Storage 256 GB field-removable SSD, SATA 3.1 compliant (6 Gb/sec)
Option slots 1x PCI-e
1 x XMC or M.2 mini PCI-e
3 x mini PCI-e
Operating System No Operating System installed
Vibration Vibration: tracked-vehicle profile - MIL-STD-810G
Shock 40 g, 23 ms (6 shocks/axis) - MIL-STD-810G
Operational temperature -46° to +65° C (+71° C with limitations) - MIL-STD-810G
Storage temperature -51° to +71° C - MIL-STD-810G
Humidity 95% RH temperature cycle 60°C - MIL-STD-810G
Drip proof MIL-STD-810F Meth 506.4 proc III
Altitude 40.000 ft operating, 50.000 ft non-operating - MIL-STD-810G
EMI / EMC MIL-STD-461G - Ground Army
Sand & dust, salt fog MIL-STD-810G - 48 hours, 5-percent concentration, blowing sand/dust
Power MIL-STD-1275E compliant
Power consumption 50 W typical, 80 W max. (without heaters)
Weight  6.6 kg
Dimensions 286 x 254 x 68 mm (w x h x d)
Cooling  Passive
