24” semi-rugged touch display with WUXGA resolution for naval and shelter applications

Compact semi-rugged design

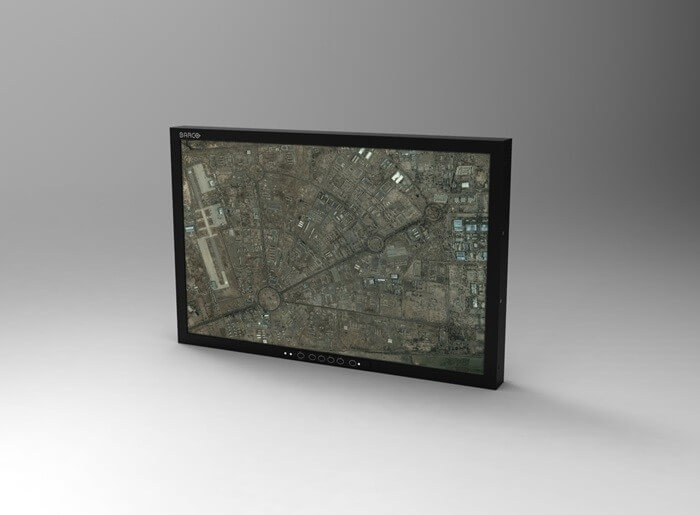

The TC-361 is Barco's 24" touch screen display with a medium ruggedization level. Its exceptionally slim display design and low weight make the TC-361 perfectly suited for non-critical naval applications as well as ground mobile and fixed shelters.

Superior image quality
The TC-361 features WUXGA resolution (1920 x 1200) and offers excellent performance in terms of image crispness, contrast, and viewing angle. Equipped with highly efficient LED backlights, Barco's TC-361 offers a long lifetime and reduces power consumption.
High-accuracy touch screen

The TC-361 features an analog-resistive touch screen, allowing fluent drag and drop actions with finger tips, gloves or stylus. The analog-resistive touch technology excels with high touch accuracy, dust and water resistance.
Flexible display performance

Designed with dual DVI and dual VGA inputs, combined in two DVI-I connectors, the TC-361 provides the flexibility to support both new and legacy systems and allows switching between multiple inputs with the touch of a button.

The TC-361 accepts input timings up to 1920x1200 and offers 3 scaling modes: normal, save aspect ratio (SAR), and no scaling.


Screen size 24"
Display size 559,05 x 364,74 x 70,87 mm (wxhxd) 22,01 x 14,36 x 2,79 inch (wxhxd)
Resolution 1920 x 1200
Brightness 320 cd/m²
Contrast ratio 1000:01:00
Aspect Ratio 16:10
Backlight LED
Viewing angle +/- 89° horizontal
  +/- 89° vertical
Inputs 2 x DVI-I female
Scaling modes SAR Mode: max resolution, maintains aspect ratio (default)
  Normal: fill screen, does not maintain aspect ratio
  No Scale: resolution and aspect ratio = source
Power consumption 40W typ.
Power Supply AC input 100-240 VAC 47-63Hz
USB Type B connector for touch screen communication
Bezel controls Input selection / Up / Down / Enter / Exit / Standby in conjunction with OSD
Touch screen Anti-reflective, analog-resistive touch screen
Vibration Air transport C-17 according MIL-STD-810F fig 514.5C-6 and table 514.5C-VIII
  Composite Wheeled Vehicle according MIL-STD-810F fig 514.5C-3 and table 514.5C-VII up to 200Hz
Shock MIL-STD-810F 10G peak, 11 msec ½ sine wave
Operating temperature 0°C to +50°C
Storage temperature -20°C to +60°C
Operating humidity 5 to 85% relative, non-condensing
