OverView NSL-5521

Barco OverView NSL-5521 představuje zobrazovací systém LCD panelu o úhlopříčce 55" s technologií LCD a s rozlišením 1 920 x 1 080 bodů. Součástí systému je unikátní kalibrační systém BARCO Sense6. U tohoto modelu je umožněn servisní přístup zepředu.

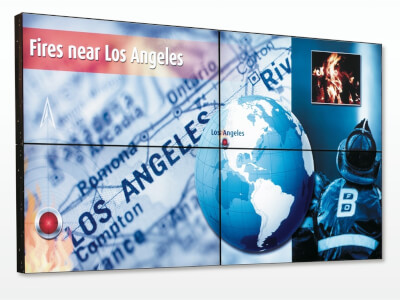

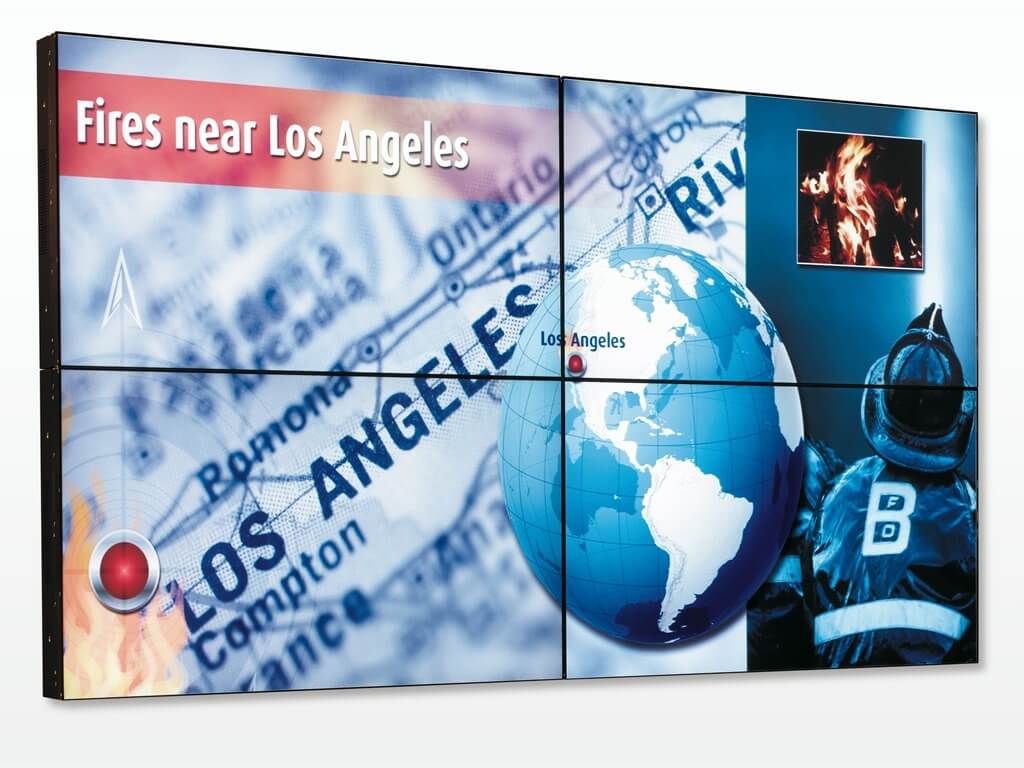

The OverView NSL-5521 55" tiled LCD video wall uses durable LED backlights positioned directly behind the LCD panel and has a super narrow bezel, resulting in excellent tiled visual performance. This video wall series was designed for 24/7 use in control rooms. Its deep dark levels are perfect for visualizing data-driven information, including process control schematics. Furthermore, the OverView NSL-5521's exceptionally high brightness levels also allow these video walls to be used in any lighting condition.

Durable and bright

These tiled LCD video walls offer the best image quality around in terms of resolution, brightness and viewing angle. Because LED backlights reduce burn-in and colorations in the LCD filters and polarizers, the OverView NSL-5521 has a long panel life.

Ideal for:
Emergency Operations Centers
Traffic management and surveillance centers
C4I-SR environments
Utilities and process control centers
Broadcast & telecom monitoring


LCD technology S-PVA, normally black, DID technology for extensive usage, AIR Anti Image Retention circuitry
Resolution Full HD (1920 x 1080)
Backlight Direct LED
Aspect Ratio 16:9
Pixel density 40 dpi
Refresh rate 60 Hz
Luminance 700 cd/m2 (max)
Contrast 3000:1 (typ.)
Viewing angle H 178°|V 178°
White point 10,000 K
Color 10 bits - 1.07 B colors
Color calibration Barco DCMS software and color probe
Precision Internal 10 bit processing for precise color calibration
Backlight lifetime 50,000 h
MTBF > 30,000 h
Active screen diagonal 55" (1396 mm)
Dimensions 1215.3 x 686.1 x 98.2 mm | 47.85” x 27.01” x 3.87”
Active screen area 1210 mm x 680 mm | 47.63” x 26.79”
Bezel width Right, bottom: 1.9 mm | 0.075”
Left, top: 3.8 mm | 0.15”
Weight 35 | 77.3 lbs(net) 48.5 | 107.1 lbs (gross)
Cooling Low noise fans
AC input voltage 100-240 VAC, 60-50 Hz
Power consumption 300 W (max)
130 W (typ)
20 W (sleep)
2.5 W (stdby)
Heat dissipation 1023 BTU/h (max)
VGA Separate sync DSUB-15P in/out
DVI Single link DVI-D in/out with HDCP
Display port Display port input (Out via DVI)
HDMI HDMI Type A with HDCP (Out via DVI)
HD-SDI 2x BNC in
2x out
SD, HD, 3Gb/s
CVBS BNC in/out
S-video Mini-DIN S-terminal in/out
Component video 3xBNC in/out
Barco NSL control manager Server connected via RS232 chain
Remote client application: on/off, wall setup, source selection, status, brightness, contrast and color adjustments
Operational temperature 0-40°C
Storage humidity 10-90% non-condensing
Storage temperature -20-60°C
Operating humidity 20-80% non-condensing
Regulation Compliance CE, TÜV, cTÜVus, CCC, ROHS, WEEE
control signal RS-232 DSUB9 PIN in/out
