Širokoúhlý LCD displej s LED podsvícením Barco LDX-55 je určen pro použití v široké škále profesionálních aplikací. LDX-55 produkuje ostrý, jasný obraz a barevně přesné snímky na velikost obrazovky 55“.

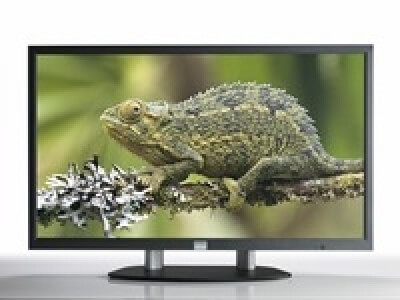

Barco's LDX-55 display with LED backlights has been designed for use in a wide variety of professional applications. The LDX-55 produces crisp, bright and color-accurate images on a 55” screen size.

Featuring LED backlit LCD technology, the LDX-55 boasts a high brightness and wide color gamut and provides an exceptionally thin and space-saving design. Available in native full high definition (1920 x 1080 pixels), the LDX-55 is a high-quality display for long-term usage.

Barco's LDX-55 combines the typical benefits of liquid crystal technology (such as low maintenance costs) with energy-efficient LED backlights, reducing image burn-in and colorations, which makes it perfectly suited for long-term usage.

Wide viewing angle
The wide viewing angle (178°) and large surface are very beneficial in collaborative environments where detailed information is viewed by multiple participants.

Space-saving design
The LDX-55 is based on Edge LED technology, meaning that the LEDs are positioned around the outer rim of the screen. This technology provides the LDX-55 with an exceptionally thin and space-saving design.
The display has been designed for easy installation of high-quality standalone applications as a complementary visualization solution in modern control rooms.

High resolution
Barco's high-resolution LDX-55 shows large amounts of data in accurate and high-quality images. Any input source can be shown pixel-on-pixel, which avoids unnecessary scaling artifacts often found on lower-resolution displays. Combined with the displays' non-glossy professional LCD panel and Anti-Image Retention functionality, the LDX-55 delivers bright and crisp images that do full justice to high-resolution graphics and video.


LCD technology S-PVA , normally black
DID technology for extensive usage
AIR Anti Image Retention Circuitry
Resolution Full HD (1920x1080)
Backlight Edge LED
Aspect Ratio 16:9
Refresh rate 120Hz
Pixel density 40 dpi
Luminance 600 cd/m² (max)
Contrast ratio 4000:1 (typ)
Viewing angle H 178° / V 178°
White point 10,000 K
Color depth 10 bits - 1.07 B colors
Color calibration Barco DCMS software and color probe
Precision Internal 10 bit processing for precise color calibration
Backlight lifetime 50,000 h
MTBF >30,000 h
Active screen diagonal 55” (1396 mm)
Dimensions 1267 x 749 x 81 mm (49.88” x 29.49” x 3.19”)
Active screen area 1210 x 680 mm (47.64” x 26.77”)
Weight 35 kg (77.3 lbs net)
Cooling Fanless cooling - low noise
AC input voltage 100-240 VAC, 60-50Hz
Power consumption 240W (max)
130W (typ)
20 (sleep)
2.5 (stdby)
Heat dissipation 818 BTU/h (max)
VGA Separate sync DSUB-15P in/out
DVI Single link DVI-D in/out with HDCP
Display port Display port input (Out via DVI)
HDMI HDMI Type A with HDCP (Out via DVI)
HD-SDI 2x BNC in
2x out
SD, HD, 3Gb/s
CVBS BNC in/out
Color adjustment With DCMS software and color probe
S-video Mini-DIN S-terminal in/out
Component video 3xBNC in/out
Barco NSL control manager Server connected via RS232 chain
Remote client application: on/off, wall setup, source selection, status, brightness, contrast and color adjustments
control signal RS-232 DSUB9 PIN in/out
Operating temperature 0° to 40°C
Operating humidity 20-80% non-condensing
Storage temperature -20-60°C
Storage humidity 10-90% non-condensing
Regulation Compliance CE, TÜV, cTÜVus, CCC, ROHS, WEEE
