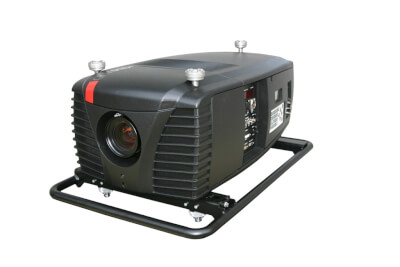

SXGA+, 10,000 lumens single-chip DLP projector



Barco's CLM R10+ is the most cost-effective compact, 10,000 ANSI lumens high-brightness projector on today's market. Its single-chip DLP technology and sealed optical engine make it an outstanding choice for intensive-use applications in bright environments.

Crisp visuals even in bright environments
Our CLM R10+ features the Barco engineered picture-in-picture functionality, which allows two sources to be displayed simultaneously on one screen, in any combination of data and video. Combined with its strong light output, this makes the CLM ideal for mid- to large-sized presentation venues.

Flexible source handling
The CLM R10+ can handle a wide array of sources, including all currently supported video formats and broadcasting signals. Its RS232 and TCP/IP ports enable connection to a host of remote control devices, while its low size, weight and noise levels make the CLM R10+ an efficient, quiet solution that looks good in any brightly lit room. What's more, it can be stacked in multiples in case even brighter light outputs are required. Its quad-lamp system also spectacularly enhances its lifetime, rendering the CLM R10+ virtually maintenance-free.


Technical specification:

Light Output 10000 Center Lumen
9500 ANSI Lumen
Resolution 1400 x 1050 (native, SXGA+)
Brightness uniformity 95%
Contrast ratio

1200:1 (full field)

High Contrast Mode:
contrast enhancement by optical dowser

Display 1 Chip DLP SXGA+ (resolution of 1400 x 1050 pixels (aspect ratio 4:3))
  • DMX512 control of optical dimming, electronic dimming, zoom, focus, lens shift, input select
  • Advanced picture-in-picture
  • Seamless switching with effects
  • Carry handle/frame
  • Rigging points (touring kit)
  • Flexible positioning (portrait/ landscape/any setup possible)
  • Brilliant Color processing
Picture-in-picture two sources simultaneously
Inputs Standard inputs
  • configurable 5 cable (BNC)
  • DVI
  • 1x RS-232C/RS-422 IN (D-9 connector)
  • 1x RS-232C/RS-422 OUT (D-9 connector)
  • 1x RS-232C IN (XLR connector)
  • All current video sources (PAL, SECAM, NTSC) in Composite, S-VHS, Component or RGB formats
  • All currently proposed HDTV, extended and improved television standards (1080i, 720p)
  • All computer graphics formats from VGA, SVGA, XGA, SXGA,full HD to UXGA
  • Most Macintosh computers
  • Electronic workstations with a resolution up to 1600 x 1200 pixels at 75 Hz
  • Most computer sources with a pixel clock up to 200 MHz
  • DVI sources up to SXGA+
Input source compatibility max. input resolution up to UXGA (1,600 x 1,200) and HD (1,920 x 1,080)
Network connection 10/100 Base-T, RJ-45 connection

Optical dowser (dimmer):
0 - 100% brightness control by DMX512 signal
Projector toolset control program included
Ambient temperature Max 40°C (104°F)
Lamp 4 x 300 W
Lamp warranty: 750 Hrs
max lamp life 1250hrs: operates 1,2,4 lamps

Zoom lens CLD 1.2 - 1.5:1
Zoom lens CLD 1.5 - 2.2:1
Zoom lens CLD 2.2 - 4.4:1
Zoom lens CLD 4.4 - 7.0:1
Wide lens QCLD 0.85:1

Lens Shift Vertical: -20% to +110%
Horizontal: 15% to -100%
(small differences occur per lens type)
Note: no lens shift on QCLD lenses.
ScenergiX Standard horizontal and vertical electronic edge blending
Sealed DLP™ core Standard
Dust filters High density filters
Noise Level 49 dB at 25°C
Safety Regulations EN 60950-1 ( for Europe)
UL 60950-1 (for USA)
Mains Voltage 100-120/200-240V 12/8A 50/60Hz
Power consumption Max 1600 watt
Heat dissipation BTU 5500
Weight 31 kg excl. lens and rigging frame

W x L x H
692 x 442 x 293 mm
(27.24 x 17.40 x 11.54 inch)
excl. carrying handle + rigging points

Electromagnetic Interference Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A
Order Information R90501001
