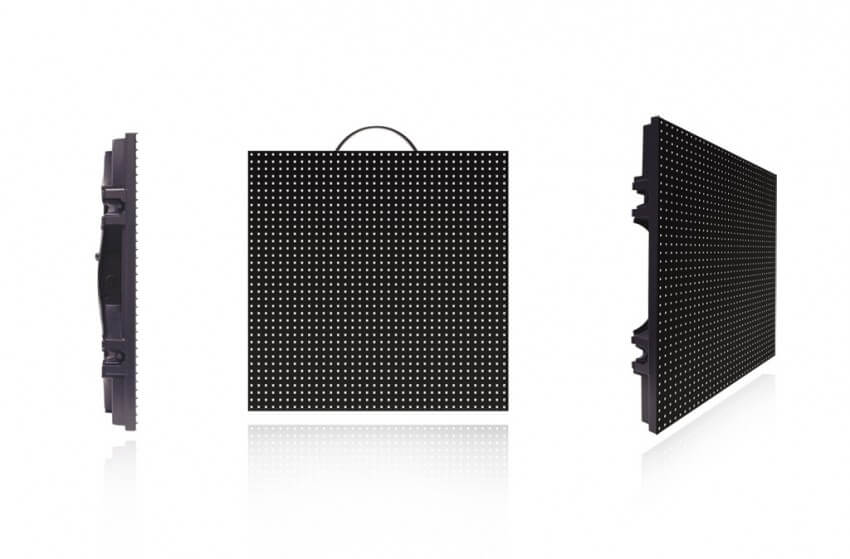

C7

7mm pixel pitch, 2,000 nits, surface-mounted LED tile

PRODUKT JIŽ NENÍ URČEN K PRODEJI

Detail

Barco's C7 LED video display is an indoor solution for both rental and permanent installations. It is the culmination of an extensive research and development program, resulting in next-generation display technology that renders existing alternatives obsolete.

The C-series is the industry's first truly environmentally friendly display, with a fraction of the power consumption and heat generation of other LED displays. It also features a true 100,000-hour lifetime along with RoHS.

Fortunately, being green doesn't mean sacrificing performance. With its 2,000 nits high contrast calibrated output, C7 stands out in the most demanding environments. Superior color reproduction is achieved through sophisticated calibration and control algorithms. All this technology comes in an ultra-thin, fanless enclosure requiring no tools for deployment and servicing.

C7 is driven by the Vizomo digitizer to offer the world's most flexible processing. Zoom, crop, and create multi-windows without additional equipment.



Specifikace

Pixel pitch 7.69 mm, 52x52 pixels per tile, 16,900 pixels/m²
Brightness 2,000 nits
LED configuration RGB 3-in-1 SMD, black package
Pixel density

2,704 LEDs per tile (52x52)

Hor. viewing angle 140° (min 50% brightness)
Vert. viewing angle

140° (min 50% brightness)

Lifetime

100,000 hours to 50% of initial brightness

Power consumption 100W/tile (average)
Operation power voltage 200-240V / 50-60Hz
Tile dimensions

Width: 400mm
Height: 400mm
Depth: 70mm

Weight / Tile

6.4 kg

Processing 16 bit/color
Colors 281 trillion
Refresh rate 1,024-4,096Hz
Foot build-up Max. 10 tiles high
Truss build-up Max. 25 tiles high
Link interface PXL
Serviceability Back
Operating temperature 0 - 40°C
Source compatibility DVI, SD-SDI, HD-SDI
Operatable digitizer Vizomo
Certifications ETL, CE, FCC, CCC, RoHS (pending)
