Odolný 14" notebook s 11. generací procesorů Intel širokou škálou možností přizpůsobení a rozšíření.
Z14I is equipped with Intel® 11th generation CPU featuring Iris® Xe graphics processor, and performance is enhanced to cater for congested data processing. With an ultra high-speed data transmitting capability of Intel® Wi-Fi 6 and Bluetooth® V5.2, all data can be instantly synchronized and fed back to the data center without any interruptions.
BUILT FOR ALL ENVIRONMENTS
With invincible mechanical design and rigorous component selection, the Z14I can adapt to any environments flawlessly. It is MIL-STD-810H certified with additional items such as explosive atmosphere, solar radiation, salt fog, and fungus resistance; it is also certified for IP 65 and a 6 feet drop guarantee. What’s more is that it has MIL-STD-461G and ANSI-C1D2 certifications which makes it more rugged than ever.
A smart device that offers you different types of interfaces with various selections of add-ons, which includes Thunderbolt™ 4, two RJ-45 ports, two RS-232 serial ports, ExpressCard 54 or PCMCIA Type II slot. In addition, USB options offer all capabilities of Type-C to Type-A, or USB 3.2 Gen2 to USB 2.0.
For some customers, specific needs can be catered by our flexible customization package upon purchase.
VIEWING AT ITS BEST

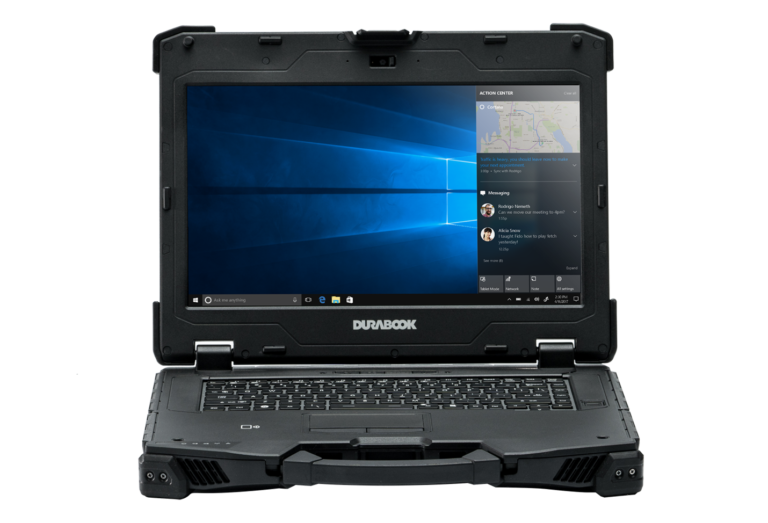

The 14-inch Full HD 1080p widescreen display alone with DynaVue® technology reveals every detail of visual image at a glance. Not only it has the brightness of up to 1000 nits but also the light-filtering technology makes the Z14I the best rugged laptop with highest contrast ratio (CR), which helps to eliminate internal reflections that enhances viewing clarity when viewed at different angles.
OPTIMIZED TOUCH TECHNOLOGY
The 10-point capacitive multi-touch panel has four touch modes (Glove, Stylus, Water, Finger), this device is optimized for applications of both indoor and outdoor usage; enhancing the device’s usability regardless of work conditions.
Z14I is equipped with the latest NVMe PCIe SSD technology, providing up to 1TB of storage, while its PCIe offers speeds 4x faster than SATA III. It can accommodate two more internal SATA III SSD drives to maximize the onboard storage.

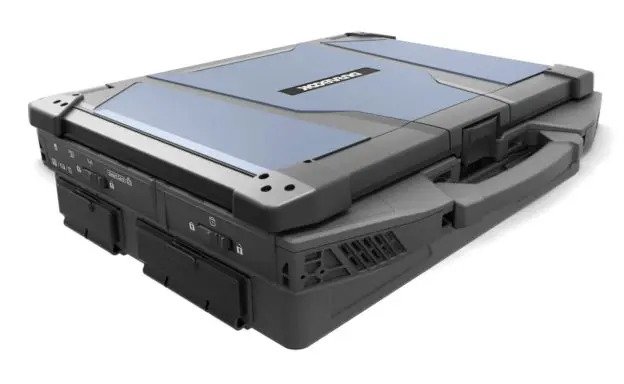

In addition, the Z14I device provides a media bay for several setup options; such as, an optical disk drive, a second battery or a third SATA III SSD storage to select from.
ENDLESS CUSTOMIZATION POSSIBILITIES

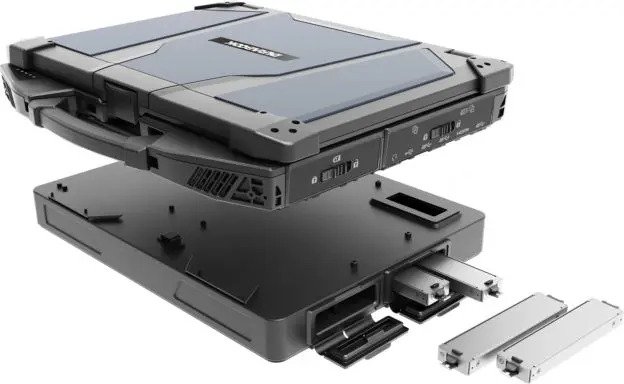

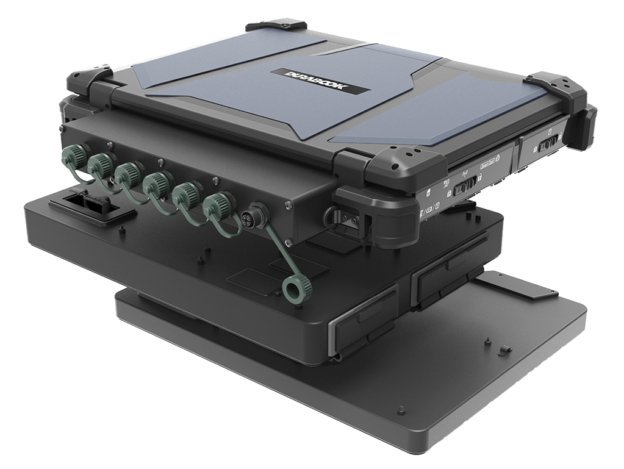

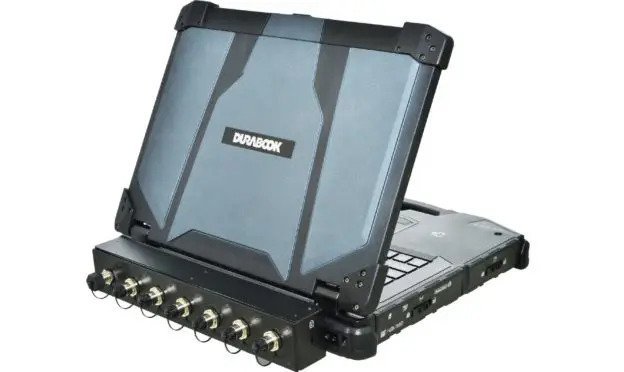

The expansion box is one of the most powerful enhancement capability of the Z14I. From a workstation to a portable server, the expansion box provides either two slots of PCIe interface for various solution builds, a dedicated graphics card, military-grade connectors or storage security extension with RAID 0/1/5/10 configurations. It could also be field installed with simple and easy guideline to become a powerful portable server or an ultimate solution for specific tasks.
The unit’s endless configuration possibilities assure users of the power, flexibility, functionality, and data security that they need for their specific applications
|OPERATING SYSTEM||Windows® 10 Pro 64-bit|
|CPU||Intel® Core™ i7-1185G7 vPro™ 3.0GHz processor with Turbo Boost Technology up to 4.8GHz, 12MB cache
Intel® Core™ i7-1165G7 2.8GHz processor with Turbo Boost Technology up to 4.7GHz, 12MB cache
Intel® Core™ i5-1145G7 vPro™ 2.6GHz processor with Turbo Boost Technology up to 4.4GHz, 8MB cache
Intel® Core™ i5-1135G7 2.4GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
Intel® Core™ i3-1115G4 3.0GHz processor with Turbo Boost Technology up to 4.1GHz, 6MB cache
Intel® Core™ i7/i5: Intel® Iris® Xe Graphics
14.0” FHD (1920 x1080)
|MEMORY||2 slots 8GB up to 64GB (2400-3200MHz DDR4)|
|STORAGE||256GB/512GB/1TB NVME PCIE SSD
Optional 256GB/512GB/1TB SATA SSD
Optional OPAL 2.0 SSD
Optional 2nd/3rd storage (SATA SSD)
|AUDIO||Optional integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls
|CAMERA||Optional integrated 2.0 MP web-cam with shutter design
Optional IR camera for Windows Hello
|WIRELESS & COMMUNICATIONS||Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 6 AX201 (802.11a/b/g/n/ac/ax)
Optional dedicated GPS module (UBLOX-NEO-M8N)
Optional 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN, and WLAN
|I/O PORTS||USB 3.2 Gen2 (type A) x 2
USB 3.2 Gen2 (type C) x 1 (support DP)
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
SD card (SDXC) x 1
10/100/1000 Ethernet (RJ-45) x 1
VGA port (D-sub,15-pin) x 1
HDMI port (type A) x 1
Serial port (RS232/RS422/RS485 : D-sub,9-pin) x 1
SIM card x 1
DC-In jack x 1
Optional smart card reader x 14
Optional docking connector (41-pin Pogo) x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN
|KEYBOARD AND INPUT||2 user-definable keys (P1/P2)
RF Signal slide-switch
Standard membrane keyboard with optional LED backlight
|Media Bay||Optional DVD super Multi
Optional 2nd battery
Optional SATA SSD
|Expansion Box||Optional PCI-Express 3.0 (2 slots)
Optional discrete VGA
Optional storage extension with RAID 0/1/5/10
Optional military-grade / M12 connectors
|SECURITY||Intel® vPro™ Technology (per CPU options)
NIST BIOS compliant
Easy removable SSD
Smart card reader
Night vision mode
Optional Windows Hello
Optional fingerprint scanner
Optional HF/LF RFID reader
|RUGGGED FEATURES||MIL-STD 810G certified
ANSI/ISA 12.12.01-2000, Class I, Division 2
120cm drops 26 faces
IP 65 certified
Aluminum-magnesium alloy chassis
|POWER||AC adapter : 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery Li-Ion, 10.8V, 4700mAh, 10 hours
Optional 2nd battery Li-Ion 10.8V, 4700mAh, 10 hours
Optional bridge battery : 5 minutes swap time
|DIMENSION||356 mm (L) x 280 mm (W) x 50 mm (H)|
|TEMPERATURE||Operating : - 20°C ~ 60°C
Storage : -51°C to 71°C
Humidity : 5% ~ 95%
|WARRANTY||3-year limited warranty standard|
