podsvětlovací podložka LB-38 a LB-9

Please note that in general a lightbox is NOT necessary for transparencies, since they can be picked up in perfect quality on the crystalline white working surface of all WolfVision Visualizers. However, there are some rare situations where a lightbox is

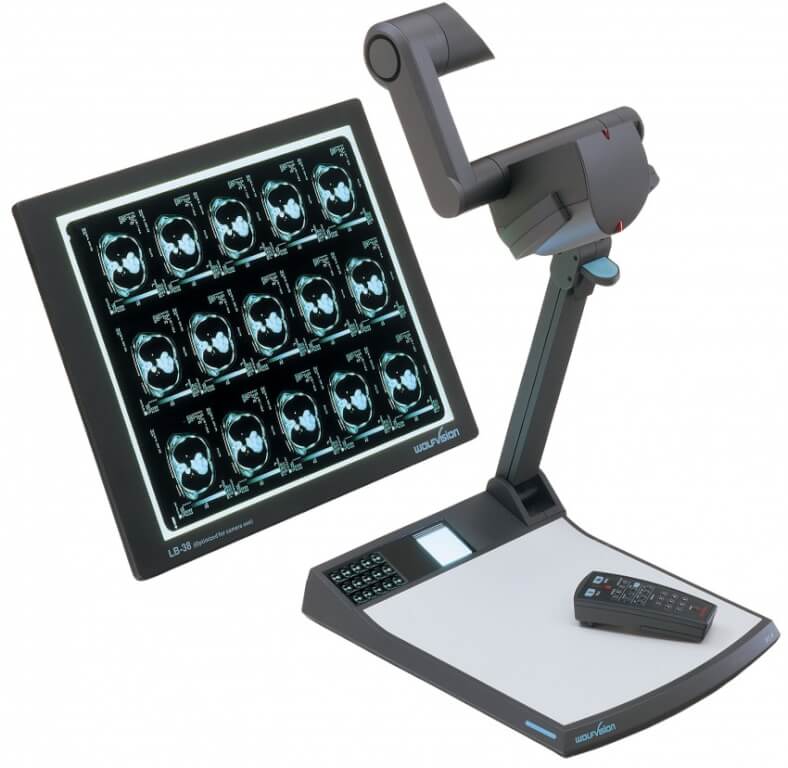

A lightbox can also be used to pick up slides on Visualizer models without a slide pick-up feature (e.g. VZ-8light and all Ceiling Visualizers). However please note, that there are also dedicated small slide pick-up lightboxes on the market, which can as well be used. If only used for slides our lightboxes LB-9 and LB-38 may be oversized. The LB-38 is WolfVision's LARGE lightbox. The extremely slim design looks very good on a table and is the perfect accessory for a WolfVision Ceiling Visualizer. The LB-9 is designed for WolfVision's Desktop Visualizers. It fits perfectly on the working surface and has an attractive and professional appearance due to its very slim design.


LB-38 LB-9 Size of lit area (length x width) 430 x 359 mm (16.9" x 14.1") 300 x 210 mm (11.8" x 8.3") Size on outside (length x width) 503 x 419 mm (19.8" x 16.5") 370 x 260 mm (14.6" x 10.2") Height 14 mm (0.6") 14 mm (0.6") Light source CCFL, very even light CCFL, very even light Guaranteed lamp lifetime 6.000 hours 6.000 hours Color temperature 3200 K (optimized for use with Visualizers and other cameras) 3200 K (optimized for use with Visualizers and other cameras) Power supply 12V output of Visualizers or supplied power pack with 12 V output (multirange 90-240V) 12V output of Visualizers or external power pack with 12V output (multirange 90-240V) Weight 2.7 kg (5.6 lbs) 1.2 kg (2.5 lbs)
