VTC 7220-R

Intel® Core™ i7-4650U Fanless Rolling Stock Computer with EN50155

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel® Core™ processor dual core i7-4650U
  • Three SIM cards + dual WWAN modules support
  • Dual accessible & hot swappable SATA 3.0 SSD/HDD (RAID 0/1)
  • Built-in u-blox NEO-M8 module
  • Built-in CAN 2.0B. Optional CAN/OBDII module
  • Wake on RTC/SMS via WWAN module
  • Voice communication via WWAN module
  • EN50155 conformity
  • 4 x mini-PCIe socket rich expansion capability
  • Isolated Power

Specifikace

CPU Intel® Core™ processor dual core i7-4650U, 1.7GHz
Memory 2 channel 204-pin DDR3L SO-DMIM socket support 1333/1600MHz up to 16GB, default Industrial grade 2GB
Storage 2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available)
1 x CFast (externally accessible)
Expansion 1 x Full size mini-PCIe socket (USB 2.0)
1 x Full size mini-PCIe socket (USB 2.0 + PCIe)
1 x Full size mini-PCIe socket (USB 2.0 + PCIe)
1 x Half size mini-PCIe socket (USB 2.0 + PCIe)
Function 1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou) or optional module with Reckoning
Built-in G-sensor

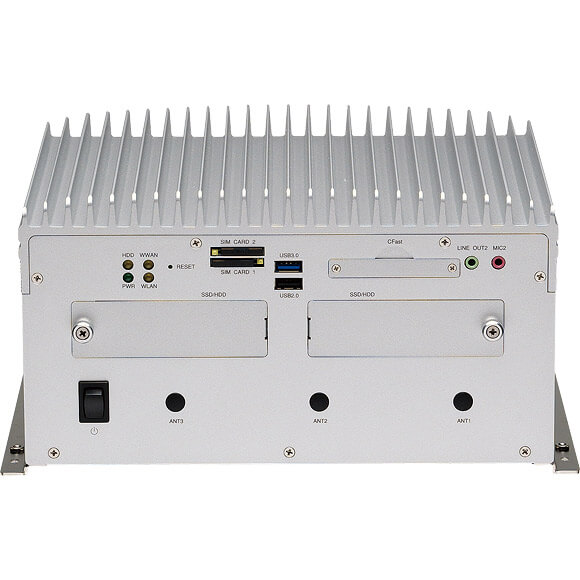

I/O Interface-Front 4 x LED for power, storage, WWAN, WLAN
1 x Power Switch
2 x 2.5" SATA 3.0 SSD/HDD (removable & hot swappable), RAID 0,1 supported (optional lockable storage available)
1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port
2 x Externally accessible SIM card socket (selectable)
1 x Phone jack 3.5mm for 1 x Mic-in
1 x Phone jack 3.5mm for 1 x Line-out
1 x Externally accessible CFast card socket with cover
1 x Reset button
3 x antenna hole for WWAN/WLAN/BT

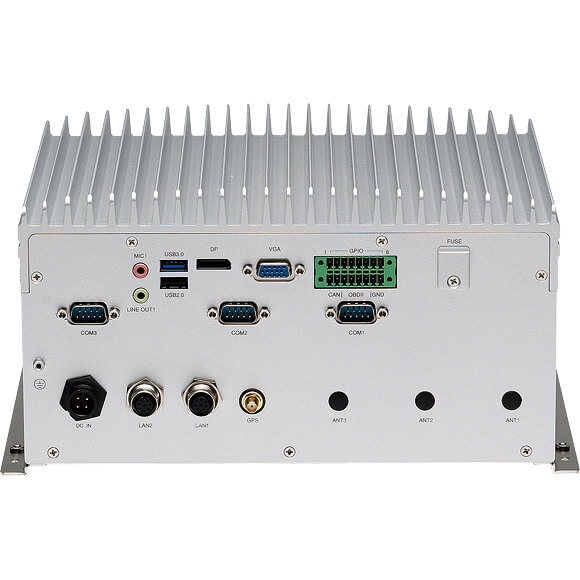

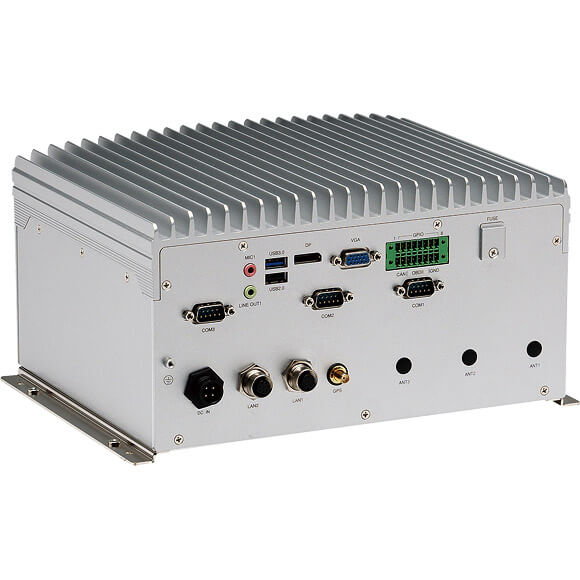

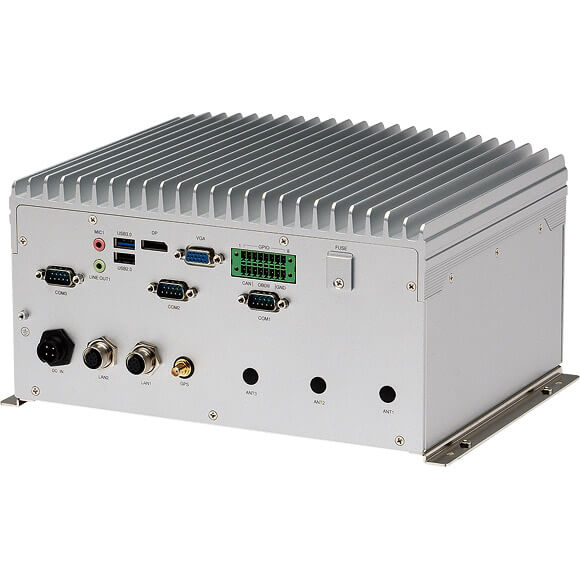

I/O Interface-Rear 1 x Circle Type DC Input with ignition
VTC 7220-RA: 24VDC (16.8V ~ 31.2V) Input with 4KVDC isolation
VTC 7220-RB: 36VDC (25.2V ~ 46.8V) Input with 2KVDC isolation
VTC 7220-RF: 110VDC (77V ~ 143V) Input with 4KVDC isolation
1 x Dual USB type A connector for USB 3.0 port + USB 2.0 port
2 x M12 10/100/1000 Ethernet
1 x Phone jack 3.5mm for 1 x Mic-in
1 x Phone jack 3.5mm for 1 x Line-out with 1.5W output each
1 x DB-15 VGA. Resolution up to 2560 x 1600 @60Hz
1 x DP port. Resolution up to 2560 x 1600 @60Hz
2 x DB-9 RS-232
1 x DB-9 RS-232/422/485 (RI/12V selectable)
1 x 16-pin terminal block
- 1 x CAN Bus 2.0B (on board)
- 1 x optional CAN/OBDII module (CAN Bus 2.0B or OBDII SAE J1939)
- 8 x Programmable GPIO
(Digital Input)
Input voltage (internal type): 5VDC TTL (default)
Input voltage (source type): 3 ~ 12VDC
(Digital Output)
Digital output (sink type): 5VDC TTL (default), max current: 20mA
Digital output (source type): 3 ~ 18VDC, max current: 150mA
- 4 x Antenna hole for WWAN/WLAN/BT/GPS
- 1 x Fuse (15A)
Power Management Ignition On/Off controlProgrammable On/Off delay timerSystem wake up event
Ignition switch
RTC timer ALARM interrupt
Cellular MODEM wakeup signal
System wake up condition
Wake up event is triggered, and DC input voltage is greater than UVP threshold
Timer delay is only applicable for Ignition on
System power down condition
Soft off, or Ignition off, or DC input voltage is lower than UVP threshold
Timer delay is only applicable for Ignition off
Operating System Windows 8, WES8
Window 7, WES7
Linux kernel 3.X
Dimensions 260mm (W) x 206mm (D) x 137.5mm (H) (10.24" x 8.11" x 5.39")Weight: 2.5kg
Environment Operating temperatures:
-40°C to 70°C (w/ industrial SSD) with air flow
-20°C to 45°C (w/ commercial HDD) with air flow
Storage temperatures: -40°C to 85°C
Relative humidity: 10% to 90% (non-condensing)
Standards/Certifications CE approvalFCC Class AEN50155 conformity
- Ambient Temperature EN 50155 TX (-40 ~ 70° C)
- Shock and Vibration IEC 61373 class B
- Interruptions of Voltage Supply Class S1,S2
- Supply Change Over Class C1,C2
- EMC EN 50121-3-2
