VMC 4020
12.1" Rugged Vehicle Mount Computer with Intel Atom® x7-E3950 processor, Touchscreen and IP65
Základní informace
- 12.1" XGA TFT LCD monitor with 5-wire resistive touch
- Built-in Intel Atom® x7-E3950 processor, 1.6GHz
- Aluminum die-casting and fanless design
- Analog camera x 3 (CVBS)
- Ether of completer IP65 housing, or IP65 housing without I/O part
- Automatic/manual brightness control
- Isolated CANBus 2.0 x 2
- 10/100/1000Mhz for independent ethernet x 2
- On screen F1 ~ F10 programmable function keys
- Military standard for vibration and shock
- UPS Battery & PoE 802.3af/at (optional)
- iButton and RFID for ID identification
- Micro SIM x 2
- Wide range DC input from 9V ~ 60V DC in
- Sunlight readable capability: 1,200nits LCD brightness
- One expansion port reserved
- Operating system: Windows and Linux
- CE/FCC/EMark
Specifikace
| LCD Panel | 12.1-inch TFT LCD panel with LED backlight 1024 x 768 pixels (XGA) Brightness: 1200 cd/m² (typical) Viewing angle: 170° (H):170°(V) Contrast ratio: 750:1 (typical) |
| Touch Screen Sensor | 5-wire resistant touch Anti-glare coating surface Transmission rate: 81 ± 3% |
| CPU & Chipset | Intel Atom® x7-E3950 processor dual core 1.6GHz One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB) |
| Expandable Storage | 1 x CFast 1 x 2.5" SATA SSD bay |
| Expansion | 3 x Full-size mini-PCIe socket (PCIe + USB) 1 x Full-size mini-PCIe socket (USB) 1 x CFast 2 x Micro SIM slot |

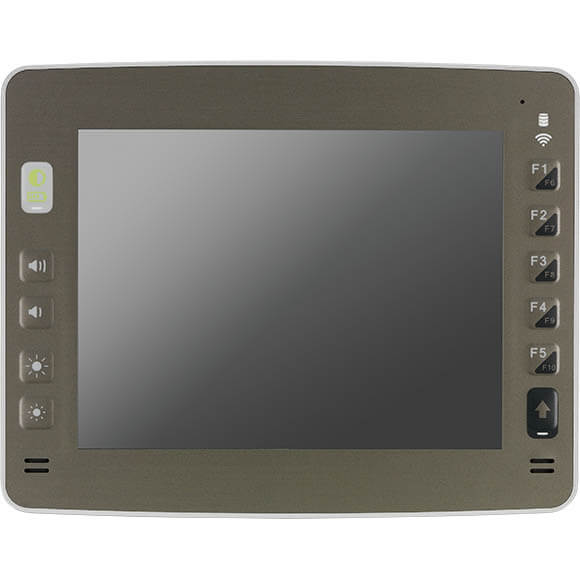

| I/O Interface-Front | LCD back light on/off Volume control (+/-) Brightness control (+/-) Light sensor 4 x LED indicators (power/battery charging, WLAN, shift, storage) F1 ~ F10 programmable function2 x Built-in 2W speakers |

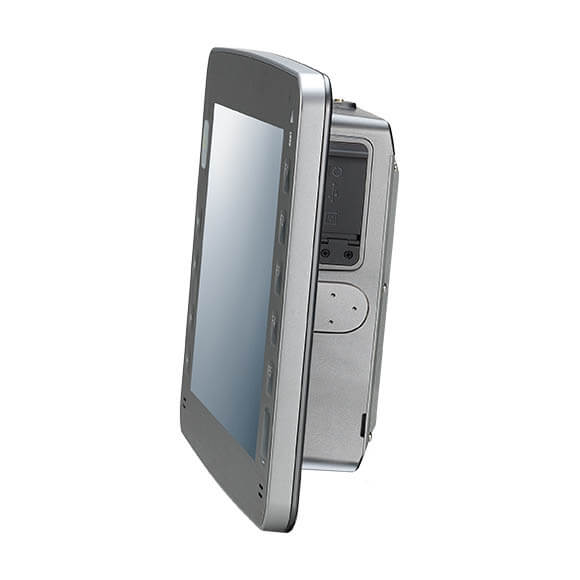

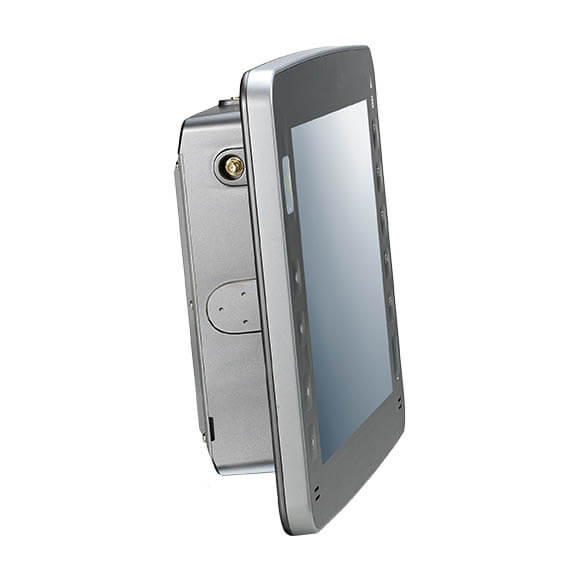

| I/O Interface-Lateral | Right Side: 1 x CFast card slot 1 x System reset button 1 x USB 2.0 host type A connector Left Side: 1 x Antenna for WWAN |

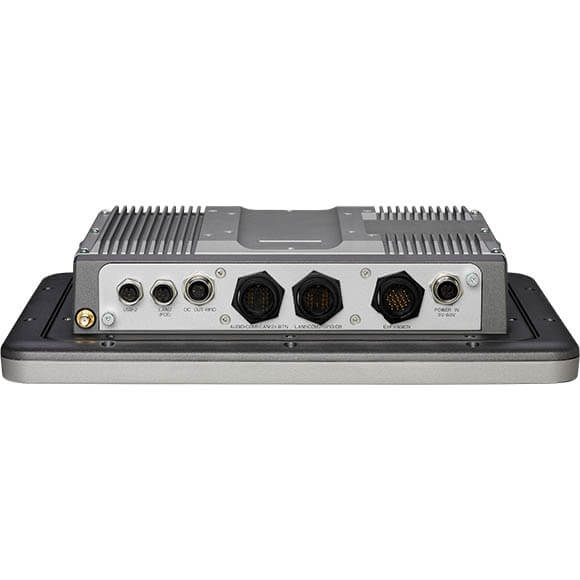

| I/O Interface-Bottom (VMC 4020-4A1, IP65) | 1 x M12 (22 pins) -1 x 10/100/1000, LAN1 (wake up on LAN) -1 x RS232 (Tx/Rx)/RS422/RS485 (RI, 5V/0.5A, 12V/0.5A) -1 x DR (Odometer + Speed ) -2 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60VDC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink: external max. 0.5A pull high1 x M12 (21-pin) -1 x Mic-in -1 x Line-out -1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -2 x Isolated CANBus 2.0B When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 -1 x iButton1 x M12 (5-pin) -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) 1 x M12 (8-pin) -Either of DC output or RFID 1 x DC output (12V/2A ) 1 x RFID (Tx/Rx, 12V/2A)1 x M12 (8-pin) -1 x 10/100/1000, LAN2 (optional for 802.3af/at) 1 x M12 (8-pin) -2 x USB Type A1 x M12 (18-pin) -Expansion port1 x GPS Antenna SMA connector (On housing) |

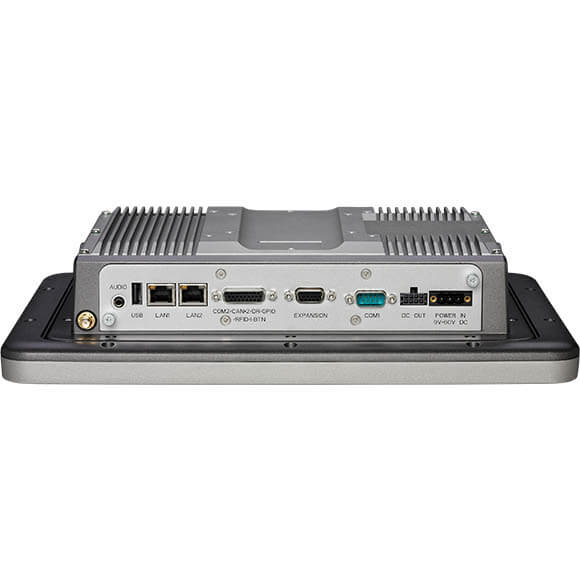

| I/O Interface-Bottom (VMC 4020-4A0, Front IP65) | 1 x Mic in and Line out 2 x RJ45 10/100/1000 -LAN1, wake up on LAN -LAN2, optional for 802.3at 1 x USB type A 1 x DB9 full RS232/422/485 (RI, 5V/0.5A, 12V/05A) 1 x 26 pins connector: -1 x Full RS232/422/485 (RI, 5V/0.5A, 12V/05A) -1 x RFID ( Tx/Rx ) -2 x Isolated CAN 2.0B -1 x J1939/ISO15765-4 or J1708 (CAN05 or CAN06) When installing CAN06, CAN2 becomes J1939/ISO15675-4 When installing CAN05, CAN2 becomes J1708 -1 x DR (Odometer + Speed) -1 x iButton -1 x GPI Source: 9V ~ 60V-in (default) Sink: external 0V ~ 60DC pull-high selected by software settings Input High "1" Voltage: 3.3 ~ 60 VDC Input Low "0" Voltage: 0 ~ 2 VDC -2 x GPO Source: 9V ~ 60V-in (default) 12V/6mA, 24V/12mA, 36V/18mA, 48V/24mA, 60V/30mA Sink:external external max. 0.5A pull high 1 x DB15 for expansion port 1 x 3-pin terminal block -9V ~ 60V DC in (UPS battery: 12V, 24V, 36V and 48V) |
| I/O Interface-Top | 2 x Antenna for Wi-Fi |

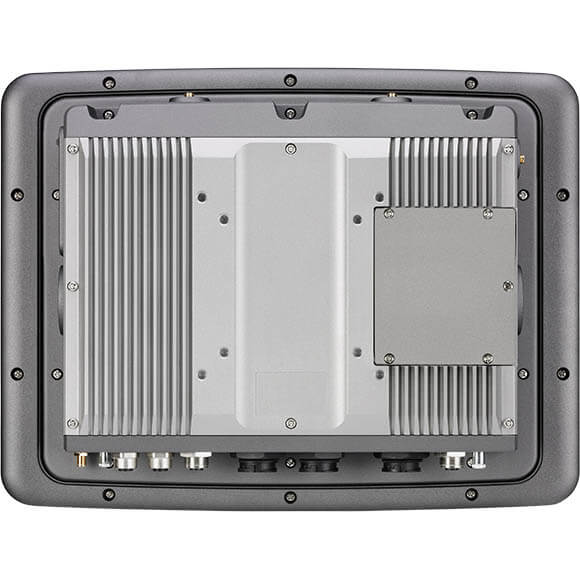

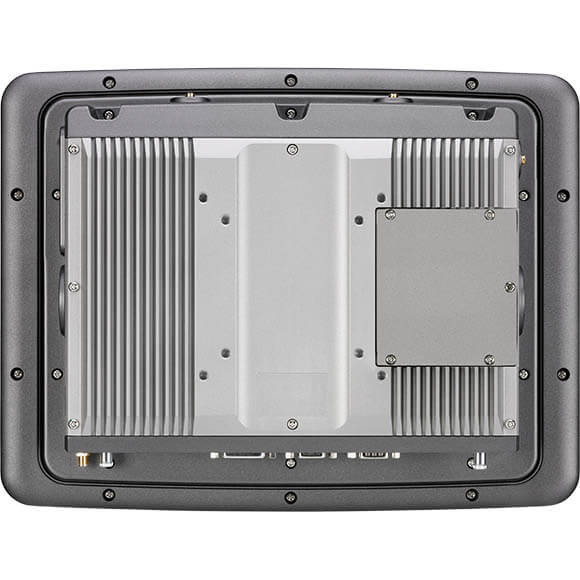

| Mechanical | Cooling system: Fanless Enclosure: Aluminum die castig Mounting: VESA 75 Ingress protection: Complete IP65, or IP65 without covering the bottom Dimension: 339.97mm(W) x 261.97mm(H) x 75.10mm(D) Weight: 5kg |
| Power Management | 9V ~ 60V DC in (UPS: 12V, 24V, 36V and 48V) Reverse protection/over voltage protection/under voltage protection Ignition On/O control & programmable On/O delay timing Wake up by LAN1, SMS, RTC and ignition |
| Environment | Operating temperatures: Ambient with air -30°C to 60°C Storage temperatures: -30°C to 70°C Relative humidity: 10% to 90% (non-condensing) Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers = 40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment = 75g |
| Operating System | Windows 10 Linux: YOCTO (by request) |
| Standards/Certifications | CE/FCC class B/E13 |
