VMC 3020

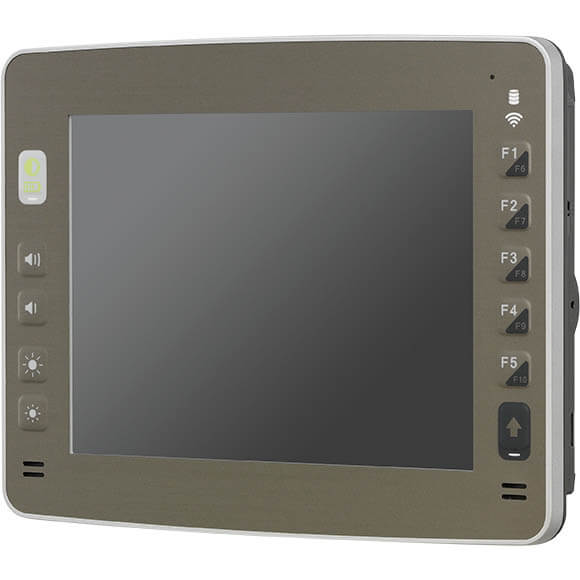

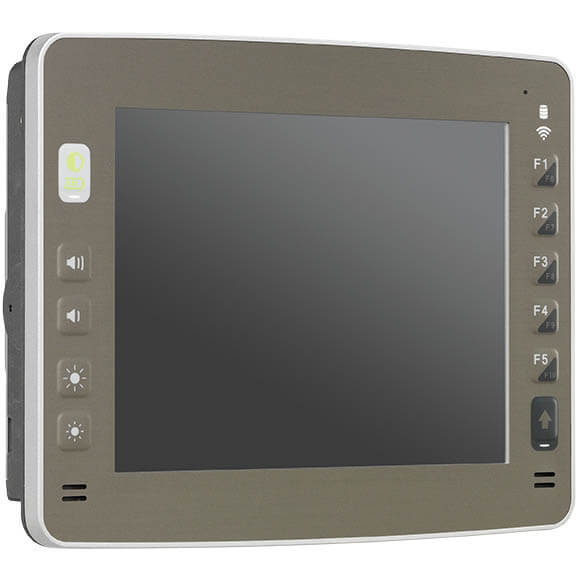

10.4" Rugged Vehicle Mount Computer with Intel Atom® x5-E3930 processor, Touchscreen and IP65

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 10.4" XGA TFT LCD monitor with 5-wire resistive touch
  • Aluminum die-casting and fanless design
  • Built-in Intel Atom® x5-E3930 processor, 1.8GHz
  • Automatic/manual brightness control
  • Touch with heater supported
  • On screen F1 ~ F10 programmable function keys
  • Powered USB and COM (5V/12V, 1.5A) for accessories
  • Military standard for vibration and shock
  • UPS Battery supported
  • iButton and RFID for ID identification
  • Wide range DC input from 9V~60V DC in
  • Sunlight readable capability: 1,200nits LCD brightness
  • Operating system: Windows and Linux
  • CE/FCC/EMark


LCD Panel 10.4-inch TFT LCD panel with LED backlight
1024 x 768 pixels (XGA)
Brightness: 1200 cd/m² (typical)
Viewing angle: 140° (H):120°(V)
Contrast ratio: 500:1 (typical)
Touch Screen Sensor 5-wire resistant touch
Anti-glare coating surface
Transmission rate: 81 ± 3%
CPU & Chipset Intel Atom® x5-E3930 processor dual core 1.8GHz
Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (default: 4GB)
Expandable Storage 1 x CFast
1 x 2.5" SATA SSD bay
Expansion 1 x half-size mini-PCIe socket (PCIe + USB) for WLAN option
1 x full-size mini-PCIe socket (USB) x 1 for WWAN option
1 x M.2 key-E (PCIe + SDIO + UART + USB) for WLAN option
1 x SIM slot

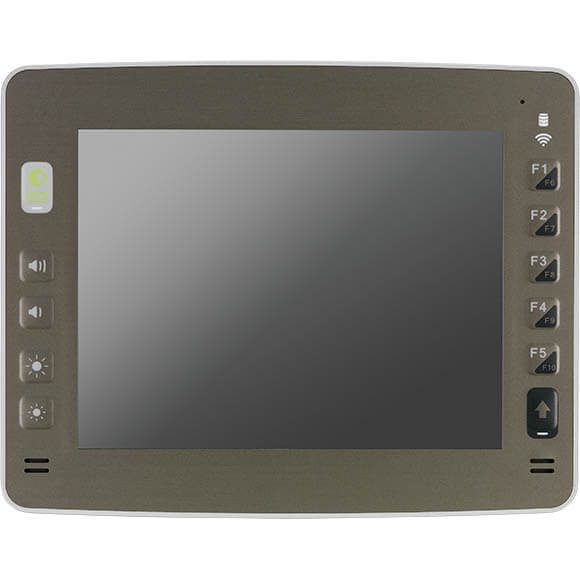

I/O Interface-Front 5 x on screen display buttons
Power on/off
Volume control (+/-)
Brightness control (+/-)
Light sensor
4 x LED indicators (power/battery charging, WLAN, shift, storage)
F1 ~ F10 programmable function keys2 x Built-in 2W speakers
I/O Interface-Lateral Right Side:
1 x CFast card slot
System reset button
USB 2.0 host type A connector
Left Side:
1 x antenna for WWAN

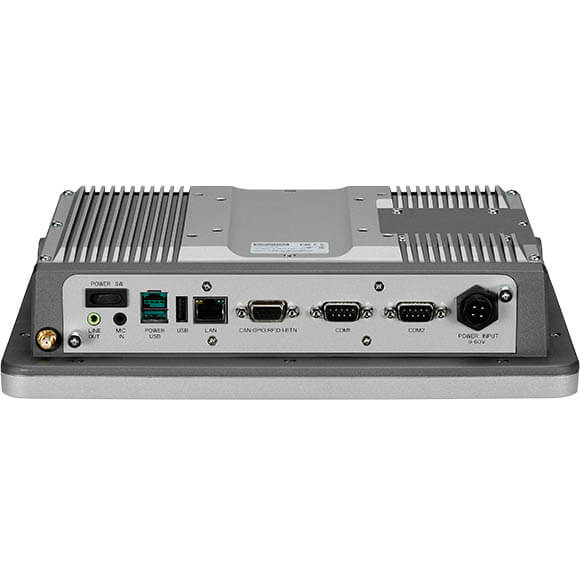

I/O Interface-Bottom 1 x Power Switch (ATX mode)
Lockable power connector (power, ignition, ground)
2 x RS232 (full signals, RI, 0V, 5V/1.5A, 12V/1.5A)
1 x DB15
- 1 x Isolated CAN 2.0B
- 1 x iButton
- 1 x RFID (12V/1A. 5V/1A, 4pin)
- 1 x Optional RS232 Tx/Rx (share with GPS UART)
- 2 x GPI
    Sink type: 5VDC TTL (default)
    Source type: 3 ~ 28VDC
- 2 x GPO
    Sink type: 5VDC TTL (default), max current: 20mA
    Source type: 3 ~ 28VDC, max current: 150mA
1 x Powered USB (5V/1.5A, 12V/1.5A)
1 x USB Type A (5V/1A)
1 x Mic-in, 1 x Line-out
1 x Antenna for GPS
I/O Interface-Top 2 x Antenna for Wi-Fi
Mechanical Cooling system: Fanless
Enclosure: Aluminum die castig

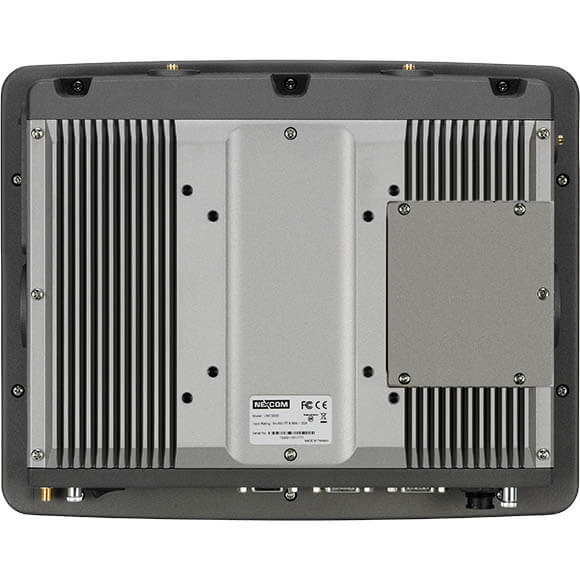

Mounting: VESA 75/100 & desktop mounting
Ingress protection: front panel IP65
Dimension: 289.98mm(W) x 229.97mm(H) x 68.70mm(D)
Weight: 3kg, 6.61lb
Power Management 9V~60V DC in (UPS: 12V, 24V, 36V and 48V)
Reverse protection/over voltage protection/under voltage protection
Ignition On/Off control & programmable On/Off delay timing
Wake up by SMS, RTC and ignition
Operating System Windows 10
Linux: YOCTO (by request)
Environment Operating temperatures: Ambient with air -30°C to 60°C
Storage temperatures: -30°C to 70°C
Relative humidity: 10% to 90% (non-condensing)
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers= 20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment= 75g
Standards/Certifications CE/FCC class B/E13
