VMC 1100

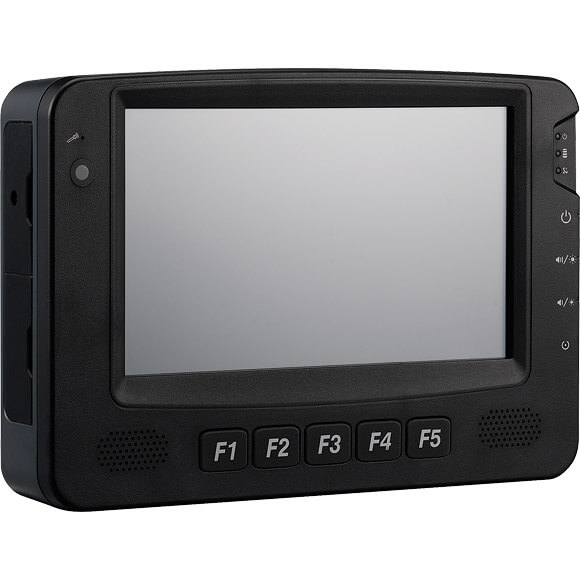

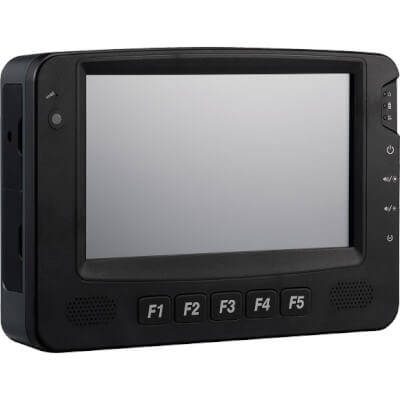

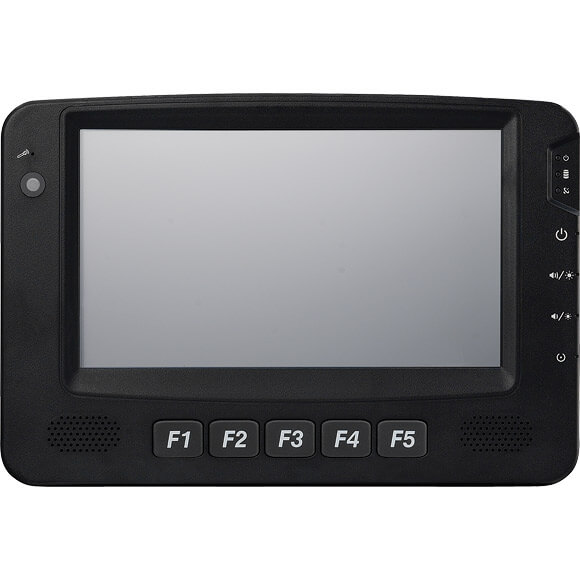

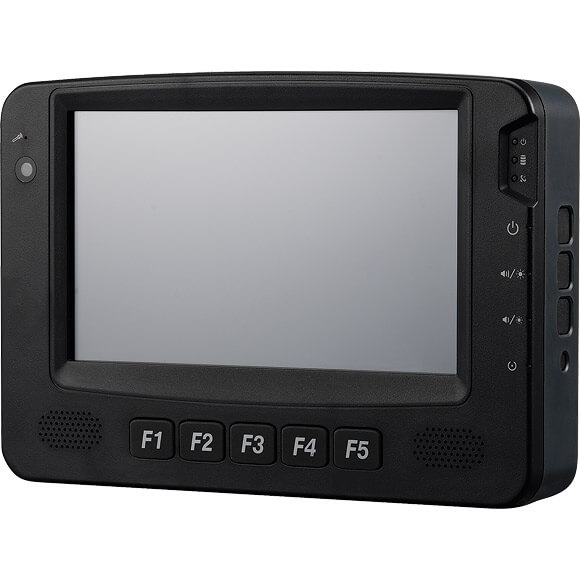

7" All-In-One Vehicle Computer with Touch Screen and Multifunctional Tracker

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 7" WVGA TFT LCD Monitor with resistive touch screen
  • Built-in Intel Atom® Dual Core E3825 1.33GHz
  • Compact and fanless design
  • On screen programmable F1 ~ F5 function keys
  • Support GPS/WWAN tracker function for car-safety
  • RFID for ID identification
  • Built-in GPS (Option: Dead Reckoning Support)
  • GPS/WLAN/WWAN for wireless communication
  • Dual CAN bus 2.0B and optional OBDII (SAE J1939) for car diagnostic
  • Wide Range DC input from 9 ~ 36V
  • Military standard for vibration and shock
  • SAE J1113, ISO7637-2 and SAE J1455 conformity for power design
  • CE/FCC/EMark


General Cooling System: Fanless
Enclosure: Plastic PC + ABS with aluminum die casting heatsink
Mounting: Support VESA 75, stand mounting
Four SMA Type antenna connectors of BT/Wi-Fi/WWAN/GPS
Power Input: 9 ~ 36VDC input with Ignition
Power Consumption: 26W
Ingress Protection: Front panel IP54
Dimension: 213mm (W) x 145mm (H) x 50mm (D)(8.3" x 5.7" x 1.9")
N.W: 1.3Kg
G.W: 1.6Kg
LCD Panel 7-inch TFT LCD Panel with LED Backlight
800 x 480 pixels (WVGA)
Brightness: 400 cd/m² (typical)
Contrast ratio: 600:1 (typical)
Touch Screen Sensor 4-wire resistant touch
Anti-glare coating surface
Transmission rate: 78 ± 3%
CPU & Chipset Intel® Atom™ Dual Core E3825 1.33GHz
Memory One 204-pin DDR3L 1600MHz SO-DIMM slot (up to 4GB)
- Default 2GB
Expandable Storage 1 x SATAIII SATA DOM Slot (available option 16GB / 32GB / 64GB)
Expansion 1 x Half mini-PCIe socket (PCIe + USB) for WLAN option
1 x mini-PCIe socket ((USB + UART) for WWAN option)
1 x External module for OBD/RFID module option
I/O Interface-Front F1 ~ F5 functions keyLight Sensor
Internal Mic-in
2 x Built-in 2W speakers
3 x LED indicators (Power mode, Storage and WWAN status)
I/O Interface-Lateral Right side
- 1 x Micro SD card socket
- 1 x SIM card socket
- 1 x USB 3.0 host type A connector
- 1 x Mic-in, Line-out
Left side
- 1 x Power button
- 1 x System reset button
- Volume up/down or Brightness up/dow

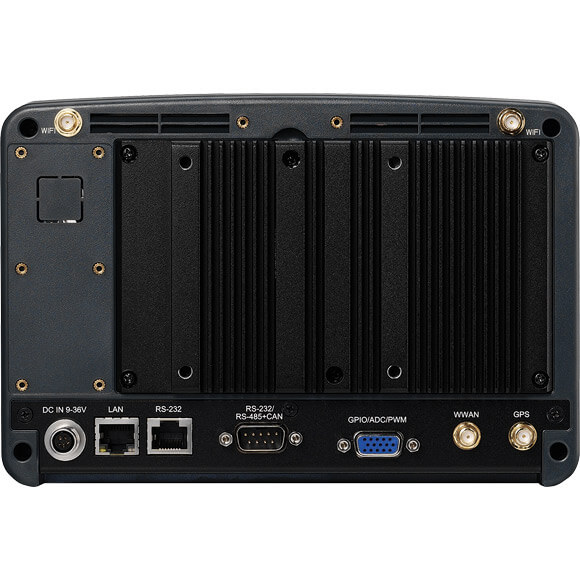

I/O Interface-Rear 1 x 5-pin Circular connector for Power/Ignition input
1 x RJ45 for LAN
1 x RJ45 for Full RS-232 with 0V/5V/12V power supply (0.5A)
1 x DB9 (Male) for
- RX/TX or RS-485
- 2 x CAN Bus 2.0
1 x DB15 (Female) for
- GPS dead reckoning interface (optional)
- 2 x PWM, 2 x Analog Input, 2 x GPO, 2 x GPI
Analog Input requirement for Voltages are measured
Channel: 8
Voltage range: 0 ~ 38V
Resolution: 8 bit
Analog Input requirement for Frequency, Speed
Square wave
Frequency signal offset voltage range: 0 ~ 15VDC
Protection: +/- 500V spike
Frequency signal duty cycle range: 10% ~ 90%
Communication Module 1 x u-blox NEO-M8N module
(support GPS/Glonass/QZSS/Galileo/Beidou)
1 x WLAN or Bluetooth module for optional
1 x WWAN module for optional
Power Management Selectable boot-up & shut-down voltage for low power protection
HW design ready for 8-level delay time on/off at user's self configuration
Power on/off ignition, software detectable
Support S3 and S4 suspend mode; wake on RTC and SMS
Operating System Windows 8 Professional, WES8
Windows 7, WES7
Linux Fedora (kernel V3.2.0)
Environment Operating temperatures: Ambient with air -20°C to 60°C
Storage temperatures: -30°C to 80°C
Relative humidity: 10% to 95% (non-condensing)
Vibration (random): 3g @5 ~ 500HzVibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers=20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g
Power Design & Protection Load dump and inductive load protection
Cold cranking protection
Transient voltage protection
Electrostatic discharge protection
Standards/Certifications EMC
- CE, FCC class B, E-Mark
- SAE J1113
- SAE J1455
- ISO 7637-2
- EN 60950-1 LVD
