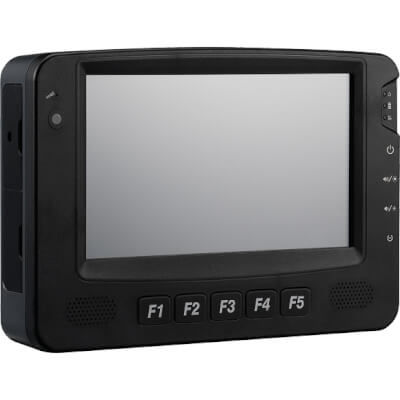

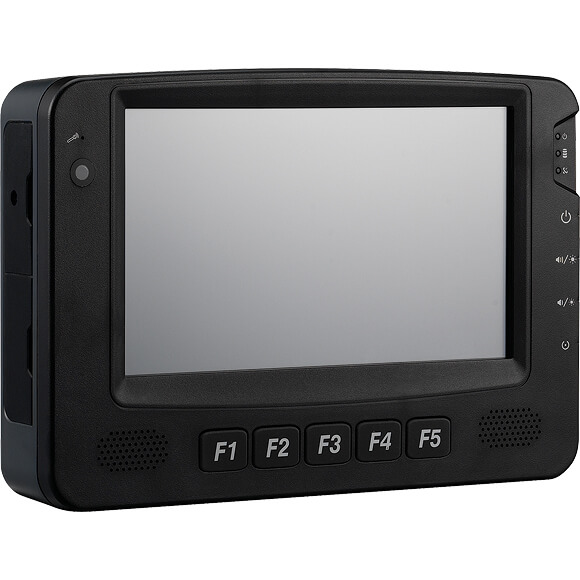

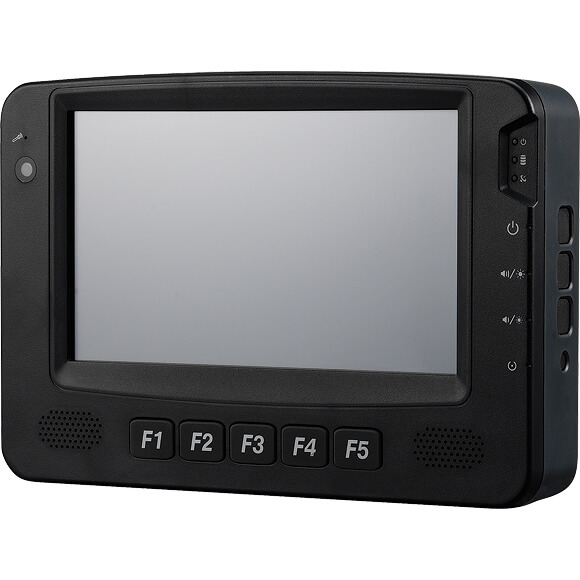

VMC 110/111
7" Mobile Data Terminal with ARM® Cortex®-A9 platform
Základní informace
- 7" 1024 x 600 TFT LCD monitor with resistor touch screen
- ARM® Cortex®-A9 Dual Core Processor with 1GHz frequency
- Compact and fanless design
- On screen F1 ~ F5 programmable function keys
- Linux and Android operating system
- GPS/Wi-Fi/3G/LTE supported (Dead Reckoning included)
- iButton & RFID for ID identification
- Dual CAN Bus 2.0B
- OBDII (ISO15765-4)/SAE J1939 protocol
- Wide Range DC input from 9 ~ 36V
- SW Utility for function demonstration on Android platform
- CE/FCC/Emark
Specifikace
| LCD Panel | 7-inch TFT LCD Panel with LED Backlight 1024 x 600 pixels Brightness: 500 cd/m² (typical) Contrast ratio: 800:1 (typical) Viewing angle: 150(H), 145(V) |
| Touch Screen | 4-wire resistant touch Anti-glare coating surface Transmission rate: 80% ± 3% |
| CPU & Chipset | ARM® Cortex®-A9 Processor with 1GHz frequency Freescale Dual Core |
| Memory | On-board DDR3L 2GB |
| Storage | 1 x Micro SDHC Slot EMMC: 8G on board |
| Expansion | 1 x half-size mini-PCIe (PCIe + USB) for WLAN 1 x full-size mini-PCIe (USB + UART) for WWAN OBDII: ISO15765-4 & SAE J1939 (Default: None, BOM optional) RFID (optional) |

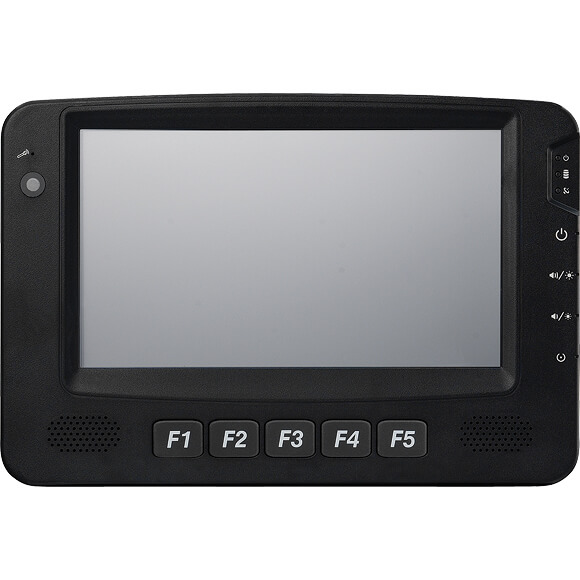

| I/O Interface-Front | F1 ~ F5 programmable function keys Light Sensor Internal Mic-in 2 x Built-in 2W speakers 3 x LED indicators (Power, Storage and WWAN) |

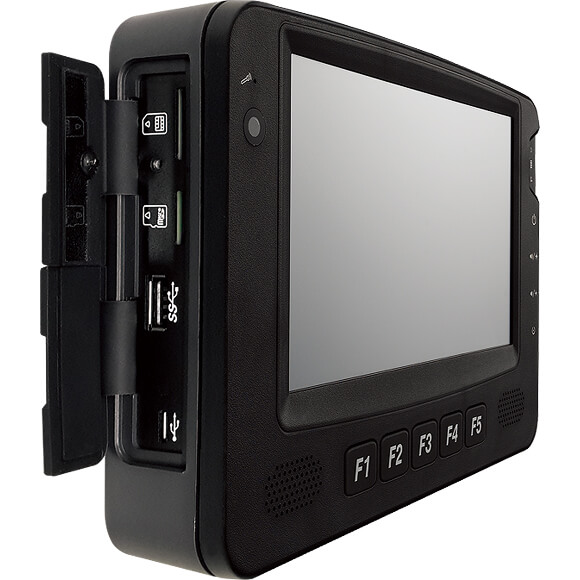

| I/O Interface-Lateral | Right side - 1 x SIM card slot - 1 x Micro SD card slot - 1 x USB 2.0 type A - 1 x micro USB OTG for maintenance Left side - 1 x Power button - 1 x Volume up/down - 1 x Brightness up/down - 1 x System reset button |

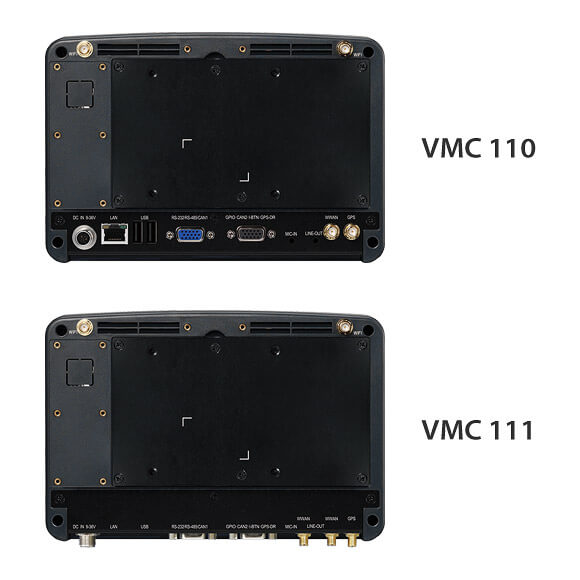

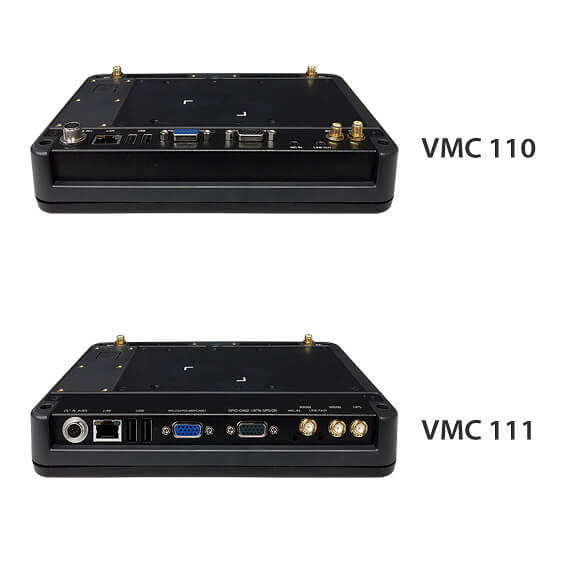

| I/O Interface-Rear/Bottom | 1 x lockable power input with ignition 1 x RJ45 for LAN2 x USB 2.0 Type A - DB-15 connector - Full RS-232 - RS-232/485 - CAN1 2.0B DB-15 connector - GPI x 3 Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC - GPO x 3 Sink type: 5VDC TTL (default), max current: 20mA Source type: 3 ~28VDC, max. current: 150mA - GPS DR (Speed, direction, GND) - CAN2 2.0B (Default) & (BOM optonal for OBD II (ISO 15765-4 & J1939)) - iButton 1 x Mic-in 1 x Line-out 3 x Antenna on I/O - Rear: 1 x GPS, 1 x WWAN - Bottom: 1 x GPS, 2 x WWAN2 x Antenna on housing for Wi-Fi |
| Mechanical | Cooling System: Fanless Enclosure: Plastic PC/ABS + Metal heat-sink Mounting: VESA 75/100 & Desktop mounting Ingress Protection: Front panel IP54 Dimension: 212.9mm (W) x 144.97mm (H) x 40mm (D)(8.4" x 5.7" x 1.6") Weight: 1.3kg |
| Power Management | 9V~36V DC input Selectable boot-up & shut-down voltage Ignition: 8-level delay time on/off Reverse protection/over-voltage protection/low-voltage protection Wake up by SMS/RTC/ignition |
| Operating System | Linux YOCTO 2.0 by request Android 5.1 |
| Environment | Operating temperatures: Ambient with air -20°C to 70°C Storage temperatures: -30°C to 80°C Relative humidity: 10% to 90% (non-condensing) Vibration Vibration test: IEC 60068-2-64, 2.5G Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24 Shock MIL-STD-810G, 516.6 Procedure 1, trucks and semi-trailers=40g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g |
| Certification | CE/FCC class B/E-Mark |
