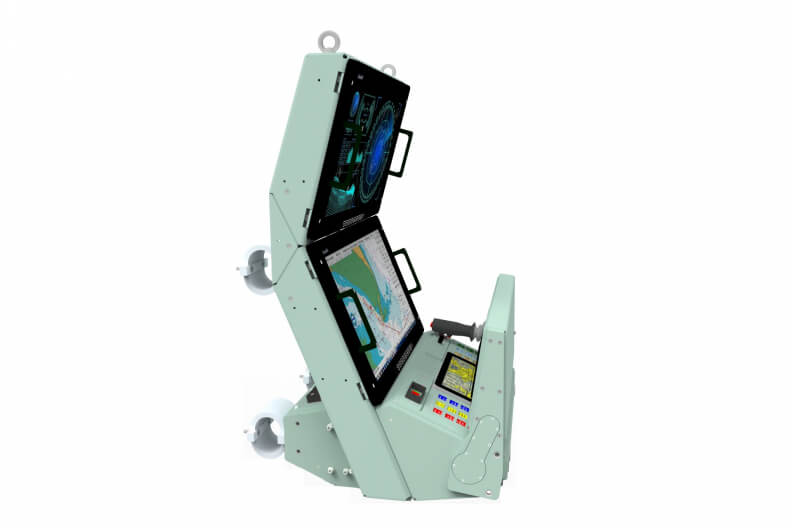

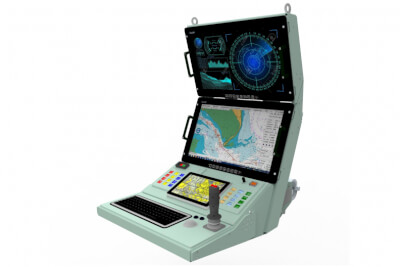

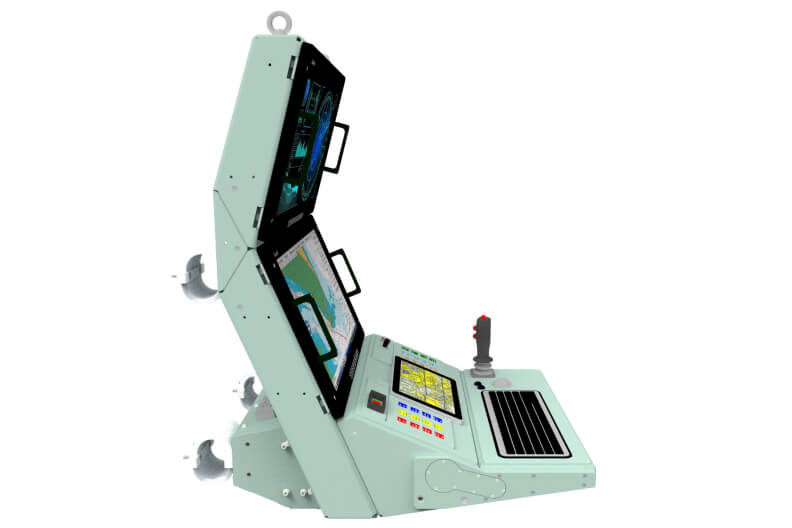

Vista 500 / 700 Compact
Vista 5/700 Compact, Shelter/Naval rugged consoles for mission-critical environments
Základní informace
ScioTeq Display solution
Depending on your application, you can opt for one or two rugged display(s) and an additional 10.1” Rugged Multi-touch input terminal (1280x800 resolution). The main displays can be provided with the P-CAP Multi-touch touchscreen technology.
Ergonomic Console desktop
ScioTeq's Vista 700 Compact consoles provide an ergonomic Human Machine Interface based on a customizable desktop including :
Fixed part:
- 10.1” Rugged touch input terminal (1280x800 resolution) equipped with Multi-touch touchscreen and ATOM processor unit.
- Stereo audio speakers/amplifier linked to main computer audio function
- Optional secured OLED pushbutton modules (SMARTKEYS) and Audio/Headset devices
Foldable part:
- Rugged backlit keyboard and ergonomic 2”-3 buttons trackball
- Optional Joystick
Two System architectures
Depending of the distributed computing systems architecture, the Vista Compact console is delivered in two versions:
- VISTA500 Compact console: Zero-clients simply provide DP/USB HMI for remote computing (no computer inside).
- VISTA700 Compact console: Operator console provide dedicated graphics and video processing horsepower for user specific visualization operations such as windowing, rendering, and mixing of multiple data and sensor sources. The integrated computer platform is based on the sixth Generation Intel® Core™ i7 processors with DDR4 memory technology.
- The console is wall-mounted or a pedestal option canbe provided
Specifikace
| VISTA 500 COMPACT | |
|---|---|
| External interfaces | Up to 2x Display Port (DP) inputs, USB/Ethernet ports for input devices, 1x TID Ethernet Port 1x Power Input |
| VISTA 700 COMPACT | |
|---|---|
| Computer performance | Quad Core Intel® Core™ i7-6700 3.4 GHz with 16GB system memory (up to 32GB) SATA3 2.5” 512Go SSD (system disk) Windows 7/10 - 64 bits and Linux CentOS - 64bits |
| Graphics | Intel® HD Graphics 530 with up to three graphics outputs |
| Rear connections | 2x 1Gb Ethernet for main computer and 2x 1Gb Ethernet if Touch Input Terminal option 2x RS422/232 ports 1x Power Input |
| VISTA 500-700 COMPACT | |
|---|---|
| Input devices | Foldable desktop: Rugged backlit keyboard and Trackball, Joystick in option Stereo Speakers Optional multitouch touchscreen on the main displays, one or two Smartkey modules Optional audio headset connector and external audio input |
| Displays | 1x or 2x main displays + 1x Touch Input Terminal inside the desktop (10.1’’ 1280x800 with P-CAP) |
| Dimensions | Top/Down: (WxHxD mm): 600x930x740 (excluding shock absorbers) Single Head: (WxHxD mm): 600x570x740 (excluding shock absorbers) |
| Power | 100-240 VAC autorange, 50/60Hz Power Consumption: 300W typical |
| Weight | Top Down version: 65Kg Single Head version: 50 Kg |
| System availability | MTBF: Vista700: GF H24 typ. 6500h @ 25°C (depending of the final configuration) MTBF: Vista500: GF H24 typ. 11000h @ 25°C (depending of the final configuration) |
| Altitude/Low pressure operating |
MIL-STD-810G Meth 500.4 Operating Up to 15000 ft (570 mBar) |
| Shocks Operating | MIL-STD-810G Soft mount: 50 g – 6 ms half or 40 g - 11ms half sine Hard-mount: 20 g – 12.5 ms half sine |
| Vibrations operating | MIL-STD-167-1 Type 1 MIL-STD-810G 514.6 Cat21, 1-100Hz/0.001g²/Hz (0.3gRMS), 2h/axis |
| Vibrations during transportation Non operating |
MIL-STD-810 G, Method 514.6, procedure ı & ıı, category 4: truck highways: 1.0g RMS 10-500Hz vertical, 0.2g RMS 10-500Hz transversal, 0.7g RMS 10-500Hz longitudinal, 1h/axe for 1609km |
| EMI/EMC | CE directive CEM 2004/108/EEC refers to EMI directive. 2006/95/EEC refers to Low Voltage Safety directive MIL-STD-461G Navy ships (surface ships & submarines) |
| Temperature | JSS55555-2000, High temperature, Test# 17, Procedure 6, Test condition M +55°C Operating +85°C 16h Storage, no operating Low temperature,test# 20, Procedure 4, test condition J & K -20°C operating (depending of computer configuration) -30°C 16h storage, no operating |
| Humidity | MIL-STD-810G 95% @ 30°C non condensing according MIL-STD-810G Meth 507.5 fig 507.5-7 |
| Drip Proof | MIL-STD-810G: Meth 506.5 Proc.III Tilting up to 45° |
| Fungus/Salt fog | MIL-STD-810G Meth 508.6: no materials that would promote fungus growth are used. Meth 509.5: test on separate parts |
| Acoustic noise | MIL-STD-740-1 <50dbA @ 1 m |
