Vista 4500

Vista 4500, Multi-function console.

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Networked video and radar visualization solutions for lower cost of ownership and redundancy
  • Affordable yet powerful and modular solution for Land-based Shelter and Naval Multi-Function consoles
  • Slim, compact and modular design, allowing multi-display configurations (single-head, top/down,) and future display integration
  • Enhanced ergonomics for better user comfort
  • Low risk solution with already qualified product line
  • ScioTeq organization with extensive experience for long term support requirements
  • One stop shop console offering with networked visualization and recording solutions

ScioTeq's Vista 4500 comes in two versions:

  • Vista 4500E:

Multi-function console featuring advanced and expandable computing based on the PICMG1.3 computer form factor (PCI-express and PCI
extension slots). The Vista 4500E console is highly cost-effective and fit for a full range of Command and Control applications.

  • Vista 4500R:

Multi-function console featuring expandable computing to support up to 10U of 19” rackable computer configurations (VME, cPCI multi-processor configuration).

ScioTeq's Vista 4500 consoles are fully network capable, so they successfully address the needs of modern CIC rooms, where reduced manpower and low cost of ownership are of utmost importance. Networked visualization makes it possible to visualize any real-time data anywhere in the CIC room and offers utmost flexibility, redundancy and survivability.

The Vista 4500 console includes ScioTeq's radar solution as well as ScioTeq's networked video streaming and recording options.



From 21.3” 1600x1200, 23" 1920x1080 or 32” 3840x2160 displays. Side by Side, Top/down

Optional PCAP Touchscreen

Desk Foldable.
Large range of input devices supported (Keyboard, track ball, Smartkey, joystick, throttle)
Human factors MIL-STD-1472
Touch Input display Optional 10.1” 1280x800 LCD terminal with multi-touch screen

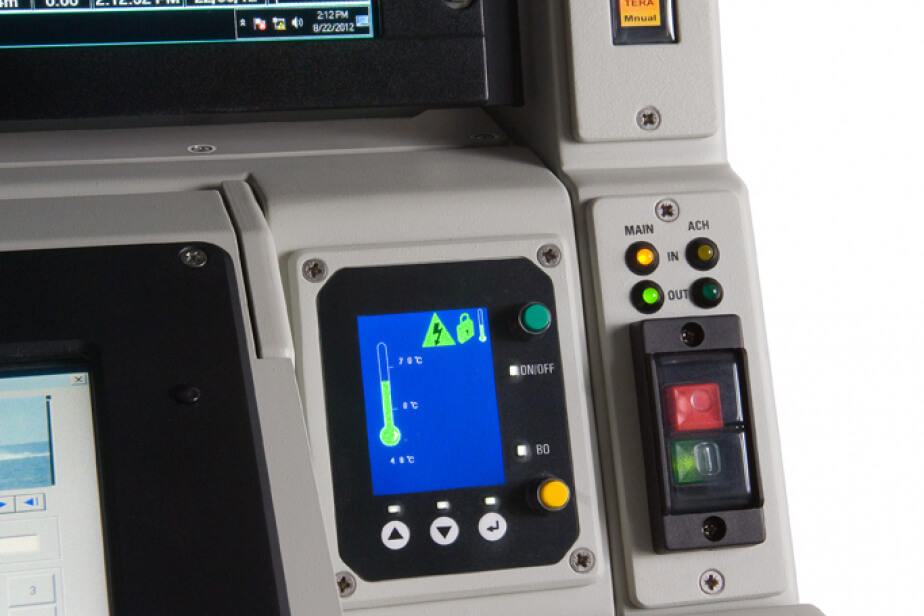

Control terminal 2.7” LCD terminal for health status, control buttons
Extensions Function keys, external USB port, audio, ...

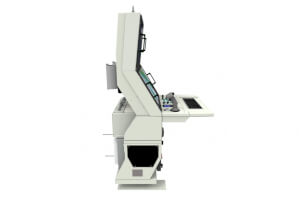

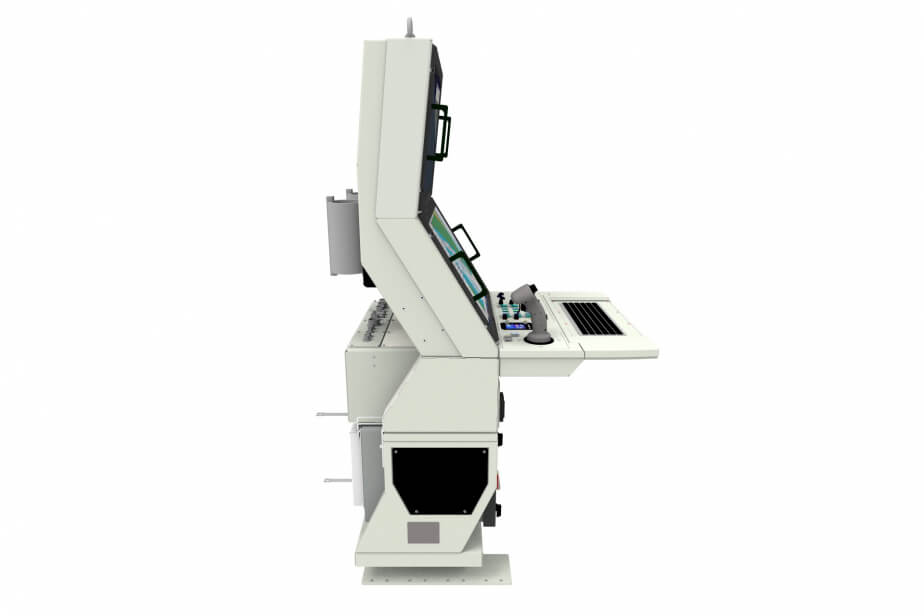

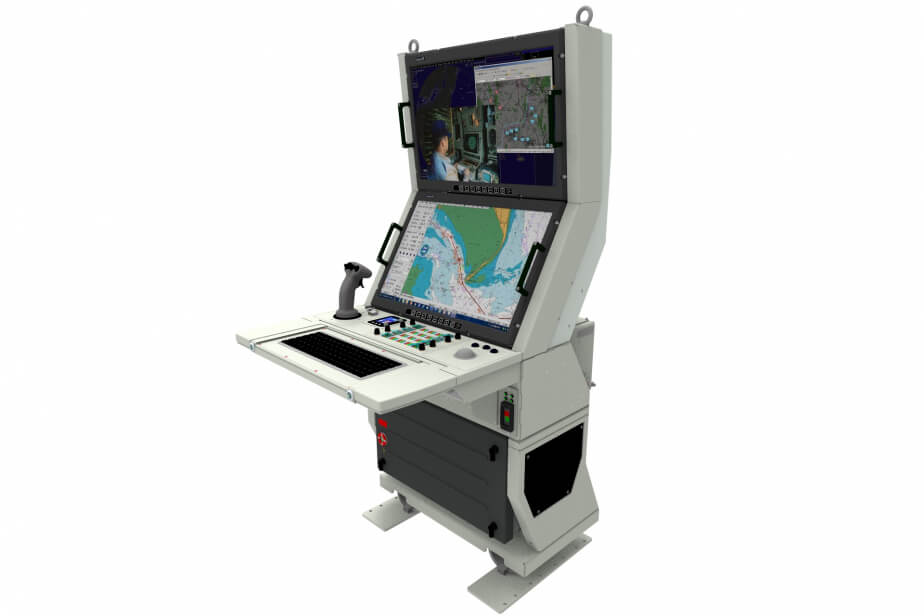

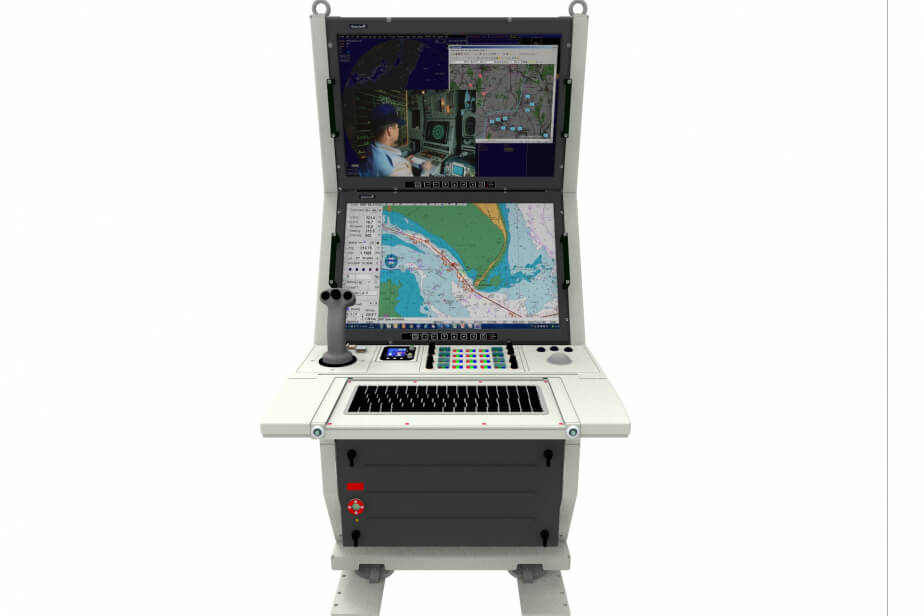

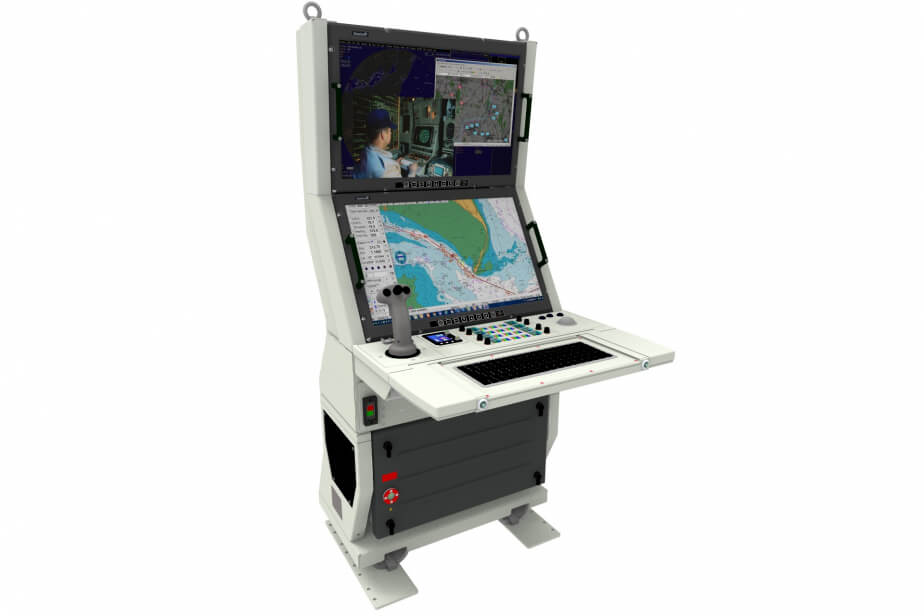

Dimensions and weight Top/Down: 650 x 1540 x 960 mm max, Weight < 160 kg

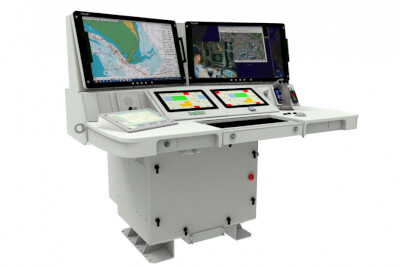

Side by Side: 1220 x 1350 x 960 mm max, Weight < 190 kg
Single Head: 650 x 1350 x 960 mm max, Weight < 140 kg
Power 115-220 VAC, 50-60 Hz
CPU PICMG1.3, Intel® Core™ i7-6700 3.4GHz, 16GB memory (up to 32GB)
Graphics accelerator PCIe 3.0 x16 NVIDIA high-performance graphics board
Storage SATA SSD 512GB to 1TB system disk
Operating temperature -10°C to 55° C
Storage temperature -35° C to 70° C
Shock MIL-STD-810G
Vibration MIL-STD-167-1A
Humidity 95% at 40°C non-condensing
Degree of enclosure EN60529, up to 15°
Acoustic Noise MIL-STD-740-1 (SH) Grade C, 54 dB(A) @ 1m
Electrical standard MIL-STD-1399 Section 300A, STANAG 1008 ed9
