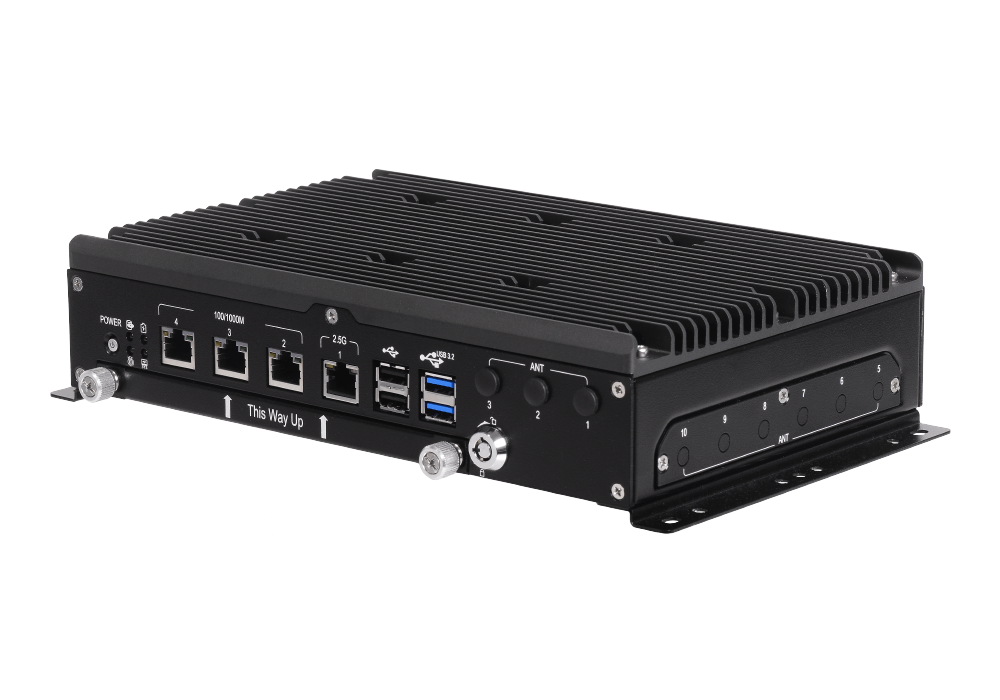

VBOX-3630

Intel® 11th Gen Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  •  Intel® 11th Gen Core™ i7-1185G7E
  • Supports Dual 5G / LTE, GPS, Wi-Fi / BT, and CAN Bus Modules
  • Wide Range Input 9V - 60VDC with Ignition Control for EV Installations
  • 1 x 2.5GbE + 3 x GbE LAN Port with M12X Connectors
  • Supports 4 Independent Display Outputs: 2 x HDMI, 1 x DP, 1 x DVI-D
  • Supports Optional Battery Backup Kit
  • E13 & EN50155 Certified

VBOX-3630 is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. VBOX-3630 features an ultra-compact design measuring 250 x 165 x 55mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630 can effectively support cars in extreme weather and operating conditions, such as ????snowplows, trucks, buses, taxis, and forklifts.

Specifikace

CPU 11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz
Intel® Celeron® 6305E up to 1.8GHz
Memory 2x DDR4-3200 SO-DIMM Up to 64GB
LAN Chipset 1 x Intel® 1255-LM 2.5GbE Supports mGig
Supports iAMT and PXE LAN Boot ROM
3 x Intel® 1210-AT Gigabit Ethernet
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
TPM 2.0
Power Input 9~60 VDC Input (24 ~ 60 VDC Input for PoE Connections)
Power Protection Automatics Recovery Short Circuit Protection
Power Mgmt. Power Ignition for Vehicle
Power Off Control Power off Delay Time Setting by Software
Battery (UPS) * Internal Battery Kit for 10 Mins Operating (Optional. Discharge Temp. -20~60°C)
Patent No. : M447854 - Build-in Battery
*UPS backup time varies depending on actual overall system power consumption.
Graphics Intel® Iris® Xe Graphics / Intel® UHD Graphics
Resolution Max Resolution (HDMI2.0b): 4096 x 2304@60Hz
Max Resolution (DP): 4096 x 2304@60Hz
Type 2 x 2.5" Drive Bay for SATA Type HDD/SSD, support RAID 0, 1, 5
1 x M.2 2280 Key M for NVMe SSD*
*Additional thermal heatsink is required. Please contact our sales representatives for a suitable type.
Serial Port 4 X RS-232/422/485 (Auto Direction Control) (3 Ports for M12 Model)
USB Port 2 x USB 3.2 Gen 2 (Type A)
2 x USB 2.0 (Type A)
LAN Port 4 x RJ45 (1 x 2.5GbE, 3 x GbE)
(Option: M12 connector and/or IEEE 802.3af/at PoE w/ Max. 60W power budget)
Video Port 2 x HDMI, 1 x DP, 1 x DVI-D* (Supports 4 Independent Display)
*Use only Single Link DVI Cables.
DIO Port 6 x DI (5~60V) and 4 x DO (5V/100mA)
(option: 2 x 12V/1A output)
Audio 1 x Line-out and 1 x Mic-in (option: Line-in)
SIM Card Socket 2 x SIM Card Sockets Supported Onboard with Eject
Expansion Bus 1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card)
1 x M.2 2230 Key A-E, 1 x mPCIe Full Size (USB function only)
Antenna 7 x Pre-cut Holes for External SMA Antenna
Dimensions 250(L) x 165(W) x 55(H) mm
Weight 2500g (bare-bone)
Relative Humidity 10% RH – 90% RH (non-condensing)
Operating Temp. -40 ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling
Storage Temp. -40 ~ 85°C
Certifications CE, FCC Class A, E13, EN50155. EN45545-2 (R25)
Part Number VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)
Description Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer
State of Origin Made in Taiwan
