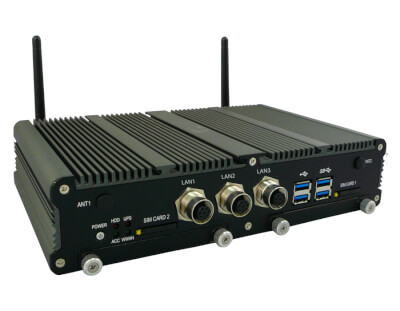

VBOX-3620-M12X
Intel Gen6 Core i7-6600U CPU with Isolated Input 3 x GbE and 1 x iAMT In-Vehicle Computer
Základní informace
- Intel Core i7-6600U / i5-6300U / i3-6100U
- Wireless support LTE, 3.5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
- 3 x GbE Including 1 with iAMT
- Isolated wide Input Range 9 - 36VDC
- Smarter Vehicle Power Ignition for Variety Vehicle
- Dual Hot Swappable SATA bays & 1 x SATA DOM, RAID 0, 1, 5
- EN50155 Tx
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz |
| Memory | 2 x SO-DIMM DDR4 up to 32GB |
| LAN Chipset | 2 x Intel I210-AT and 1 x Intel i219LM |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| POWER REQUIREMENT | |
| Power Input | 9V -36V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Battery (UPS) * | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery * With 6 x SIM card slots option cannot have battery option. |
| GRAPHICS | |
| Graphics | Intel HD Graphics 520 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0 |
| Resolution | Up to 4096 X 2304@60Hz |
| STORAGE | |
| Type | 2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 1 x SATA DOM |
| I/O | |
| Serial Port | 4 x RS-232/422/485 with Isolation (Auto Direction Control) |
| USB Port | 2 x USB 3.0 Ports, 2 x USB 2.0 Ports |
| LAN | 3 x 10/100/1000 Mb/s w/ M12 x-code (1 port with iAMT) |
| Video Port | 2 x DP, 1 x VGA (Support Triple Independent Display) |
| DIO Port | 8 x GPI and 4 x GPO w/ isolation |
| Audio | 1 x Line-out and 1 x Mic-in (Line-in optional) |
| SIM Card Socket | 2 x SIM Card Sockets supported onboard with eject 6 x SIM Card Sockets (Optional) |
| Expansion Bus | 3 x Mini-Card Slots and 1 x M.2 Slot |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions | 250 x 150 x 55 mm |
| Weight | 1900g (bare-bone) |
| Relative Humidity | 0 ~ 95% |
| Operating Temp. | -40 ~ 70°C (Default CPU 17Watt) |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, EN50155, EN50121 |
| Patent No. (Taiwan) | M447854, M448011 |
