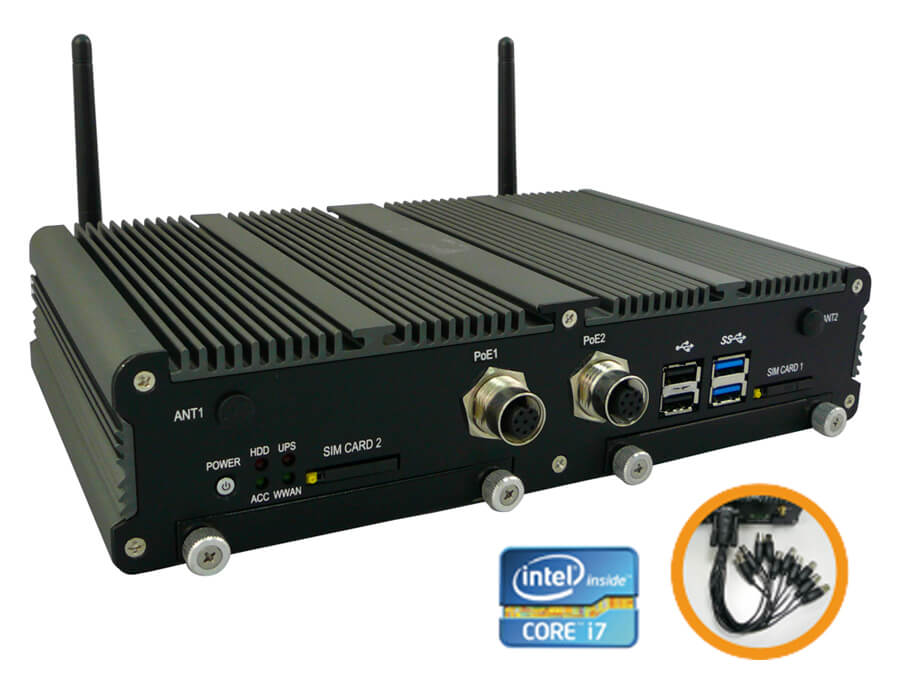

VBOX-3611-V4

Intel Gen6 Core i7-6600U Hybrid Mobile DVR Surveillance with 4 Channel Camera On-Board Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Intel Core i7-6600U
  • Wireless support LTE, 3.5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning & G-Sensor, GSM/GPRS, BT
  • 9V - 36V DC Input Smarter Vehicle Power Ignition
  • 4 Channel D1 Resolution @120fps for Analog Cameras
  • 2 IP Digital Cameras
  • Dual Hot Swappable SATA Storage, RAID 0, 1, 5
  • 1 x CAN Bus 2.0B (Optional)

Specifikace

SYSTEM
CPU Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz
Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz
Intel Gen 6 Core i3-6100U 2.3GHz
Intel Gen 6 Dual Core 3955U 2.0GHz
Memory 2 x DDR4 2133 MHz SO-DIMM up to 32GB
Watchdog Watchdog Timer Support, Offer 1 – 255 Step
DVR SPECIFICATION
Video Input 4 Channels (4 x BNC Connectors)
Video Recording Total 120FPS (NTSC), 100FPS (PAL)@D1 Real-Time
Video Display Total 120FPS (NTSC), 100FPS (PAL)@D1
Resolution Format (S/W MPEG4 or S/W H.264)
NTSC PAL
720x480x30FPS 720x576x25FPS
704x480x30FPS 704x576x25FPS
640x480x30FPS 640x576x25FPS
720x240x30FPS 720x288x25FPS
704x240x30FPS 704x288x25FPS
640x240x30FPS 360x288x25FPS
360x240x30FPS 360x288x25FPS
350x240x30FPS 352x288x25FPS
320x240x30FPS 320x288x25FPS
Audio Input 1 Channel
Audio Format MONO / 8 ~16BITS / 8000~48000HZ
Software SDK for Windows XP, 7, Linux Ubuntu 14.04 above
STORAGE
Type 2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5
1 x SATA DOM
I/O
Serial Port 3 x RS-232 (2 with RS-485 (Auto Direction Control))
USB Port 2 x USB 3.0 Ports, 2 x USB 2.0 Ports
LAN 2 x RJ45 Ports for GbE
Video Port 1 x VGA, 1 x DVI-I and 1 x HDMI
DIO Port 4 in and 4 out
Audio 1 x Line-out and 1 x Mic-in (Line-in optional)
SIM Card Socket 2 x SIM Card Sockets Supported Onboard with eject
POWER REQUIREMENT
Power Input 9V -36V DC Power Input
Power Protection Automatics Recovery Short Circuit Protection
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery Internal Battery Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery
MECHANICAL & ENVIRONMENTAL
Dimensions 250 x 150 x 55 mm
Weight 1780g (bare-bone)
Relative Humidity 10 ~ 95%
Operating Temp. -40 ~ 70°C (Default CPU 17Watt)
Storage Temp. -40 ~ 80°C
Certifications CE, FCC Class A, EMark Compliance
Patent No. (Taiwan) M447854, M448011
