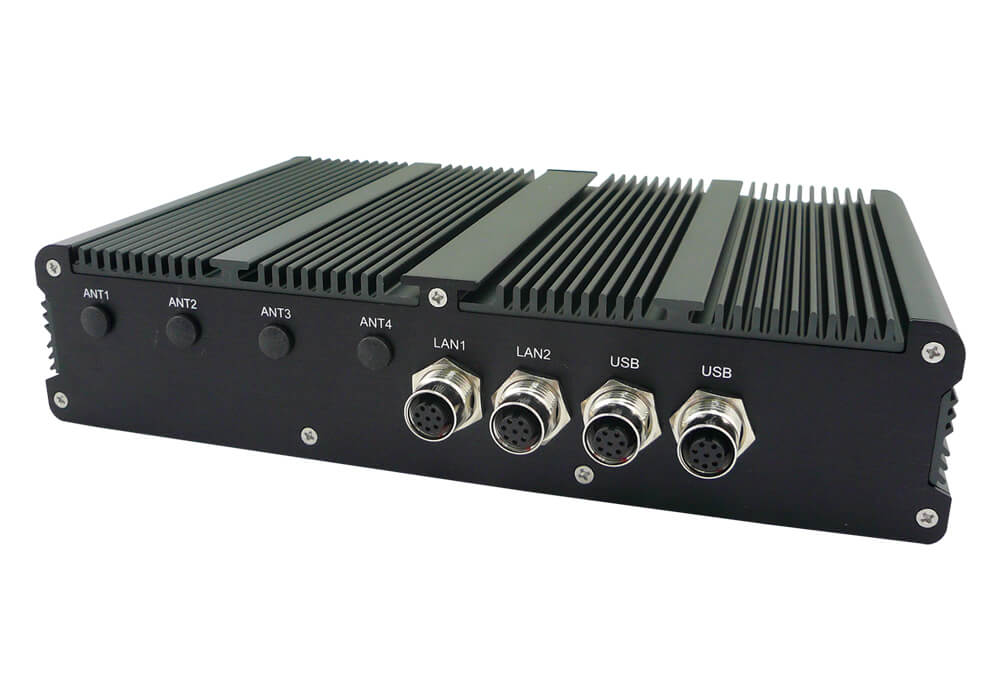

VBOX-3611-IP65
Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní infomace
Intel Gen6 Core i7-6600U CPU with HD 520 GPU IP65 In-Vehicle Computer
- Intel Core i7-6600U
- Wireless Support LTE, WLAN, GPS, Bluetooth
- 9V - 48V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- 4 x DI / 4 x DO with Relay 5V / 100mA
- IP65 Level for Water and Dust Proof
Specifikace
| CPU | Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz |
| Memory | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| Graphics | Intel HD Graphics 520 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0 Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz Max Resolution (DP) : 4096 x 2304@60Hz |
| TPM | 2.0 |
| I/O | 2 x RS-232/422/485 (optional max. 4 x RS-232/422/485) 4 x USB 2.0 Ports on Front I/O 2 x M12 A-Code for GbE 1 x DVI-I DIO Port 4 in and 4 out with Relay 5V / 100mA AIO Port 2 x Analog Input (0-48V) 1 x Line-out, 1 x Mic-in and 1 x Line-in (optional - 1 x Line-out additional) 2 x SIM Card Sockets Supported Onboard |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| Dimension (LxWxH) | 250 x 150 x 55 mm |
| Weight | 1980g (Barebone) |
| Relative Humidity | 0% RH – 95% RH |
| Operating Temp. | -40 ~ 70°C |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, E-13 |
| IP Rating | IP65 |
