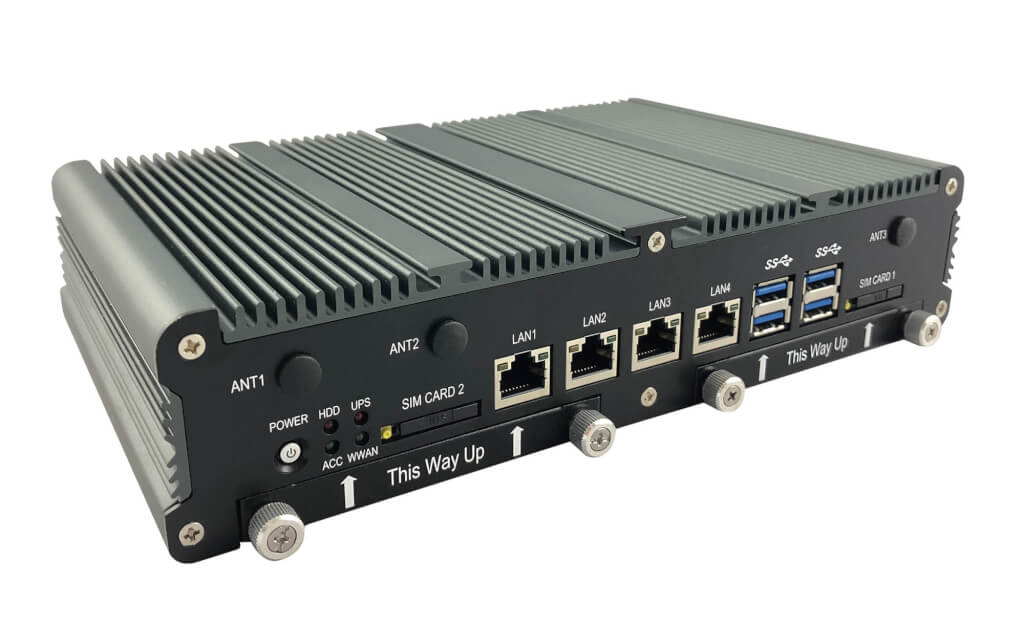

VBOX-3611-4L
Intel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel Core i7-6600U
- Wireless support LTE w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT(Optional)
- 9V~48V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- Dual Hot Swappable SATA Storage, RAID 0, 1, 5
- 1 x CAN Bus 2.0B (Optional)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz |
| Memory | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| Chipset | Intel 6th Generation Core SoC Processor |
| LAN Chipset | Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | Watchdog Timer Support, Offer 1 – 255 Step |
| TPM | 2.0 |
| POWER REQUIREMENT | |
| Power Input | 9V -48V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software and BIOS |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| GRAPHICS | |
| Graphics | Intel HD Graphics 520 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0 |
| Resolution | Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz Max Resolution (DP) : 4096 x 2304@60Hz |
| STORAGE | |
| Type | 2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 1 x SATA DOM |
| I/O | |
| Serial Port | 4 x RS-232 (2 with RS-422/485 (Auto Direction Control)) |
| USB Port | 2 x USB 3.0 Ports, 2 x USB 2.0 Ports |
| LAN | 4 x RJ45 Ports for GbE (1 port with iAMT) |
| Video Port | 1 x DVI-I*, 1 x VGA, 1 x DP (Support Triple Independent Display) * Use only with Single Link DVI Cables. |
| DIO Port | 4 In and 4 Out |
| Audio | 1 x Line-out and 1 x Mic-in (Line-in optional) |
| SIM Card Socket | 2 x SIM Card sockets supported onboard with eject |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions | 250 x 150 x 55 mm |
| Weight | 1980g (bare-bone) |
| Relative Humidity | 0 ~ 95% |
| Operating Temp. | -40 ~ 70°C |
| Storage Temp. | -40 ~ 85°C |
| Certifications | CE, FCC Class A, E-13 |
| Patent No. (Taiwan) | M447854, M448011 |
