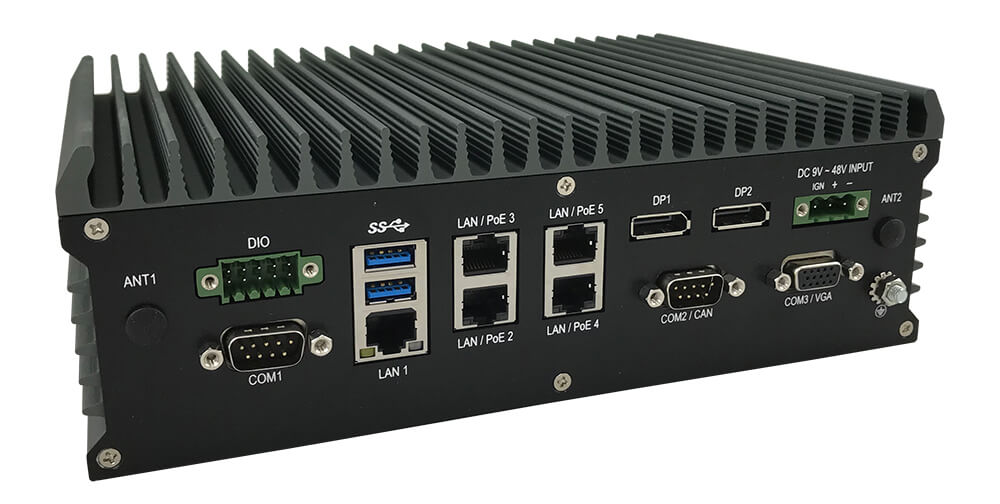

VBOX-3210

AMD Merlin Falcon Enbedded Platform RX-421BD/RX-216GD APU with 2xDP / 2xCOM / 5xGbE / 4xPOE / 2xUSB3.0 / DC Input 9~48V In-Vehicle Computer

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • AMD Merlin Falcon RX-421BD/RX-216GD
  • Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
  • 5 x GbE w/optional 4 x POE 802.3at
  • Input 9-48V with lgnition for Variety Vehicle
  • 3 x Mini PCIe card & 1 x M.2 for extension
  • 2 x DP, 1 x VGA

Specifikace

SYSTEM
CPU AMD RX-421BD Quad Core 2.1GHz up to 3.4 GHz*
AMD RX-216GD Dual Core 1.6GHz up to 3.0 GHz (Optional GX-224IJ, GX-215JJ)
*Config to 15W
Memory 2 x SO-DIMM DDR4 up to 32GB (only 1 slot for GX series)
Graphics AMD Radeon™ graphics
ATA 2 x Serial ATA GEN 3.0
LAN Chipset 2 x Intel i210-AT; Ethernet Swtich: 1 x Marvell 88E6176
Watchdog 1 – 255 Level Reset
POWER REQUIREMENT
Power Input 9V -48V DC Power Input
Power Management Vehicle Power Ignition for Variety Vehicle
Power Off Control Power on/off Delay Time Setting by Software
Battery (UPS) Internal Battery Backup Kit for 10 Mins Operating (Optional)
Patent No. : M447854 - Build-in Battery
I/O
Serial Port 2 x RS232/422/485 (option additional 2 x RS232)
USB Port 2 x USB 3.0 Ports, 2 x USB 2.0 Ports
LAN 5 x RJ45 Ports GbE (Optinal for 4 x POE 802.3at/af*)
* When Power Input >= 24V, total PoE outputs is 100W max.
* When Power Input < 24V, total PoE output is 60W max.
Video Port 2 x DP, 1 x VGA (only for RX series)
GPIO Port 4 in and 4 out
Audio Mic-in/Line-out/Line-in
Expansion Bus 3 x Mini-card slots, 1 x M.2 A-E key 2230 (only for RX series)
Antenna 6 x SMA-type External Antenna Connectors
SIM Card Socket 2 x SIM Card sockets Supported Onboard with eject
STORAGE
Type 1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD
1 x Cfast slot
MECHANICAL & ENVIRONMENTAL
Dimensions 240 x 161 x 85 mm
Weight 1405g (bare-bone)
Relative Humidity 5 ~ 95% (non-condensing)
Operating Temp. -40 ~ 70°C (w/SSD)
Storage Temp. -40 ~ 85°C
Certifications CE, FCC Class A, E13
Patent No. (Taiwan) M447854
