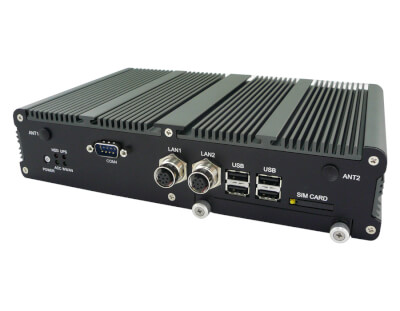

VBOX-3200-M12
Box PC s procesorem AMD G-T56N, grafikou Radeon HD 6320, konektory M12 pro LAN a certifikací EN5015
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- AMD G-T56N Dual Core APU with Radeon HD 6320
- Wireless Support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 2 x M12 LAN Ports
- 9V - 32V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- 4 x DI / 2 x DO with Relay 12V / 80mA
- 1 x CAN Bus 2.0B (Optional)
- EN50155, EN50121-3-2 certified for temperature ranges up to Class TX
- EN61373 certified for shock and vibration resistanc
Specifikace
| SYSTEM | |
|---|---|
| CPU | AMD G-T56N Dual Core 1.65GHz AMD G-T40E Dual Core 1.0GHZ (Optional) |
| Memory | 2 x DDR3 1333MHz SO-DIMM up to 8GB |
| Chipset | AMD A50M Controller Hub |
| LAN Chipset | 2 x Realtek RTL8111E Gb/s Ethernet Onboard, Support PXE and Wake On Lan |
| Audio | Realtek ALC662 HD Codec Onboard |
| Watchdog | 1 ~ 255 Level Reset |
| POWER REUQIREMENT | |
| Power Input | 9V -32V DC Power Input |
| Power Protection | Automatics Recovery Short Circuit Protection |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| PPower Off Control | Power off Delay Time Setting by Software, Default is 5 Mins |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| GRAPHICS | |
| Graphics | AMD G-T56N Radeon HD 6320 UVD3 Hardware Video Decoder - MPEG2, MPEG4, H.264, VC-1, WMV |
| Resolution | Up to 2560 x 1600 @ 85Hz |
| I/O | |
| Serial Port | 3 x RS-232 (2 with RS-422/485 (Auto Direction Control)) |
| USB Port | 4 x USB 2.0 ports on Front I/O |
| LAN | 2 x M12 Pports for GbE |
| Video Port | 1 x DVI-I and 1 x VGA Output (Share with DVI-I) |
| DIO Port | 4 in and 2 out with Relay 12V / 80mA |
| Audio | 1 x Line-out (Mic-in or Line-in optional) |
| SIM Card Socket | 1 x SIM Card socket supported onboard with eject |
| MECHANICAL & ENVIRONMENTAL | |
| Dimension (LxWxH) | 250 x 150 x 55 mm |
| Weight | 1780g (bare-bone) |
| Relative Humidity | 10 ~ 95% (non-condensing) |
| Operating Temp. | -40 ~ 70°C(SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, EN50155, EN50121, eMark Compliance |
| Patent No. (Taiwan) | M447854, M448011 |
