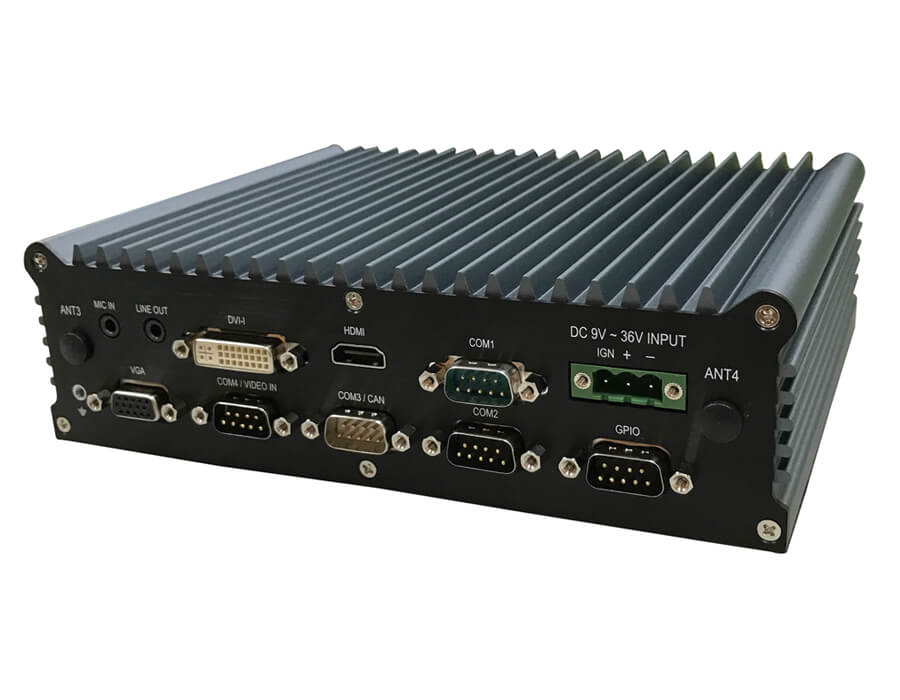

VBOX-3150
Intel Haswell Celeron 2980U/i3-4010U CPU with 2 x PoE/ 1 x GbE with vPro/ 4 x COM In-Vehicle Computer
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel Gen4 Celeron 2980U/i3-4010U
- Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 2 x PoE 802.3af & 1 x GbE with iAMT9.5
- Input 9-36V with Ignition for Variety Vehicle
- 4 x RS-232 (COM1 & COM2 with RS-232/422/485)
- 1 x DVI, 1 x HDMI, 1 x VGA
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel Gen4 Core i3-4010U 1.7GHz Intel Gen4 Dual Core 2980U 1.6 GHz (Optional i5, i7) |
| Memory | 1 x DDR3L-1600 SO-DIMM up to 8GB |
| Graphics | Intel HD Graphics |
| ATA | 2 x Serial ATA 2.0 Ports with 6Gb/s HDD Transfer Rate |
| LAN Chipset | 2 x Intel i210-AT Gigabit Ethernet with PoE 802.3af 1 x Intel i-218LM GbE support vPro (iAMT9.5 w/ i5, i7 only ) |
| Watchdog | 1 ~ 255 Level Reset |
| I/O | |
| Serial Port | 4 x RS-232 (2 with RS-232/422/485) |
| USB Port | 2 x USB 3.0 and 1 x USB 2.0 Ports |
| LAN | 3 x RJ45 Ports for GbE (2 x PoE 802.3at, 1 x support vPro) |
| Video Port | 1 x HDMI, 1 x DVI-I and 1 x VGA |
| GPIO Port | 4 In and 4 Out |
| Audio | Mic-in/Line-out (option 2 x Line--out) |
| Expansion Bus | 4 x Mini-card Slots |
| Antenna | 4 x SMA-type External Antenna Connectors for LTE / WLAN / UMTS / GSM / GPRS / GPS / Bluetooth |
| SIM Card Socket | 2 x SIM Card Sockets Supported Onboard with eject |
| POWER REQUIREMENT | |
| Power Input | 9V - 36V DC Power Input |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by BIOS and Software |
| Battery (UPS) | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| STORAGE | |
| Type | 1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM |
| SOFTWARE | |
| Operating system | Windows 7, WES 7, Windows 10, Linux |
| ENVIRONMENTAL | |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Relative Humidity | 10 ~ 90% (non-condensing) |
| Vibration (random) | 2.5g@5~500 Hz with SSD |
| Vibration Operating | MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle-Highway |
| Truck Storage | MIL-STD-810F, Method 514.5, Category 24, Integrity Test |
| Shock | Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD |
| Crash Hazard | MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=100g |
| Certifications | CE, FCC Class A, E-13 |
| MECHANICAL | |
| Construction | Aluminum Alloy |
| Mounting | Wall-mount, VESA-mount, Din Rail Mounting Kit |
| Weight | 1406 g |
| Dimensions | 229 x 161 x 65 mm |
