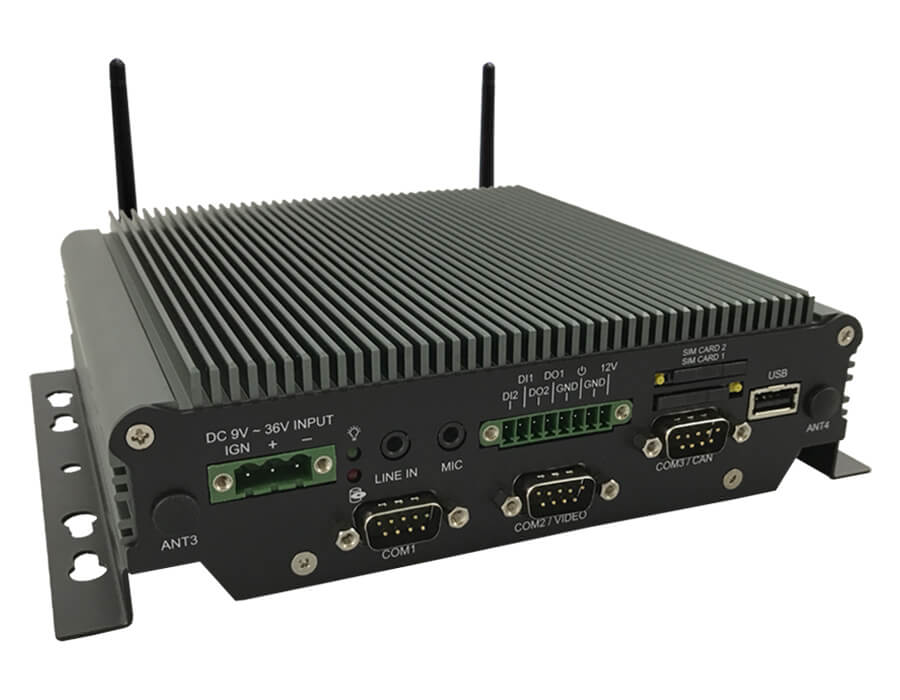

VBOX-3140
Intel Apollo Lake E3940 Atom CPU with 9~36V DC Input In-Vehicle Computer
Základní informace
- Intel E3940 Atom CPU up to 1.8GHz
- Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 9V - 36V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- 3 x RS-232 (COM1 & COM2 with RS232/422/485)
- 2 x DI / 2 x DO (12V / 100mA)
Specifikace
| SYSTEM | |
|---|---|
| CPU | Intel E3940 Quad Core Atom CPU up to 1.8GHz |
| Memory | 1 x DDR3L-1600MHz SO-DIMM up to 8GB |
| Graphics | Intel HD Graphics 500 |
| ATA | 2 x Serial ATA 2.0 ports with 6GB/s HDD Transfer Rate |
| LAN Chipset | 2 x Intel i210-AT Gigabit Ethernet |
| Watchdog | 1 ~ 255 Level Reset |
| Resolution | 3840 x 2160 @30Hz max. |
| POWER REQUIREMENT | |
| Power Input | 9V -36V DC Power Input |
| Power Management | Vehicle Power Ignition for Variety Vehicle |
| Power Off Control | Power off Delay Time Setting by Software, Default is 5 Mins |
| Backup Battery | Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery |
| I/O | |
| Serial Port | 3 x RS-232 (COM1 & COM2 with RS-232/422/485) |
| USB Port | 2 x USB 3.0 and 1 x USB 2.0 |
| LAN | 2 x RJ45 Ports for 10/100/1000 Mbps LAN |
| Video Port | 1 x HDMI and 1 x DVI-I* * Use only with Single Link DVI Cables. |
| GPIO Port | 2 In and 2 Out (12V / 100mA) |
| Audio | Mic-in / Line-out |
| Expansion Bus | 3 x Mini-Card Slots |
| Antenna | 4 x SMA-type External Antenna Connectors for WLAN/ UMTS/ GSM/ GPRS/ GPS/ Bluetooth |
| SIM Card Socket | 2 x SIM Card sockets supported onboard with eject |
| MECHANICAL & ENVIRONMENTAL | |
| Dimensions (LxWxH) | 182 x 167.6 x 54 mm |
| Mounting | Wall-mount, VESA-mount, Din Rail Mounting Kit |
| Weight | 1406g |
| Relative Humidity | 10 ~ 90% (non-condensing) |
| Operating Temp. | -40 ~ 70°C (SSD), ambient w/ air |
| Storage Temp. | -40 ~ 80°C |
| Certifications | CE, FCC Class A, EMark Compliance |
| Patent No. (Taiwan) | M447854 |
| ORDERING INFORMATION | |
| Part Number | VBOX-3140-000 |
| Description | Intel Apollo Lake E3940 Atom CPU with 9~36V DC Input In-Vehicle Computer |
