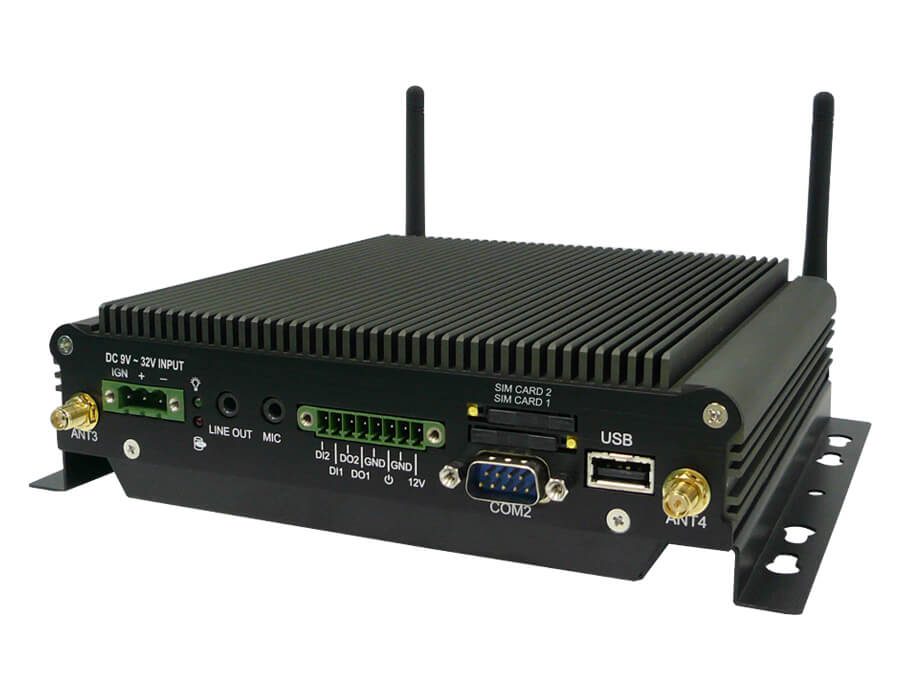

VBOX-3110

Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with 9~32V DC Input In-Vehicle Computer

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073 pchalupa@nowatron.cz

PRODUKT JIŽ NENÍ URČEN K PRODEJI

SYSTEM
CPU	Intel Cedarview Atom D2550 Dual Core 1.86GHz
Memory	2 x DDR3 11066MHz SO-DIMM up to 4GB
Chipset	Intel NM10
Graphics	Intel GMA3650
ATA	2 x Serial ATA 2.0 Ports
LAN Chipset	2 x Realtek 8111E Gigabit Ethernet
Watchdog	1 ~ 255 Level Reset
POWER REQUIREMENT
Power Input	9V -32V DC Power Input
Power Management	Vehicle Power Ignition for Variety Vehicle
Power Off Control	Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery	Internal Battery Kit for 10 Mins Operating (Optional) Patent No. : M447854 - Build-in Battery
I/O
Serial Port	2 x RS-232 (COM1 with RS-232/422/485)
USB Port	3 x USB 2.0 ports
LAN	2 x RJ45 Ports for GbE
Video Port	1 x DVI-I Female Connector for DVI-D and VGA Output
GPIO Port	2 in and 2 out with Relay 12V / 100mA
Audio	Mic-in / Line-out
Expansion Bus	3 x Mini-Card Slots
Antenna	4 x SMA-type External Antenna Connectors for WLAN/ UMTS/ GSM/ GPRS/ GPS/ Bluetooth
SIM Card Socket	2 x SIM Card sockets supported onboard with eject
MECHANICAL & ENVIRONMENTAL
Dimensions (LxWxH)	182 x 167.6 x 54 mm
DMounting Method	Wall-mount, VESA-mount, Din Rail Mounting Kit
Weight	1406g
Relative Humidity	10 ~ 90% (non-condensing)
Operating Temp.	-40 ~ 70°C (SSD), ambient w/ air
Storage Temp.	-40 ~ 80°C
Certifications	CE, FCC Class A, EMark Compliance
Patent No. (Taiwan)	M447854
