VA0.9

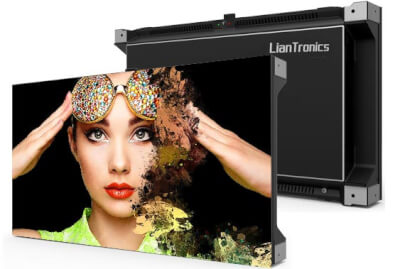

Menší LED panel s roztečí 0,9 mm.
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
Rozteč bodů: 0,9 mm
Rozměry panelu: 600 × 337,5 mm
Svítivost (nits): 600 - 800
Hmotnost: 8 kg
Specifikace
| Item | Value |
|---|---|
| Pixel configuration | SMD LED |
| Pixel pitch | 0.031 |
| Pixel Pitch(mm) | 0.8 |
| Pixel density(pixels/㎡) | 1229083 |
| Panel size(inch) | 12.8(W)×14.4(H)×3.5(D) |
| Panel Size (mm) | 325(W)×365 (H)×88(D) |
| Panel Resolution（W×H） | 360×405 |
| Panel Material | Die - casting aluminum |
| Weight（kg/pcs） | 4.5 |
| White balance brightness(nits) | 600 |
| *Max. Power Consumption（W/㎡） | 790 |
| *Avg. Power Consumption（W/㎡） | 263 |
| Serviceability | Front/Rear |
| Viewing Angle（deg.） | 160(H)/160(V) |
| Refresh Rate（Hz） | 1920/2880/3840 |
| Gray Level（Bit） | 12/14/16 |
| Contrast Ratio | 8000:1 |
| Color Temperature（K） | 2000≤ TC≤ 10000 adjustable |
| Brightness Adjustment | Programmable/auto/manual |
| Color Calibration | Brightness and chroma calibration |
| Others | Communication - level power supply, hot double backup, temperature and humidity test, multi - signal input support, etc. |
