USB EDC Vertical 3SE

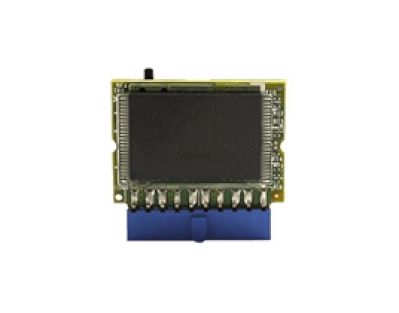

The Innodisk USB EDC Vertical product
Základní informace
- High performance with USB 3.0 interface
- Low power consumption
- Wear-Leveling supported
- ECC engine with correction capability up to 60-bit/1024 Bytes
- Provide ST and WT solutions
- Pin-Paitch 2.00mm
The Innodisk USB EDC Vertical products provide high capacity USB flash memory storage that electrically complies with High-speed USB 3.0 interface.The device features attractive small form factor and the connectivity over USB 3.0 and the NAND flash architecture provide a faster data transmission.
Specifikace
| Model Name | USB EDC Vertical 3SE |
| Interface | USB 3.0 |
| Flash Type | SLC |
| Type | Vertical |
| Capacity | 4GB~32GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 100/85 |
| Max. Power Consumption | 0.79 W (5V x 158 mA ) |
| H/W Write Protect | Y |
| S.M.A.R.T. | N |
| Dimension (WxLxH/mm) | 24.0 x 22.0 x 5.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
