USB EDC Vertical 3ME

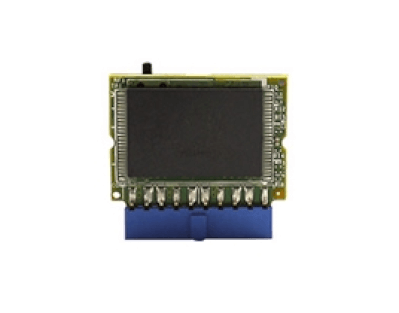

The Innodisk USB EDC Vertical product

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • High performance with USB 3.0 interface
  • Low power consumption
  • Wear-Leveling supported
  • ECC engine with correction capability up to 60-bit/1024 Bytes
  • Provide ST and WT solutions
  • Pin-Paitch 2.00mm

The Innodisk USB EDC Vertical products provide high capacity USB flash memory storage that electrically complies with High-speed USB 3.0 interface.The device features attractive small form factor and the connectivity over USB 3.0 and the NAND flash architecture provide a faster data transmission.


Model Name USB EDC Vertical 3ME
Interface USB 3.0
Flash Type MLC
Type Vertical
Capacity 8GB~64GB
Max. Channels 1
Sequential R/W (MB/sec, max.) 100/45
Max. Power Consumption 0.71 W (5V x 141 mA )
H/W Write Protect Y
S.M.A.R.T. N
Dimension (WxLxH/mm) 24.0 x 22.0 x 5.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -55°C ~ +95°C
Operation Temperature Standard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C
