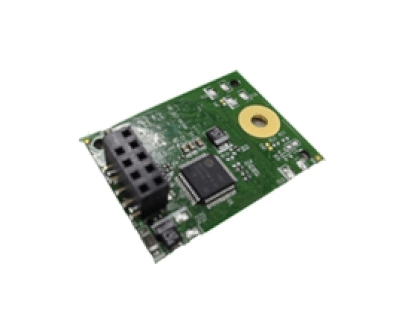

USB EDC Horizontal 2SE
The Innodisk USB EDC (Embedded Disk Card) product
Základní informace
- Excelent data transfer speed
- Wear-leveling supported
- Low power consumption
- Pin pitch 2.54mm/2.00mm
- Mounting hole supported
The Innodisk USB EDC (Embedded Disk Card) products provide high capacity USB flash memory storage that electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB 2.0 and the NAND flash architecture provide a faster data transmission.
Specifikace
| Model Name | USB EDC Horizontal 2SE |
| Interface | USB 2.0 |
| Flash Type | SLC |
| Type | Horizontal |
| Capacity | 512MB~32GB |
| Max. Channels | 1 |
| Sequential R/W (MB/sec, max.) | 28/24 |
| Max. Power Consumption | 0.85 W (5V x 170mA) |
| H/W Write Protect | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 26.6 x 36.9 x 9.6mm (Pin Pitch2.54) 26.6 x 36.9 x 6.6mm (Pin Pitch2.00) |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature | Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
