UHD Industrial 4K family
Available in 27”, 32”, and 43”, the UHD Industrial 4K family preserve the ScioTeq pedigree of unmatched quality, reliability, performance, and flexibility.
Základní informace
For lighter duty applications where quality and performance are key at a lower cost, the UHD Industrial 4K family meets the challenge. Available in UltraHD 3860x2160 resolutions, the UHD combines ScioTeq’s renowned optical quality and durability on a rugged industrial platform.
As application and sensor data increases in complexity, greater pixel density is required to fully visualize the expanded content. The UHD Industrial 4K displays deliver over 8 million pixels and 1.07 billion colors for brilliant image clarity. Featuring ScioTeq’s exclusive optical stack technology, the UHD-800’s IPS LCD is bonded with anti-glare and anti-reflective coatings provides superior undistorted images from ultra-wide viewing angles in any lighting conditions.
Brilliant Clarity
- IPS Panel with UHD 3840 x 2160 @ 60Hz native resolution providing over 8 million pixels for the ultimate picture clarity
- Color Accuracy – 1.07 billion colors for perfect image consistency
Exceptional Performance
- Excellent viewing angle (up to 178º x 178º); enables users to see undistorted images from any angle
- Exclusive optically bonded LCD glass with anti-glare and anti-reflective coating for superior viewing in any light conditions
- Custom LED Backlight with outstanding dimming and contrast control
Out of the Box Compatibility

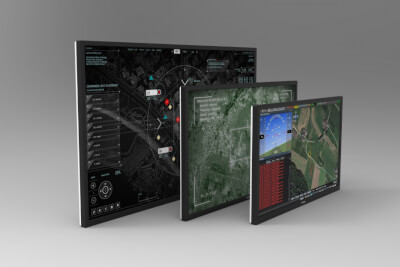

- Three screen size options; 27”, 32”, or 43”
- Full connectivity – 2 x DP 1.2, 1 x HDMI, 1 x DVI-D, and Ethernet for management and control
- AC power
- Standard off the shelf commercial connectors
Industrial Packaging
- Sheet metal backing and bezel
- Environmental specifications to MIL-STD 810G
- IPx4 front panel, real and side drip proof
- Reliability – 24/7 operation
Specifikace
| GENERAL SPECIFICATIONS | |||
|---|---|---|---|
| UHD-827 | UHD-832 | UHD-843 | |
| Size | 27" | 32" | 43" |
| Native resolution | 3840 x 2160 (UHD 4K) | 3840 x 2160 (UHD 4K) | 3840 x 2160 (UHD 4K) |
| Active display Area | 596.7 x 335.66 mm (23.49" x 13.21") |
697.31 x 392.23 mm (27.45" x 15.44") |
941.18 x 529.49 mm (37.05" x 20.84") |
| Pixel pitch | 0.1554 x 0.1554 mm | 0.182 x 0.182 mm | .2541 x 0.2541 mm |
| Contrast ratio (typical) | 1300:1 | 1300:1 | 1000:1 |
| Dimensions (W x H x D) | 630 x 375 x 60.5 mm (24.8" x 14.76" x 2.38") |
732 x 432 x 60.5 mm (28.8" x 17.0" x 2.38") |
TBD |
| Net weight (kg) | 8.5 kg (19.1 Lbs) | TBD | TBD |
| Power consumption (typical) | 47 W | 50 W | 75 W |
| DISPLAY | |
|---|---|
| Panel type | TFT active-matrix, IPS, LED backlight |
| Aspect ratio | 16:9 |
| Pixel arrangement | RGB vertical stripes |
| Color depth | 1.07 Billion colors (10-bit) |
| Dimming ratio (typical) | 200:1 min. |
| Brightness (typical) | 300 cd/m² (87,5 fL) |
| Viewing angle (H/V, typical) | 178°/178° (CR ≥ 10) |
| Response time (typical) | 14ms (gray to gray, 25°C) |
| Protective front glass | Chemically strengthened anti-glare and anti-reflective coating, no ITO coating, front glass bonded to LCD panel |
| VIDEO INPUTS | |
|---|---|
| Video interface connections | 2x Display Port (DP 1.2a standard) 1x DVI-D (DVI 1.0 standard) |
| Supported input timings | max. 3840 x 2160 @60 Hz (DP) max. 3840 x 2160 @30 Hz (DVI) |
| Video composition | Multi Window mode allows for up to 12 user defineable layouts Each layout can display up to 2 video inputs simultaneously in a user defined composition |
| Remote control | TBD |
| POWER | |
|---|---|
| Power connection | IEC plug type C6 |
| Power input | 110 Vac and 230 Vac nominal voltage |
| Voltage range | 90 Vac - 264 Vac |
| Frequency range | 50 - 60 Hz |
| Grounding | Electrical ground is connected to the chassis ground |
| MECHANICAL | |
|---|---|

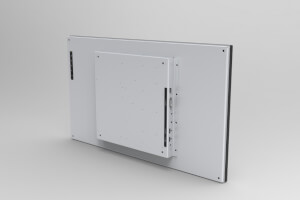

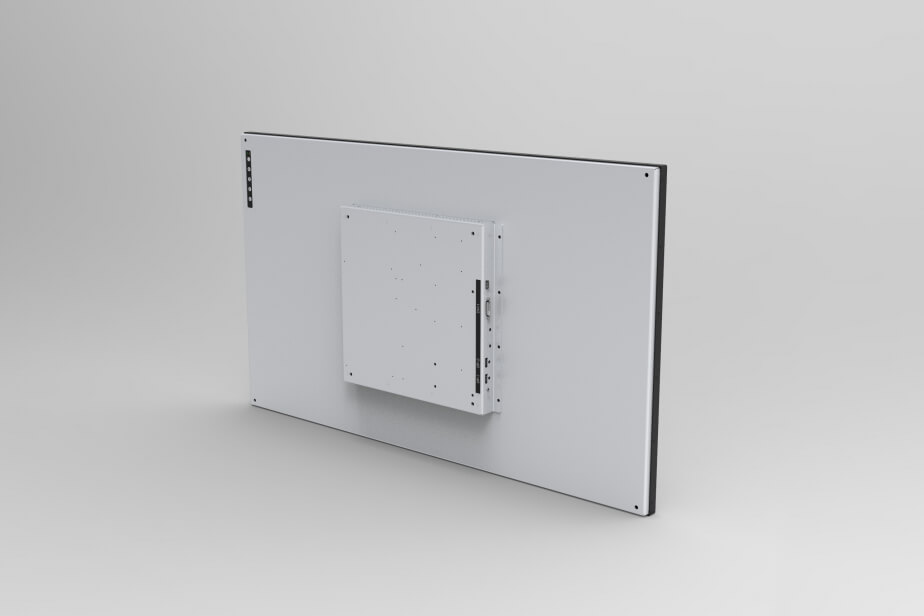

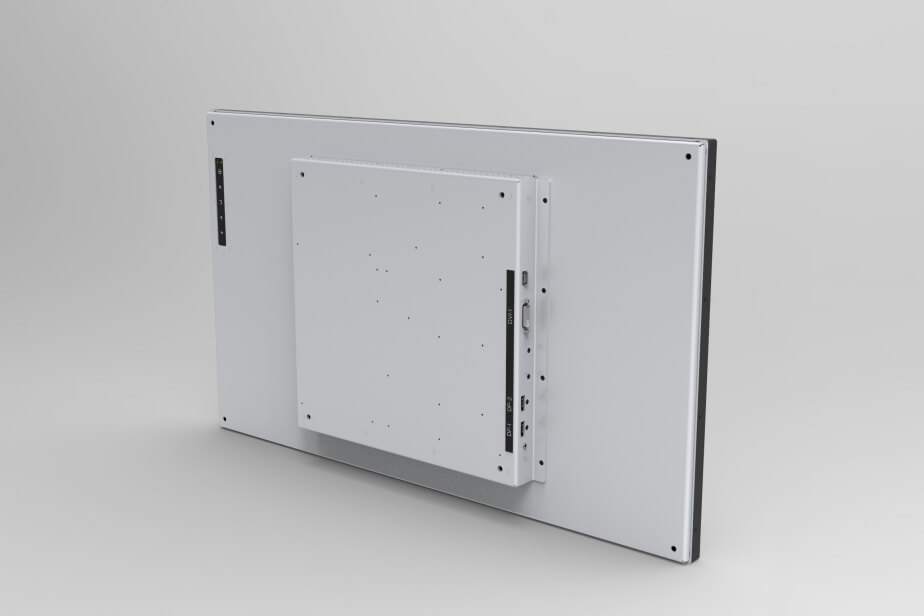

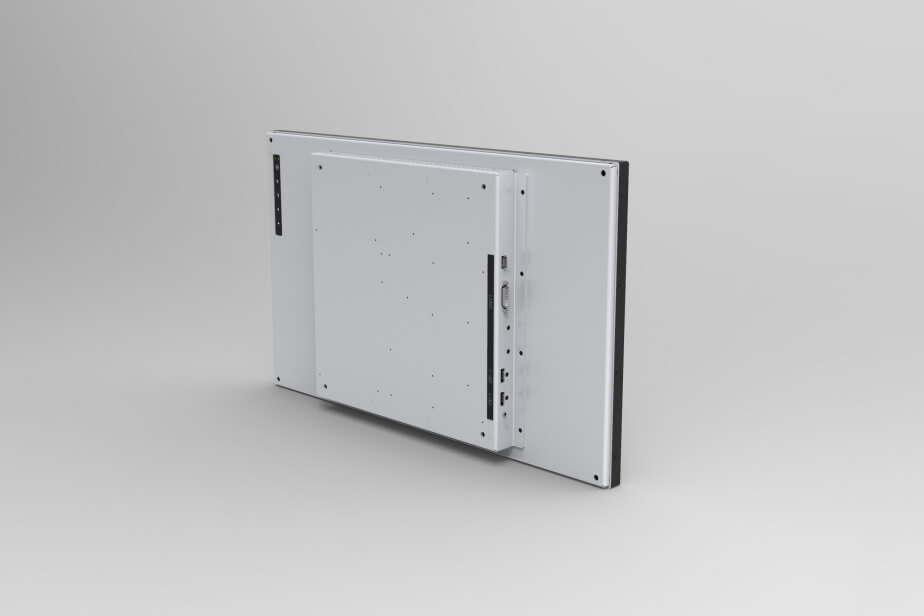

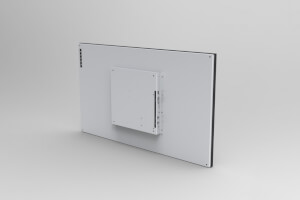

| Mounting | Rear mount, no handles, no captive screws VESA mounting 300 x 300 mm (4x M6 screws) |
| Finish | Front bezel painted black or black anodized Rear cover chromated, not painted |
| EMI/EMC | |
|---|---|
| Radiated emissions magnetic field |
RE-101 (MIL-STD-461G Navy applications Fig. RE 101-2) |
| Radiated emissions electric field |
RE-102 (MIL-STD-461G Surface ship applications, below deck Fig. RE 102-1) |
| Radiated susceptibility magnetic field |
RS-101 (MIL-STD-461G Navy applications Fig. RS 101-1) |
| Radiated susceptibility electric field |
RS-103 (MIL-STD-461G Ship metallic, below decks Table XI - 10 V/m) |
| REGULATORY COMPLIANCE | |
|---|---|
| Regulatory compliance | FCC-A CE Directive EU RoHS Directive Safety standard EN62368 |
