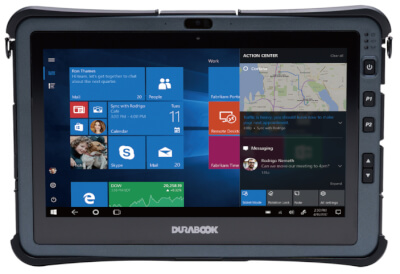

U11Ⅰ

Odolný tablet se 7. generací procesorů Intel Kaby Lake a obrazovkou o velikosti 11.6"

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

FULLY RUGGED FEATURES

  • MIL-STD 810G : IP65, 72 inch drop, Vibration.
  • MIL-STD 461G
  • C1D2
  • Operating temperature : -20°C to 60°C, storage : -40°C to 71°C.
  • Sunlight-readable display, optional digitizer with stylus.
  • Touch panel support finger/water, glove, and stylus modes.
  • Fanless design


BUILT-IN FUNCTIONS

  • Built-in MicroSD Card Reader
  • Built-in LAN port
  • Built-in Smart Card Reader (optional)
  • Built-in Fingerprint Scanner (optional)
  • Quick Release SSD
  • Stealth / Night Vision Mode
  • TPM 2.0


THIN, LIGHT AND DURABLE

  • Only 23.8 mm in height and 1.39 kg in weight.
  • Designed with aluminum-magnesium alloy chassis cover.
  • Main Battery provided up to 8hrs battery life.
  • Bridge Battery designed for main battery hot swap purpose.

Specifikace

Rugged features MIL-STD 810G / MIL-STD 461G / C1D2 / IP 65 / Fanless /
Operating Systém Windows® 10 Pro 64-bit
CPU Intel® 7th Generation Kaby Lake -Y series
Display 11.6"
Memory Onboard LPDDR3, 4GB / 8GB / 16GB
Storage Easy Removable M.2 SSD, 128GB / 256GB / 512GB / 1TB(optional)
Audio Intel® High Definition Audio / Two 1.5KHz / 70dB Speakers
Camera Front: Integrated 2MP Webcam / Rear: Integrated 8MP auto-focus with flash
Communication One Integrated Gigabit Ethernet with RJ45 / Intel® Dual Band Wireless AC9260 (WLAN 2x2 a/b/g/n/AC) / Bluetooth 5.0 / WWAN M2 module(optional) / Dedicate GPS module(optional)

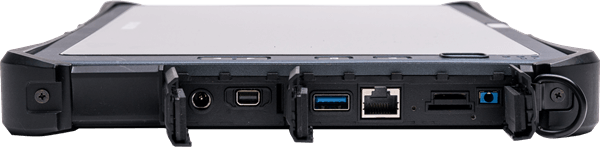

I/O Ports

One USB 3.0
One USB 2.0 or RS232 port or Barcode Scanner(optional)
One SD Card Reader (support mirco-SDXC)
One Combo jack for Headphone and Microphone
One RJ-45 jack
One MiniDP port (or One HDMI port)
One DC-in
One Docking connector
Three RF Pass-thru connectors for WWAN and WLAN and GPS(optional)

Expansion Slots One Smart Card Reader(optional)
One PCMCIA type II or Express Card 54 or RFID(optional)
Power 100V-240V, 50Hz-60Hz / 19V, 65W
Dimension 317 mm (L) x 215 mm (W) x 23.8 mm (H)
Weight 1.39 kg
Temperature Operating : - 20°C ~ 60°C (with wilde-temp.SSD / AC mode) Storage : - 40°C ~ 71°C
