TX-340

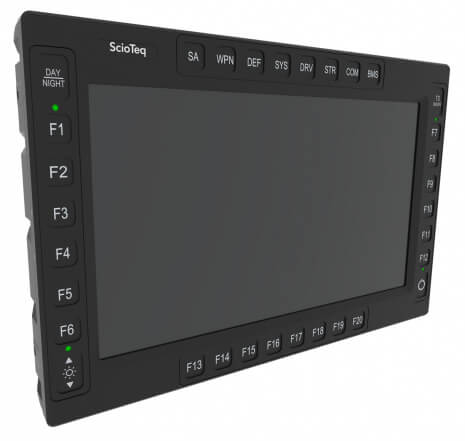

The TX-340 is a 15.6" FHD thin and lightweight extreme rugged display

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • Low weight yet extremely rugged design
  • Mission-critical operations for ground vehicle applications

When conditions become extreme, only extreme technologies can offer operators the reliability and survivability they need. For the demanding environments of the utility vehicle, helicopter, or armored vehicle, ScioTeq has completely renewed the ThinX series of extremely rugged displays. TX Generation 2 displays offer an ideal solution for driver’s vision enhancement, reconnaissance & local situational awareness
or for BMS and mission applications inside today’s vehicles and helicopters.

Being the successor of the TX-338 display, The TX-340 15.6" FHD display features the same functionalities and options as its predecessor: designed and qualified for harsh environments, a variety of HMI options like bezel buttons, touch screen, a variety of video I/O and video processing capabilities. The ThinX Gen2 displays accept multiple video inputs, offers multiple scaling modes and image representation options such as Picture-in-Picture, Picture-and-Picture, Quad-view, Image cropping.

The video rendering offers up to 4 sources displayed simultaneously. Compared to the previous generation, the Generation 2 also introduces a display remote control by a CAN 2.0B protocol. The ThinX Gen2 continues to propose a remote controlled capability by one of the remote control links (Ethernet, Serial, USB, or CAN).
Next to the excellent performance in terms of sunlight readability, image crispness, contrast, viewing angle and dimming capabilities, the
TX-340 display is addressing all SWaP-C aspects with an even more compact mechanical design, lower power consumption and lower cost.

Specifikace

Panel type Active Matrix LCD
Panel size 15.6", 16:9 Aspect ratio
Resolution 1920 x 1080 (FHD)
Backlight LED
Contrast ratio 700:1 in dark room typical
Dimming ratio 200:1 in day mode and 10:1 in night mode
Viewing angle ± 80° horizontal and vertical
Brightness Max > 686 cd/m² (200 fL) typical
Signal Inputs 1xDVI-D Single Link, 1x Analog RGB (3,4 or 5 wires) Max Resolution 1920 x 1200 (WUXGA) @ 60 Hz
3x Analog video (CVBS) inputs and 3x loop through outputs, MIL connector
1x CAN 2.0B (Accessible for project specific, please contact ScioTeq)
General Purposes Input Output (Accessible for project specific, please contact ScioTeq
Command and Control USB, RS232/422 for touch screen, function keys, and remote control
1x 10/100 Ethernet maintenance port for configuration management and remote control

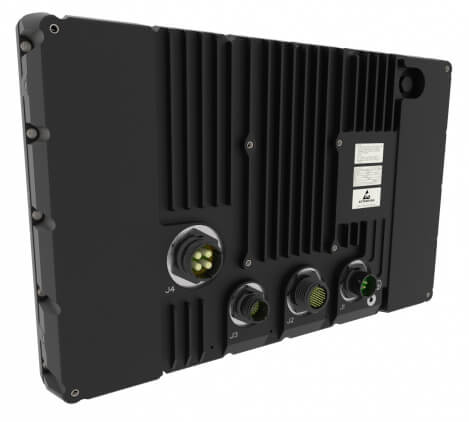

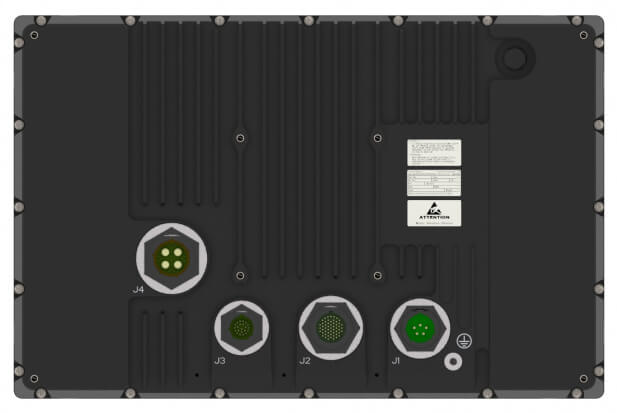

Connectors MIL-DTL-38999/3
Vibration Random vibration (wheeled vehicles) - MIL-STD-810G
Random vibration (heavy tracked vehicles) - AECTP400
Shock 40g 15/23ms SRS – MIL-STD-810G
Operational temperature From -46°C / -51°F to +63°C / +145°F - MIL-STD-810G
Storage temperature From -46°C / -51°F to +75°C / +167°F - MIL-STD-810G
Relative humidity 95% RH temperature cycle 30°C to 60°C / 86°F to 140°F - MIL-STD-810G
Drip proof MIL-STD-810F Meth 506.4 proc III
Altitude Operating & storage up to 40.000ft - MIL-STD-810G
EMI / EMC MIL-STD-461G - Ground Army
Enclosure EN60529 IPx5
Sand & dust, salt fog MIL-STD-810G - Compliant at unit level
Bezel controls Power/stand by, brightness mode day/night, brightness dimming
OSD On Screen Display & web interface
Power 28VDC MIL-STD-1275E
Power consumption 40W typical (140W with heater)
Cooling  Passive
Finishing Bezel color: Black RAL 9005
Surface treatment: ROHS compliant chromated Cr3 (MIL-DTL-5541 type II Class 3)
Option 1: HD-SDI video inputs and outputs 2 x Digital video (HD-SDI) inputs and
2x loop through outputs, max resolution 720p/1080i HD-SDI standard SMPTE 292M
Option 2: touch screen Base configuration: no touch screen
Single touch, Rugged Analog Resistive touch screen, USB or RS controlled
Option 3 or 4: function keys Base configuration: no function key

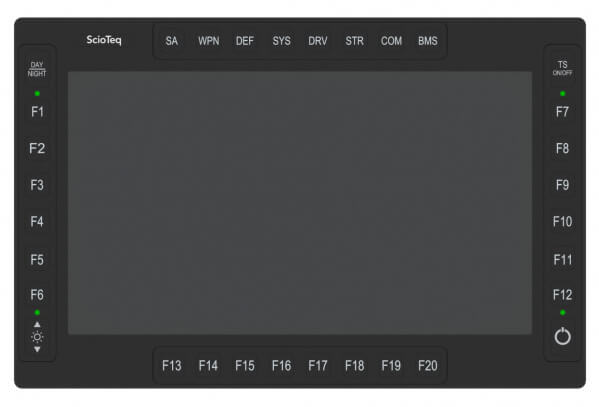

Up to 20 user defined function keys left, right and top, dimmable backlight.
Standard button layout or GVA Def Stan 23-09 compliant layout
