The TX-231 is a 12.1" WXGA thin and lightweight extreme display
- Low weight yet extremely rugged design
- Mission-critical operations for ground vehicle applications
When conditions become extreme, only extreme technologies can offer operators the reliability and survivability they need. For the demanding
environments of the utility vehicle, helicopter, or armored vehicle, ScioTeq has completely renewed the ThinX series of extremely rugged
displays. TX Generation 2 displays offer an ideal solution for driver’s vision enhancement, reconnaissance & local situational awareness or
for BMS and mission applications inside today’s vehicles and helicopters.
Being a 12 inch WXGA member of the family from 10 inch to 15 inch, the TX-231 display features the same or similar functionalities and options
as its predecessor: designed and qualified for harsh environments, a variety of HMI options like bezel buttons, touch screen, a variety of
video I/O and video processing capabilities.
The ThinX Gen2 displays accept multiple video inputs, offers multiple scaling modes and image representation options such as Picture-in- Picture, Picture-and-Picture, Quad-view, Image cropping. The video rendering offers up to 4 sources displayed simultaneously. Compared to the previous generation, the Generation 2 optionally introduces a display remote control by a CAN 2.0B protocol. The ThinX Gen2 continues to propose a remote controlled capability by one of the remote control links (Ethernet, Serial, USB, or CAN).
Next to the excellent performance in terms of sunlight readability, image crispness, contrast, viewing angle and dimming capabilities, the TX-231 display is addressing all SWaP-C aspects with an even more compact mechanical design, lower power consumption and lower cost.
|Panel type||Active Matrix LCD|
|Panel size||12.1", 16:10 Aspect ratio|
|Resolution||1280 x 800 (WXGA)|
|Contrast ratio||700:1 in dark room typical|
|Dimming ratio||200:1 in day mode and 10:1 in night mode|
|Viewing angle||± 80° horizontal and vertical|
|Brightness||Max > 686 cd/m² (200 fL) typical|

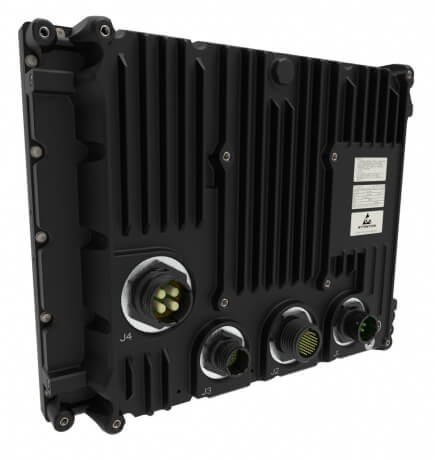

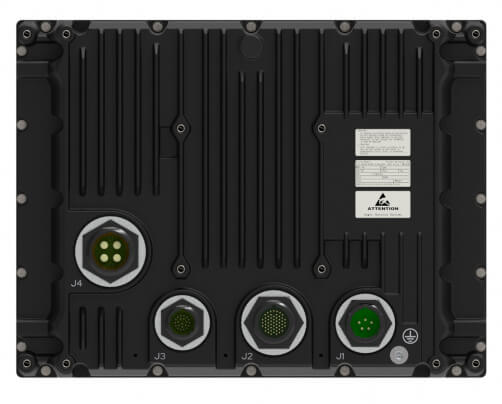

|Signal Inputs||1xDVI-D Single Link, 1x Analog RGB (3,4 or 5 wires) Max Resolution 1920 x 1200 (WUXGA) @ 60 Hz
3x Analog video (CVBS) inputs and 3x loop through outputs, MIL connector
1x CAN 2.0B (Accessible for project specific, please contact ScioTeq)
General Purposes Input Output
|Command and Control||USB, RS232/422 for touch screen, function keys, and remote control
1x 10/100 Ethernet maintenance port for configuration management and remote control
|Vibration||Random vibration (wheeled vehicles) - MIL-STD-810G
Random vibration (heavy tracked vehicles) - AECTP40
|Shock||40g 15/23ms SRS – MIL-STD-810G|
|Operational temperature||From -46°C / -51°F to +63°C / +145°F - MIL-STD-810G|
|Storage temperature||From -46°C / -51°F to +75°C / +167°F - MIL-STD-810G|
|Relative humidity||95% RH temperature cycle 30°C to 60°C / 86°F to 140°F - MIL-STD-810G|
|Drip proof||MIL-STD-810F Meth 506.4 proc III|
|Altitude||Operating & storage up to 40.000ft - MIL-STD-810G|
|EMI / EMC||MIL-STD-461G - Ground Army|
|Sand & dust, salt fog||MIL-STD-810G - Compliant at unit level|
|Bezel controls||Power/stand by, brightness mode day/night, brightness dimming|
|OSD||On Screen Display & web interface|
|Power consumption||35W typical (100W with heater)|
|Finishing||Bezel color: Black RAL 9005
Surface treatment: ROHS compliant chromated Cr3 (MIL-DTL-5541 type II Class 3)
|Option 1: HD-SDI video inputs and outputs||2 x Digital video (HD-SDI) inputs and
2x loop through outputs, max resolution 720p/1080i HD-SDI standard SMPTE 292M
|Option 2: touch screen||Base configuration: no touch screen
Single touch, Rugged Analog Resistive touch screen, USB or RS controlled

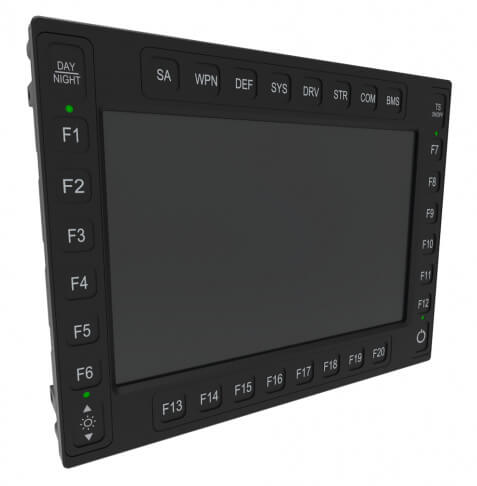

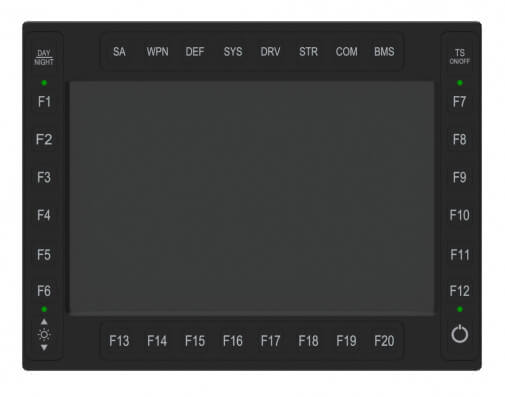

|Option 3 or 4: function keys||Base configuration: no function key
Up to 20 user defined function keys left, right and top, dimmable backlight.
Standard button layout or GVA Def Stan 23-09 compliant layout
