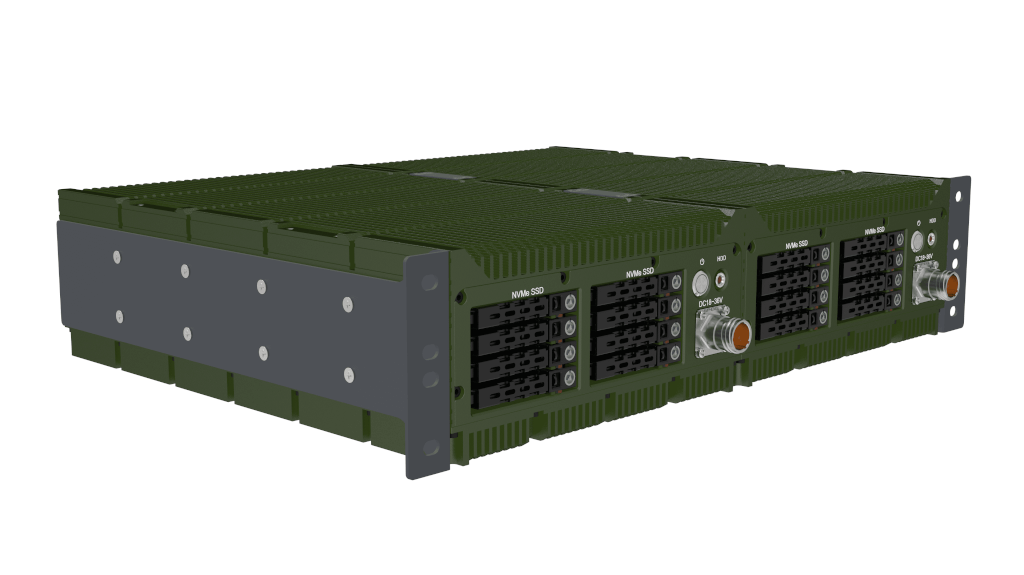

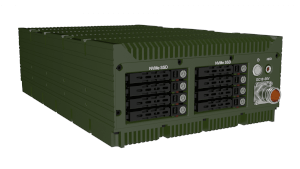

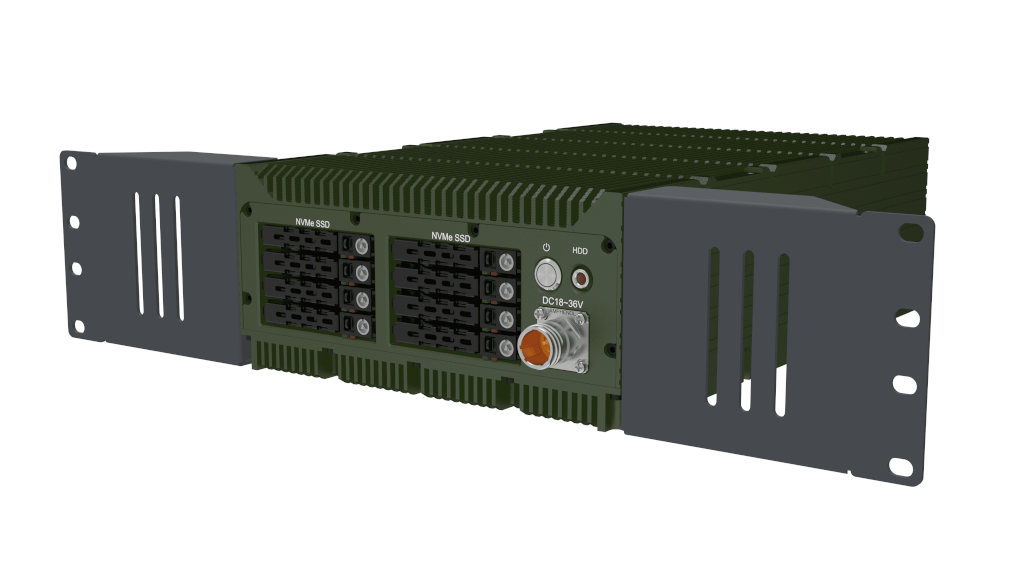

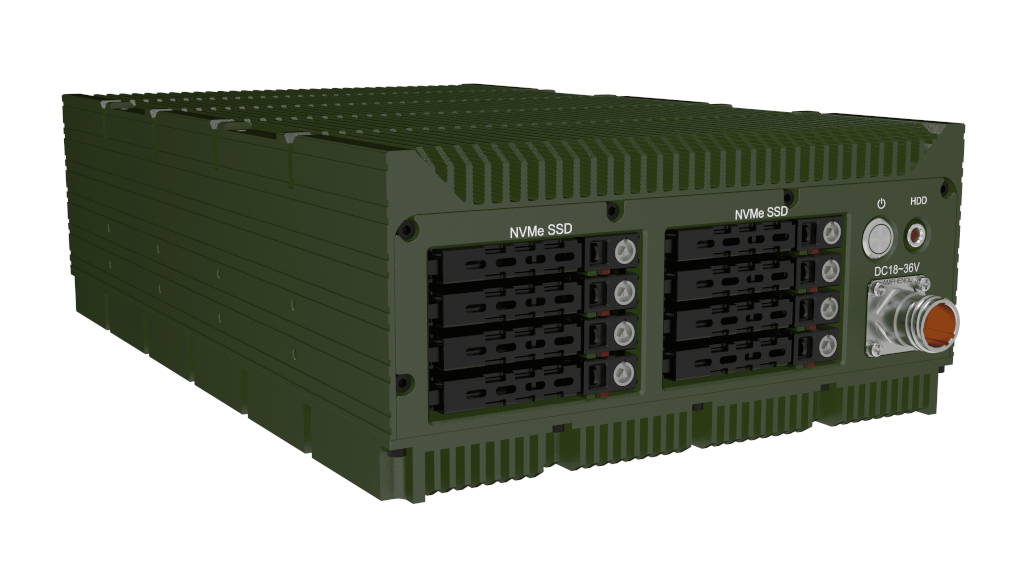

THOR200-U8-SP
2.5U 19"/2 64TB Xeon SP data recorder
Popis
- Intel® 4th Xeon SP Silver 4410T 10 Cores/20Threads 2.7GHz/4.0GHz
- NAS Total Capacity up to 64TB
- Storage: 8 x Swappable 2TB 2.5” SATA support RAID 0.1,5,10
- 2 x 10G, 2 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x IPMI, 1 x COM, 1 x VGA
- VMware 8..0 Support
- MIL-STD-810 Vibration Method 514.6: ◎Acceleration : 5.0 Grms
- MIL-STD-810 Vibration Method 514.6: ◎PSD : 0.01257 g2/Hz
- MIL-STD-810 Shock Method 516.6 : ◎Wave Form: Half Shine Wave
- MIL-STD-810 Shock Method 516.6 : ◎Acceleration: 20G
Specifikace
| Processor | Intel® 4th Xeon® SP Silver 4410T 2.7(4.0) GHz, 26.25MB, 150W, 10C/20T |
| Memory Type | 128GB RDIMM ECC DDR4-3200MHz |
| TPM | TPM 2.0 Header |
| BIOS | AMI UEFI BIOS |
| Display | 1 x VGA |
| USB | 2 x USB 3.2 Gen 1 2 x USB 2.0 |
| Ethernet | 2 x 10GbE, 1 x IPMI |
| Power Type | 18V~36V DC IN MIL-STD-461 EMI Filter |
| OS Storage | 2 x 1TB M.2 NVMe PCIe Gen 4 x 4 support RAID 1 |
| Data Storage | 8 x Swappable 2TB 2.5” SATAIII SSD support RAID 0,1,5,10 |
| RAID Card | M.2 NVMe Tri-Mode RAID Adapters |

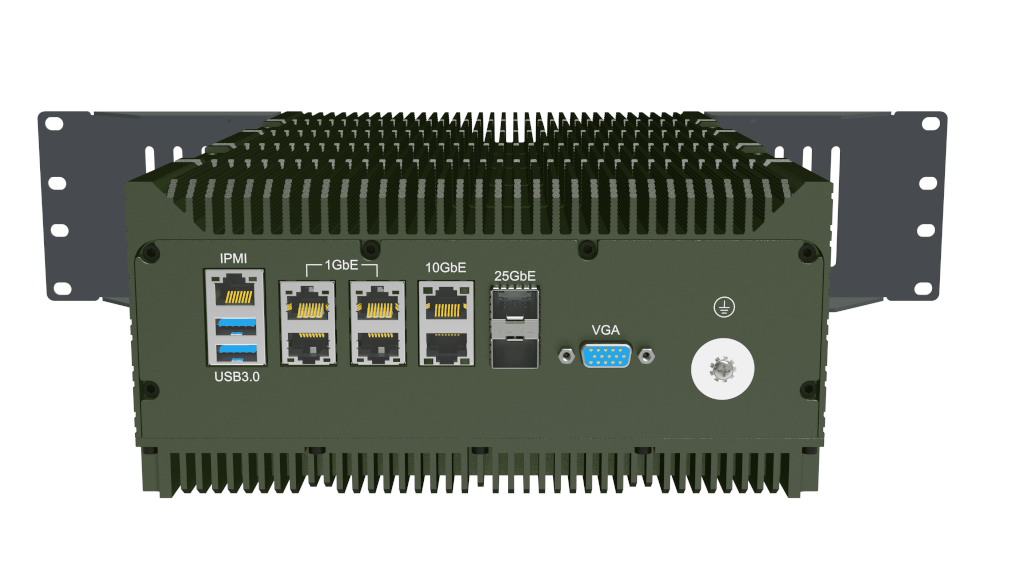

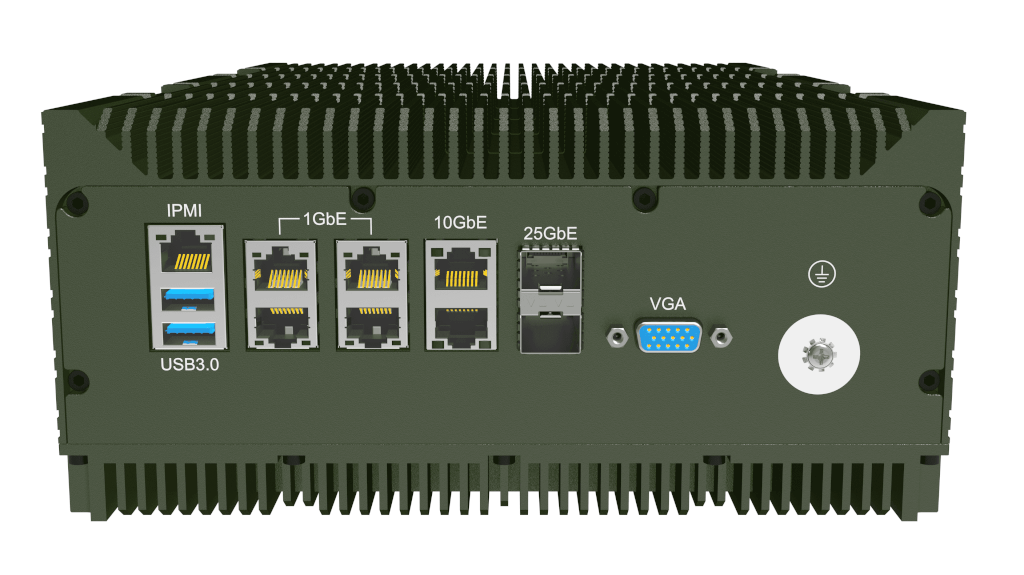

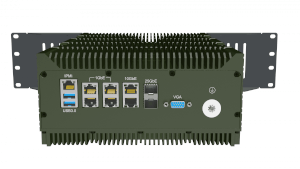

| Front I/O | 1 x VGA 2 x 10GbE RJ45 LAN 1 x COM 1 x IPMI 2 x USB3.2 Gen 1 2 x USB2.0 1 x GND |
| REAR I/O | 8 x Swappable Tray DC-IN 1 x D38999 connector |
| Swap Tray | 8 x Swappable Tray |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimension (WxLxH) | 220mm(W) x 400mm(L) x 110 mm(H) |
| Standard | MIL-STD-810G MIL-STD-461/ MIL-STD-1275 18V~36V DC Input |
