Intel® Broadwell Core™ i7-5650U NVIDIA GT730M GPU Amphenol Connectors, Dual LAN Ports 9V to 36V DC-in Operating Temp. -40 to 70°C MIL-STD IP65 Rugged System

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

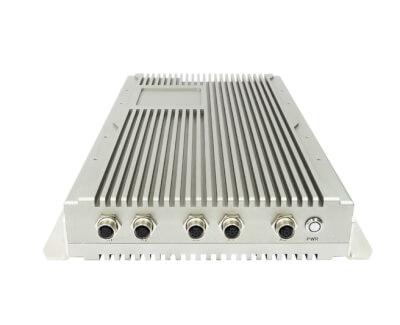

THOR200 is driven by Intel 5th generation Broadwell i7-5650U processor soldering onboard which is an extremely compact Core I-based fanless rugged system. Broadwell processor supports outstanding CPU and graphics performance, providing dual cores 3.2GHz clock speed while consuming low power consumption 9.5W. THOR200 highlight on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP65 protection allow system withstand in any kind of harsh environment. THOR200 supports extended temperature from -40 to 70°C and wide range 9V~36V DC input can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.

  • Intel® Broadwell BGA i7-5650U (2 cores x 2.2GHz, 15W)
  • 2 x DDR3L XR-DIMM up to 16GB memory
  • Onboard SATAIII NAND Drive up to 64GB
  • Amphenol M12 connector applied
  • IP65 classify
  • Wide range 9V to 36V DC-in
  • Extended operating temperature. -40 to 70°C


CPU Intel® Core™ Broadwell-U Processor
Intel® Core™ i5-5350U (2C x 1.8/2.9 GHz), 3M Cache (15W)
Intel® Core™ i7-5650U (4C x 2.2/3.1 GHz), 4M Cache (15W)
Memory Type 2 x XR-DIMM up to 16 GB
Expansion Slot 2 x mPCIe (1 with mSATA supported)
Storage Device Onboard uSSD SATAIII up to 64 GB
Ethernet Chipset 1 x Intel® I210-IT
1 x Intel® I218-LM
Power Button Water Resistive Power Button with LED Backlight
X1 (COM) 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001)
X2 (VGA) 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001)
X3 (LAN) 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001)
X4 (LAN) 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001)
X5 (USB 2.0 x2) 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001)
DC-in 4-Pin S-code Male M12 Connector (Amphenol M12S-04PMMS-SF8001)
Display Interface VGA: M12 connectors; resolution up to 3840 x 2160
Graphics Controller NVIDIA GT730M(embedded on PCIe/104 form factor)
Windows Windows 7 x32/x64, Windows 8 x32/x64, Windows 8.1 x32/x64, Windows 10 x32/x64
Linux Fedora 20, Ubuntu 13.04, Ubuntu 13.10, Ubuntu 14.04
Power Requirement 9V to 36V DC-in, AT/ATX mode
Dimension 220 x 380 x 56 mm
Ingress Protection IP65
Weight 7.5 kg
Operating Temp. -40 to 70°C (ambient with air flow)
Storage Temp. -40 to 85°C
Relative Humidity 5% to 95%, non-condensing
MIL-STD-810G Test Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)
EMC CE and FCC compliance
Green Product RoHS, WEEE compliance
