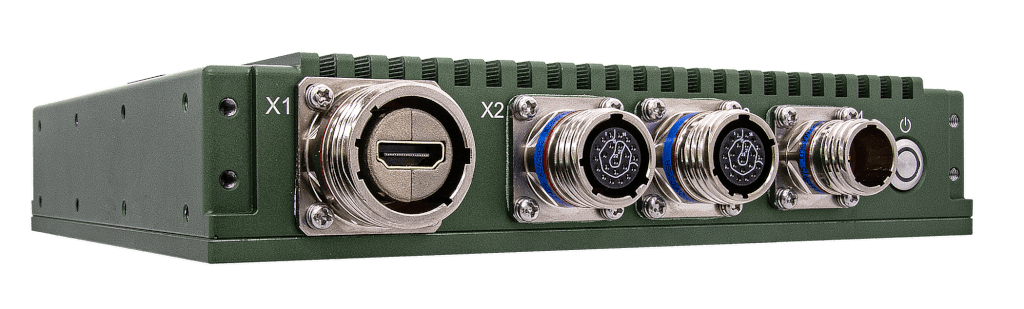

THOR100S-X13D
Box PC o velikosti 1U ½ s procesorem Intel® Core™ i7-1370PE
Popis
THOR100S-X13D je odolný počítač do racku 1U s hloubkou pouhých 200 mm, který je navržen tak, aby splňoval požadavky na nepřetržitý vysoký výkon v náročném a omezeném prostředí. S odolností proti vibracím až 10 Grms, odolností proti nárazům až 75G a rozšířeným provozním teplotním rozsahem od -40 °C do +60 °C je THOR100S-X13D navržen s ohledem na odolnost, aby nabídl vysokou výdrž a spolehlivý výkon. THOR100S-X13D je určen pro vojenské aplikace, kde je prostředí nasazení nejnáročnější a nejnáročnější, má klasifikaci IP65 a je vybaven konektory D38999 pro rozšíření I/O (1 HDMI, 2 LAN, 2 USB 2.0 a 1 RS232/422/485). Odolnost vůči elektromagnetickému rušení (EMI), zaručuje filtr EMI MIL-STD-461.
1U Half Rack Military Computer
- Ultra Short Depth 200mm 1U Half Rugged Computer
- Intel® 13th Rpator Lake-P i7-1370PE Processor
- DDR5 up to 32GB
- Anti-Vibration up to 10 Grms, Shock 75G
- IP65 classified
- Support SATAIII RAID 0/1
- MIL-STD-461 EMI Filter DC 9V~36V
- Extended Temperature: -40°C ~+60°C
- Size : 220x200x44 mm (W)x(D)x(H)
Special Request :
- Optional IP66
Specifikace
|
High performance Processor |
Intel® Core™ i7-1370PE Processor |
|
|
Memory type |
Memory Type DDR5 5200MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) |
|
| Expansion Slot |
1 x M.2 2280 M-Key (PCIe 4.0 x 4) |
|
| Chipset | Intel® Iris Xe Graphics | |
| HDMI | HDMI 1.4 x 1, 3840 x 2160 @30Hz | |
| SSD | SATAIII SSD– up to 2TB Capacity support RAID 0/1 | |
| Chipset | Intel® I219 Giga LAN + I226 2.5 Giga LAN | |

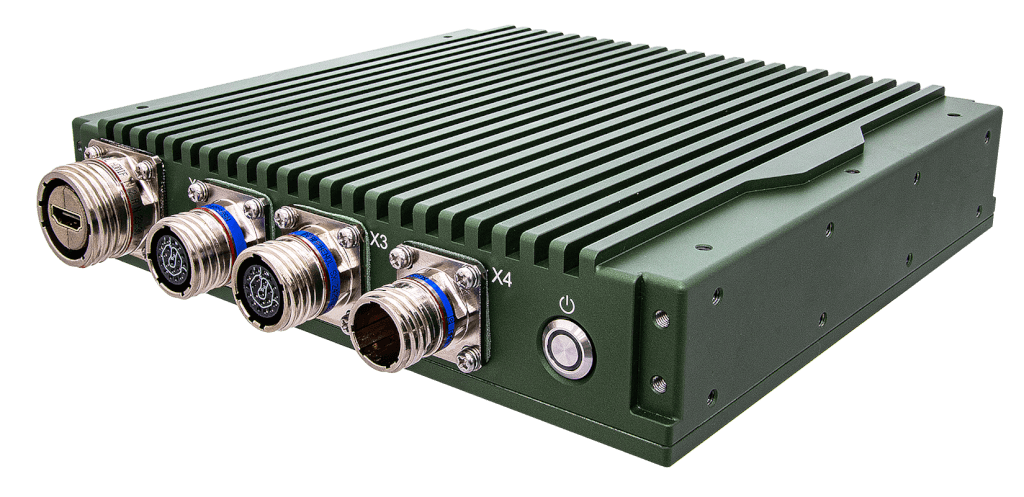

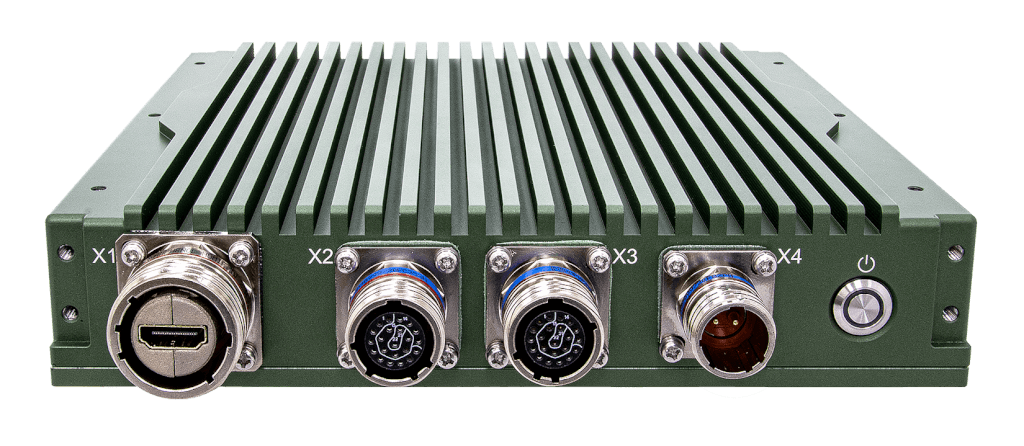

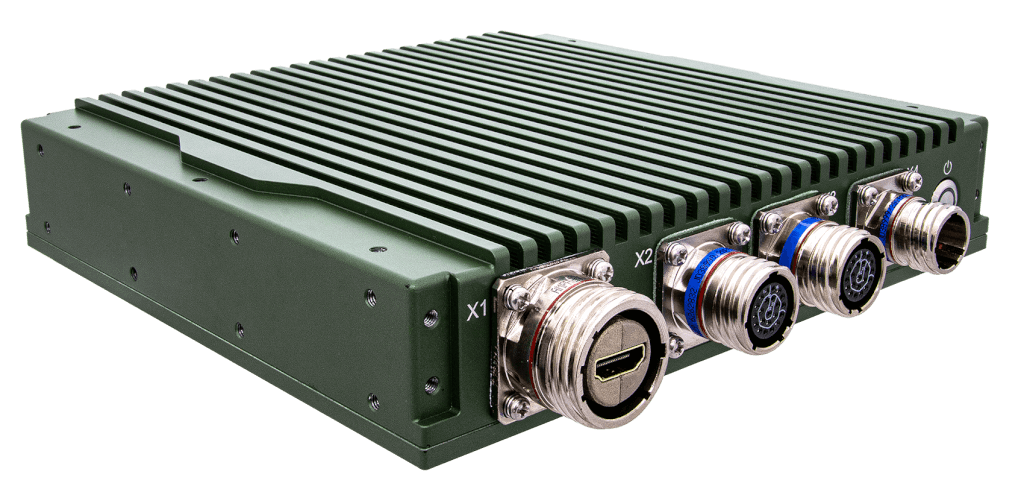

| X1 | HDMI with D38999 connector | |
| X2 | 2 x LAN with D38999 connector | |
| X3 | 2 x USB2.0 +1x RS232/422/485 with D38999 connector | |
| X4 | 9~36V DC-IN with D38999 connector | |
| Button | Water Resistive Power Button with dual-color LED Backlight | |

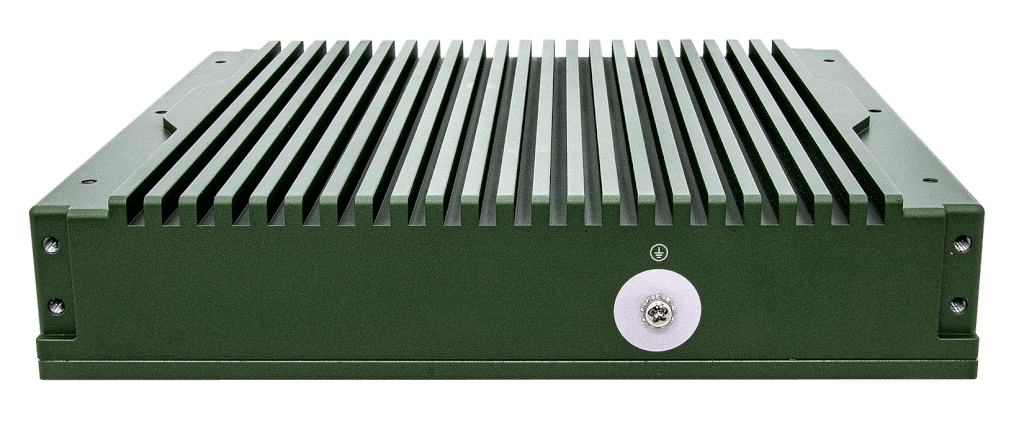

| Ground Screw | 1 | |
| Power Input | 9V to 36V DC-IN support MIL-STD-461 | |
| Power Type | AT/ATX Mode Select by Jumper | |
| Applications | Military Platforms Requiring Compliance to MIL-STD-810 Embedded Computing, Process Control, Intelligent Automation and manufacturing applications where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. |
|
| Dimension (W x D x H) | 220 x 200 x 44 mm | |
| Weight | 2 Kg | |
| Chassis | Aluminum AL6061 | |
| Heatsink | Aluminum Alloy, Corrosion Resistant. | |
| Finish | Anodic aluminum oxide (Color) | |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts. | |
| Ingress Protection | IP65 | |
| EMC | DC-DC 18 to 36V (300W max) MIL-STD 461 | |
| MIL-STD-461 | CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies |
|
| MIL-STD-810 (Compliance) |
Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock). |
|
| Reliability |
No Moving Parts; Passive Cooling. |
|
| EMC | CE and FCC compliance | |
| Green Produc | RoHS, WEEE compliance | |
| Weight | 15Kg (33.06Ibs) | |
| Operating Temp. | -40 to 60°C | |
| Storage Temp. | -40 to 85°C | |
| Relative Humidity | 5% to 95%, non-condensing. | |

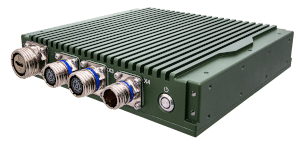

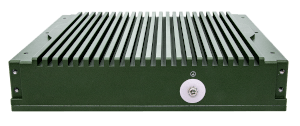

Fotogalerie
