THOR100-X4

1U ½ Size MIL-STD 810/461 Rugged System with Intel® Coffee Lake Xeon E-2276ML Processor, 9V to 36V DC-in, Wide Temp. -40°C to 70°C

Petr Chalupa

Petr Chalupa

Odolné PC, Military, TEMPEST, Doprava +420 251 614 073

Základní informace

  • 19"/2 Rugged Military Server
  • Intel® Coffee Lake Xeon® E-2276ML
  • DDR4 Up to 128GB , NVMe Up to 2TB
  • Military D38999 Connectors Support :  2 x DVI, 3 x  LAN, 3 x USB 3.0, 8xDIO( 4xDI/4xDO)
  • Design for Naval Defense System , withstand 75G rms Shock
  • 9V~36V DC-in, MIL-STD-461 EMI Filter
  • Extended Temperature:-40~+70 Degree

The nature of the military operation and existence is changing due to technology. The performance, reliability, and stability of the application become important, and so is the durability of the application to the operating temperatures, shock, and vibration requirements of challenging environments.

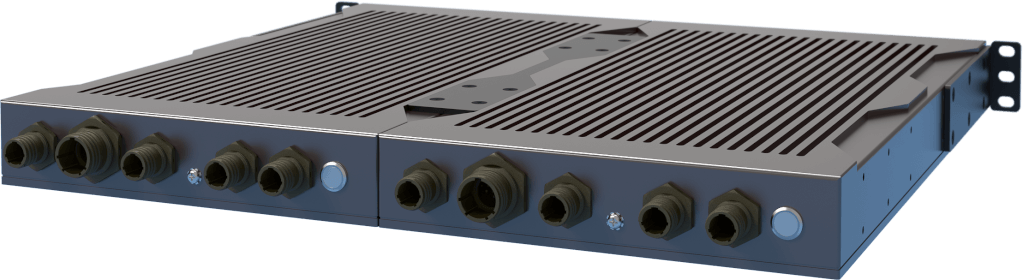

THOR100-X4 – 1U Half Size Rugged Mission MIL-STD 810 Computer is built to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog. The THOR100-X4 equipped Ultra-High Performance Intel® Xeon® E-2276ML is fully qualified IP65 with D38999 connectors which can offer the most powerful performance and ready to handle harsh environments in battle-field, such as sustain 75 g shock in the maritime applications.

In order to satisfy the requirement of Naval System Application and reducing the SWaP, THOR100X-4 is driven by powerful processor, and equipped with high speed serial interconnects 3 x LAN, 1 x DC, 8xDIO( 4xDI/4xDO), 2 x DVI, and 3 x USB3.0. It also withstand extended temperature -40°C to +70°C and wide voltage input 9V~36V with MIL-461 EMI Filter, to make it an ideal solution for Military type rugged applications.

Specifikace

CPU Intel® 9th Gen. Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz)
Graphics Intel® UHD Graphics P630
MEMORY TYPE 4 x DDR4 26666MHz up to 128 GB
STORAGE DEVICE NVMe M.2 up to 2TB
ETHERNET CHIPSET 1 x Intel® I210-IT
1 x Intel® I218-LM
POWER BUTTON Water Resistive Power Button with LED Backlight
FRONT I/O

1 x DC   (Amphenol TV06RW09-98S)
1 x 3 DIO, Mic-In/Line Out (Amphenol TV07RW-13-35SD)
3 x LAN  (Amphenol TV06RW-9-09P)

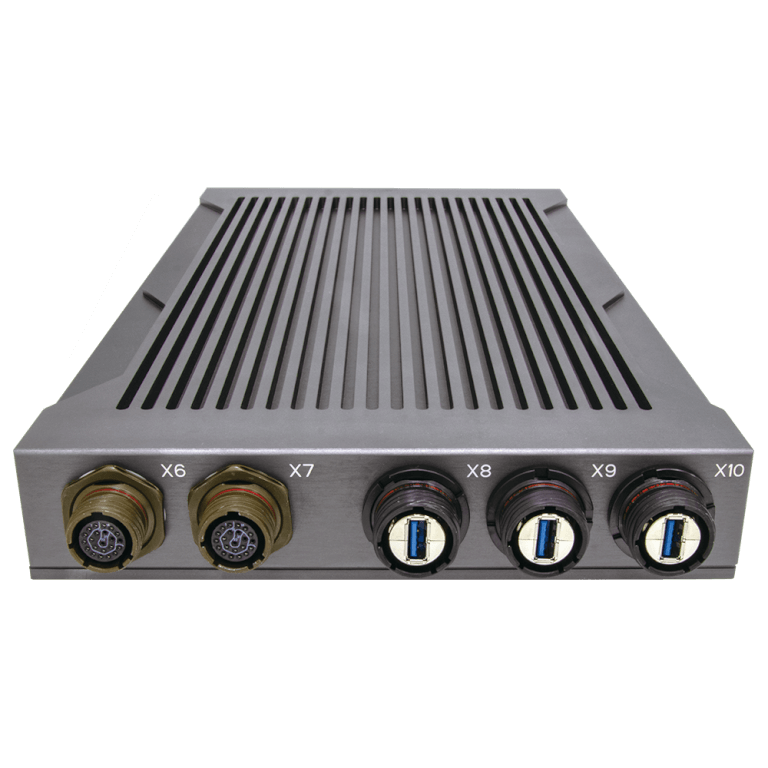

Rear I/O 2x DVI  (Amphenol TV07RW-13-35S)
3 x USB 3.0  (Amphenol USB3FTV7AZNF312)
POWER REQUIREMENT Standard: DC-In 9V~36V,  w/ MIL-461 EMI Filter
DIMENSION 220 x 400 x 44 mm
INGRESS PROTECTION IP65
WEIGHT 5.5 kg
OPERATING TEMP. -40 to 70°C (ambient with air flow)
STORAGE TEMP. -40 to 85°C
RELATIVE HUMIDITY 5% to 95%, non-condensing
Certification

MIL-STD 810
MIL-STD 461
MIL-STD 1275
