THOR100-X3
Video Frame Grabber Computer -1U/half Size, MIL-STD 810, IP65 Rugged System with Intel® Core™ i7-7600U Kaby Lake Processor, Vehicle-based Video Capture Card Support, 9V to 36V DC-in, Wide Temp. -40°C to 70°C
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel® Core™ i7-7600U (2.8 GHz, up to 3.9 GHz,2-cores4 threads)
- 8 video channels to be captured at full D1 size, all at full frame rate (optional)
- 2 x DDR4 up to 32GB
- Amphenol M12 connector applied
- IP65 classify
- Wide range 9V to 36V DC-in
- Extended operating temperature. -40°C to 70°C
THOR100-X3 is driven by Intel 7th generation Kaby Lake i7-7600U processor soldering onboard which is an extremely compact Core I-based fanless rugged system. Kaby Lake processor supports outstanding CPU and graphics performance, providing dual cores 3.9GHz clock speed while consuming low power consumption 7.5W. THOR100-X3 highlight on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP65 protection allow system withstand in any kind of harsh environment. THOR100-X3 supports extended temperature from -40 to 70°C and wide range 9V~36V DC input can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.
Specifikace
| CPU | Intel® Core™ Kaby Lake-U Processor Intel® Core™ i7-7600fU Processor (2C x 2.2/3.1 GHz), 4M Cache (15W) |
| MEMORY TYPE | 2 x DDR4 up to 32 GB |
| EXPANSION SLOT | 1 x mPCIe with mSATA supported |
| STORAGE DEVICE | 1 x 2.5" HDD/SSD tray |
| ETHERNET CHIPSET | 1 x Intel® I210-IT 1 x Intel® I218-LM |
| POWER BUTTON | Water Resistive Power Button with LED Backlight |

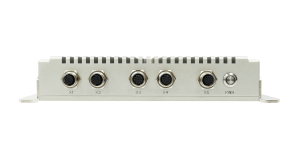

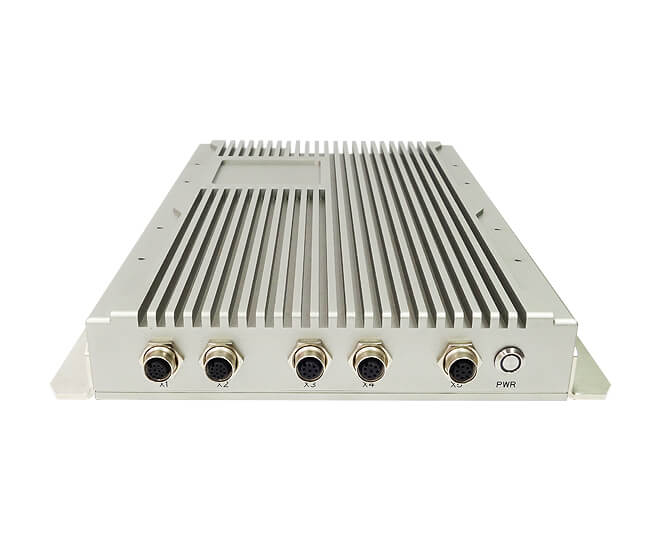

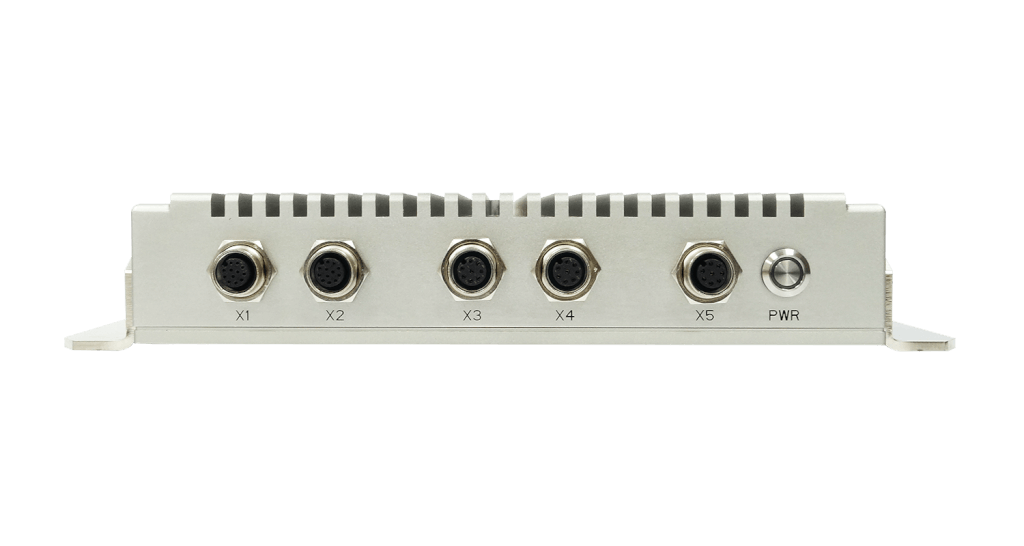

| X1 (COM) | 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001) |
| X2 (VGA) | 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001) |
| X3 (LAN) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |
| X4 (LAN) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |
| X5 (USB 2.0 X2) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |

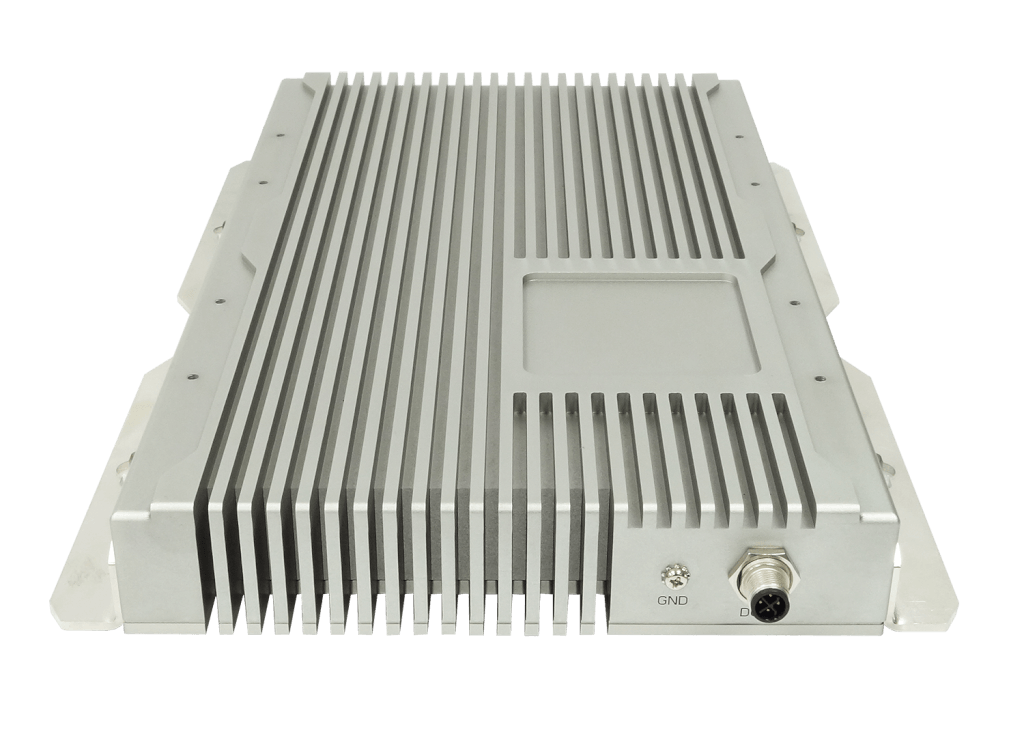

| DC-IN | 4-Pin S-code Male M12 Connector (Amphenol M12S-04PMMS-SF8001) |
| DISPLAY INTERFACE | VGA: M12 connectors; resolution up to 1920 x 1080@60Hz |
| GRAPHICS CONTROLLER | Intel® HD Graphics 6000 |
| WINDOWS | Windows 8 x32/x64, Windows 8.1 x32/x64, Windows 10 x32/x64 |
| LINUX | Fedora 20, Ubuntu 13.04, Ubuntu 13.10, Ubuntu 14.04 |
| POWER REQUIREMENT | 9V to 36V DC-in, AT/ATX mode |
| DIMENSION | 220 x 380 x 44 mm |
| INGRESS PROTECTION | IP65 |
| WEIGHT | 5.5 kg |
| OPERATING TEMP. | -40 to 70°C (ambient with air flow) |
| STORAGE TEMP. | -40 to 85°C |
| RELATIVE HUMIDITY | 5% to 95%, non-condensing |
| MIL-STD-810G TEST | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE and FCC compliance |
| GREEN PRODUCT | RoHS, WEEE compliance |
