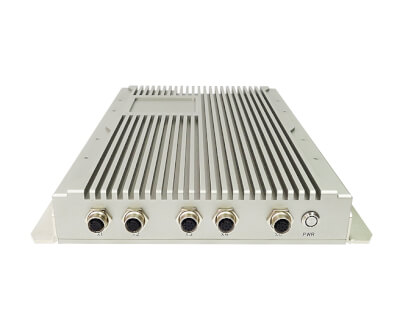

THOR100
MIL-STD IP65 Rugged System with Intel® Core™ i7-5650U Broadwell Processor, 9V to 36V DC-in, Wide Temp. -40 to 70°C
PRODUKT JIŽ NENÍ URČEN K PRODEJI
Základní informace
- Intel® Broadwell BGA i7-5650U (2 cores x 2.2GHz, 15W)
- 2 x DDR3L XR-DIMM up to 16GB
- 64GB Onboard SATAIII SSD
- Amphenol M12 connector applied
- IP65 classify
- Wide range 9V to 36V DC-in
- Extended operating temperature. -40 to 70°C
Specifikace
| CPU | Intel® Core™ Broadwell-U Processor Intel® Core™ i5-5350U Processor (2C x 1.8/2.9 GHz), 3M Cache (15W) Intel® Core™ i7-5650U Processor (2C x 2.2/3.1 GHz), 4M Cache (15W) |
| Memory Type | 2 x XR-DIMM up to 16 GB |
| Expansion Slot | 1 x mPCIe with mSATA supported |
| Storage Device | 1 x 2.5" HDD/SSD tray |
| Ethernet Chipset | 1 x Intel® I210-IT 1 x Intel® I218-LM |
| Power Button | Water Resistive Power Button with LED Backlight |
| X1 (COM) | 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001) |
| X2 (VGA) | 12-Pin A-code Female M12 Connector (Amphenol M12A-12PMMS-SF8001) |
| X3 (LAN) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |
| X4 (LAN) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |
| X5 (USB 2.0 x2) | 8-Pin A-code Female M12 Connector (Amphenol M12S-04BFFB-SL7001) |
| Gound Screw | 1 |
| DC-in | 4-Pin S-code Male M12 Connector (Amphenol M12S-04PMMS-SF8001) |
| Display Interface | VGA interface: 12-pin A-code M12 connectors(female); resolution up to 1920 x 1080@60 Hz |
| Graphics Controller | Intel® HD Graphics 6000 |
| Windows | Windows 7 x32/x64、Windows 8 x32/x64、Windows 8.1 x32/x64、Windows 10 x32/x64 |
| Linux | Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04 |
| Power Requirement | 9V to 36V DC-in, AT/ATX mode |
| Dimension | 220 x 380 x 44 mm |
| Ingress Protection | IP65 |
| Weight | 5.5 kg |
| Operating Temp. | -40 to 70°C (ambient with air flow) |
| Storage Temp. | -40 to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| MIL-STD-810G Test | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC | CE, FCC compliant |
| Green Product | RoHS, WEEE compliance
|
